Foot Shell – Standard Height

• Contains all material specs of Standard Height Foot Shell.
• Only difference is height of the shell: 15 mm shorter.

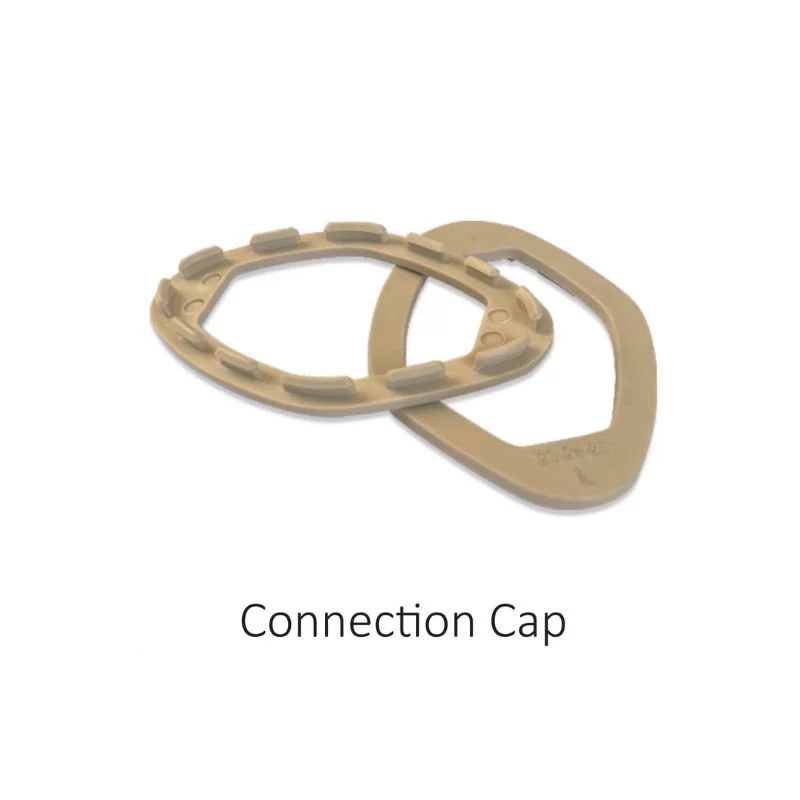

• Connection cap is not available for the Low Height Foot Shells.

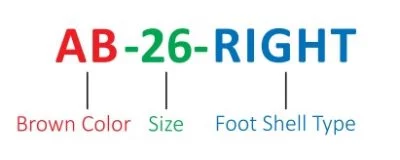

Order Example

Features

• FM-Foot provides smooth gait and cushion feeling to the low and moderate mobility level users.
• FM-Foot has Aluminum adapter, which is lightweight and durable.
• Split-toe design allows the foot to adapt on uneven surfaces.
• PU based heel section, provides damping and cushion.
• Plate of the FM-Foot is made by Carbon Fiber.
• Size 23 to 26 have a weight limit of 100 Kg.
• Size 27 to 28 have a weight limit of 120 Kg.
• Foot Shell is same for all foot types and available in all sizes.
• Foot Shell should be ordered separately by its size and colour.

Data Table

Product Name	FM-Foot
Sizes	23 to 28
Advised Activity Level	K1-K2
Max User Weight	120 Kg
Mean Product Lenght	70 mm
Mean Product Weight	310 Gr
Available Foot Shell Color	Beige & Brown
Weight Limits “23 to 26”	100 Kg
Weight Limits “27 to 28”	120 Kg

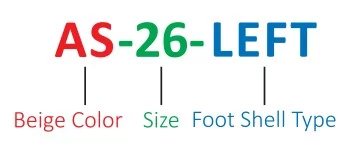

Order Example

Introduction

Winged foot is designed as a multi-functional foot with complete carbon fiber structure. It has two main plates, divided in two parts which allows +/- 10 degrees of inversion and eversion movements of the carbon foot. Also split main plate design of the foot provides +/- 5 degrees of the torsion of the pyramid section. For smoother gait cycle, there is an additional inner carbon plate to comfort during the stance phase, causing the main plate to flex till a particular point easily and prevents further loads.

3D-Printed rings together with carbon fibers

3D-Printed rings allows easily seat and cover for carbon fibers as well as reduces and distributes the stress of heel strike force by its pre-shaped structure and round corners.

Features

• +/- 5 degrees Torsion of Pyramid
• +/- 10 degrees of Inversion and Eversion
• Multi-axial body
• Impact absorbtion by inner Plate
• Wide body with to increase ground stability

Technical Information

Target Users: Moderate impact, K3-K4 level patients Stiffness Categories: 1 to 5 Connector Type: Titanium Male Pyramid Max. Body weight: 120 kg Size range: 23 to 29

Category Selection

Body Weight	Category
65 - 75 kg	CAT-1
75 - 85 kg	CAT-2
85 - 95 kg	CAT-3
95 - 105 kg	CAT-4
105 - 120 kg	CAT-5

Impact Absorption

When load is placed on the toe, main carbon plate twists through C-shaped inner carbon plate. In this case, inner plate behaves like a shock absorber and shares the impact force with main plate. This movement also supports energy return to toe-off phase.

Data Table

Product Name	Winged Foot
Sizes	23 to 29
Advised Activity Level	K3-K4
Max User Weight	120 Kg
Mean Product Lenght	110 mm
Mean Product Weight	390 Gr
Available Foot Shell Color	Beige & Brown

Order Example

Features

• Totally carbon fiber body provides high energy return and smooth gait cycle.
• Additional inner carbon plate “Absorbs” surpluss energy and increases life span of the product.
• “3D-Printed Rings Technology” (Patent Pending) provides “Screw-less” connection of carbon plates at toe section. This provides smooth feeling and gait cycle for the user.
• Pyramid of the product is made by Titanium, lightweight and durable against set-screw pressure.
• Suitable for K3-K4 level users.

• Foot Shell is same for all foot types and available in all sizes.
• Foot Shell should be ordered separately by its size and colour.

Category Selection

Body Weight	Category
65-75 kg	CAT-1
75-85 kg	CAT-2
85-95 kg	CAT-3
95-105 kg	CAT-4
105 - 120 kg	CAT-5

Data Table

Product Name	Supreme Foot
Sizes	24 to 28
Advised Activity Level	K3-K4
Max User Weight	120 Kg
Mean Product Lenght	150 mm
Mean Product Weight	480 Gr
Available Foot Shell Color	Beige & Brown

Order Example
