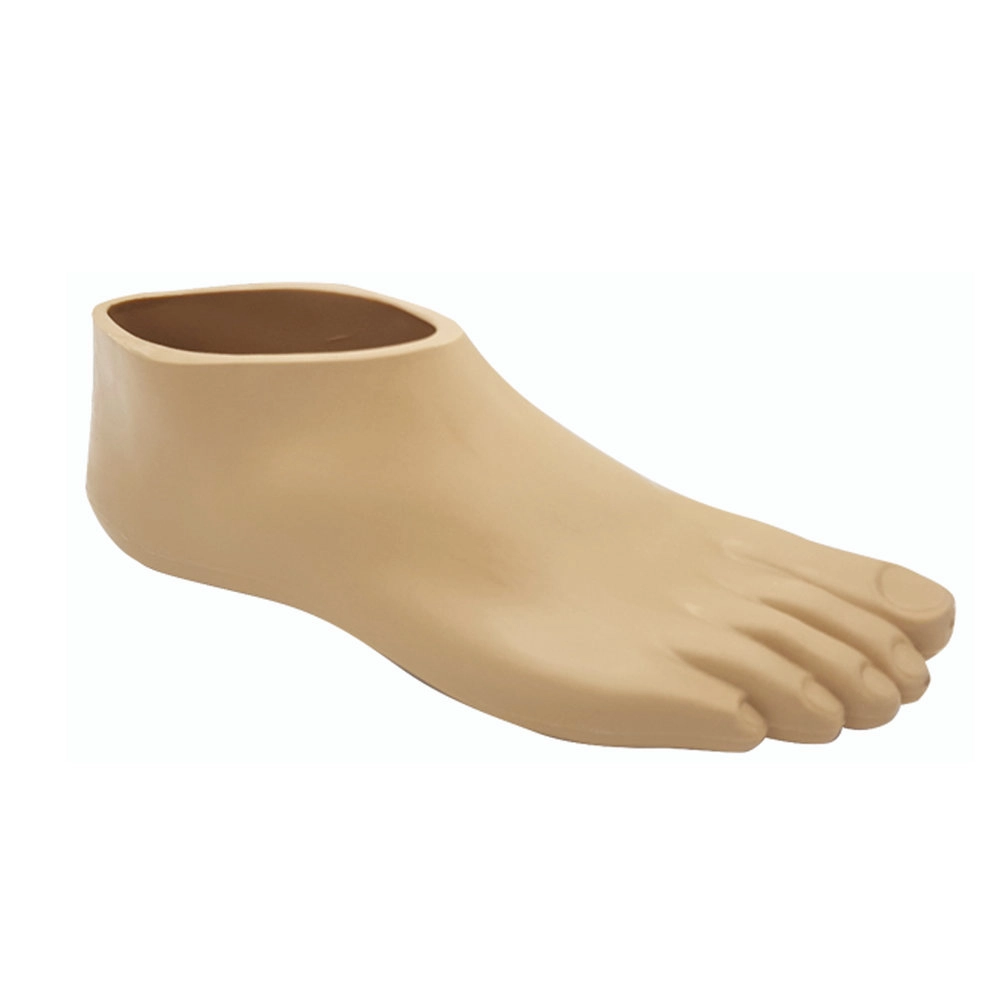

Foot Shell – Low Height

  • Contains all material specs of Standard Height Foot Shell.
  • Only difference is height of the shell: 15 mm shorter.
  • Connection cap is not available for the Low Height Foot Shells.

Order Example

Compare
Add to wishlist
SKU: SKU-110-2-1-1-1-1-2 Category:
Description
Code Foot Size Heel Height Color Side
LAS-23L/R 23 10mm Beige L/R
LAS-24L/R/R 24 10mm Beige L/R
LAS-25L/R 25 10mm Beige L/R
LAS-26L/R 26 10mm Beige L/R
LAS-27L/R 27 10mm Beige L/R
LAS-28L/R 28 10mm Beige L/R
LAS-29L/R 29 10mm Beige L/R
Code Foot Size Heel Height Color Side
LAB-23L/R 23 10mm Brown L/R
LAB-24L/R 24 10mm Brown L/R
LAB-25L/R 25 10mm Brown L/R
LAB-26L/R 26 10mm Brown L/R
LAB-27L/R 27 10mm Brown L/R
LAB-28L/R 28 10mm Brown L/R
LAB-29L/R 29 10mm Brown L/R
Shipping & Delivery

Related products

Compare

Swipe Foot

Features

  • Swipe Foot is a unique carbon foot with a polycentric ankle design.
  • Provides superior dorsiflexion and plantar flexion movements on each step.
  • Each blade of the feet contributes through stance phase by flexing to a point by center of rotation of the polycentric design.
  • Generates further toe-off energy for smooth and effort-free steps.
  • Suitable for K3-K4 level users.
  • Swipe Foot should be used together with low height Foot Shell, please check through the Foot Shell section at the end of the Carbon feet range.
  • Foot Shell should be ordered separately.

Category Selection

Body Weight Category
65 - 75 kg CAT-1
75 - 85 kg CAT-2
85 - 95 kg CAT-3
95 - 105 kg CAT-4

Data Table

Product Name Swipe Foot
Sizes 24 to 28
Advised Activity Level K3-K4
Max User Weight 120 Kg
Mean Product Lenght 120 mm
Mean Product Weight 550 Gr

Order Example

Add to wishlist
Quick view
Compare

Spectra Sock

  • Spectra Sock made by special Fiber Glass material.
  • High wear resistance.
  • Suitable for all kind of carbon feet.

Code Material
S-CF Fiber Glass
Add to wishlist
Quick view
Compare

Supreme Foot

Features

  • Totally carbon fiber body provides high energy return and smooth gait cycle.
  • Additional inner carbon plate “Absorbs” surpluss energy and increases life span of the product.
  • “3D-Printed Rings Technology” (Patent Pending) provides “Screw-less” connection of carbon plates at toe section. This provides smooth feeling and gait cycle for the user.
  • Pyramid of the product is made by Titanium, lightweight and durable against set-screw pressure.
  • Suitable for K3-K4 level users.
  • Foot Shell is same for all foot types and available in all sizes.
  • Foot Shell should be ordered separately by its size and colour.

Category Selection

Body Weight Category
65-75 kg CAT-1
75-85 kg CAT-2
85-95 kg CAT-3
95-105 kg CAT-4
105 - 120 kg CAT-5

Data Table

Product Name Supreme Foot
Sizes 24 to 28
Advised Activity Level K3-K4
Max User Weight 120 Kg
Mean Product Lenght 150 mm
Mean Product Weight 480 Gr
Available Foot Shell Color Beige & Brown

Order Example

Add to wishlist
Quick view
Compare

FM Foot

Features

  • FM-Foot provides smooth gait and cushion feeling to the low and moderate mobility level users.
  • FM-Foot has Aluminum adapter, which is lightweight and durable.
  • Split-toe design allows the foot to adapt on uneven surfaces.
  • PU based heel section, provides damping and cushion.
  • Plate of the FM-Foot is made by Carbon Fiber.
  • Size 23 to 26 have a weight limit of 100 Kg.
  • Size 27 to 28 have a weight limit of 120 Kg.
  • Foot Shell is same for all foot types and available in all sizes.
  • Foot Shell should be ordered separately by its size and colour.

Data Table

Product Name FM-Foot
Sizes 23 to 28
Advised Activity Level K1-K2
Max User Weight 120 Kg
Mean Product Lenght 70 mm
Mean Product Weight 310 Gr
Available Foot Shell Color Beige & Brown
Weight Limits “23 to 26” 100 Kg
Weight Limits “27 to 28” 120 Kg

Order Example

Add to wishlist
Quick view
Compare

Foot Shell Removal Tool

    • A tool for removing the foot from the foot shell.
    • Works with all kind of carbon feet.
    • One end is a hook type bent and the other end is a flat for applying a force.
    • Made by stainless steel for durability and to avoid corrosion in long term.
Code Material
FST Stainless Steel
Add to wishlist
Quick view
Compare

Symes Foot

Features

  • As seen by it's name, this foot mostly focuses on users with Symes amputation.
  • Symes foot has stabile M36 Thread and 4-Prong Socket Adapter to be connected with the socket directly.
  • Symes foot has the same flexiable carbon structure with the Short Foot, provides high energy return and smooth gait cycle.
  • “3D-Printed Rings Technology” has been used, as well as other carbon fiber foots in the product range.
  • Foot Shell is same for all foot types and available in all sizes.
  • Foot Shell should be ordered separately by its size and colour.

Category Selection

Body Weight Category
65-75 kg CAT-1
75-85 kg CAT-2
85-95 kg CAT-3
95-105 kg CAT-4
105 - 120 kg CAT-5

Data Table

Product Name Symes Foot
Size 23 to 29
Advised Activity Level K2-K3
Max User Weight 120 Kg
Mean Product Lenght 50 mm
Mean Product Weight 420 Gr
Available Foot Shell Color Beige & Brown

Order Example

Add to wishlist
Quick view
Compare

Short Foot

Features

  • As seen by it's name, Short profile design is suitable for users with long residual limbs.
  • Even having a Short profile, the foot provides energy return which is considerably high.
  • Short height structure enables to use additional components on top, such as active vacuum adapters and shock absorbers.
  • “3D-Printed Rings Technology” (Patent Pending) provides “Screw-less” connection of carbon plates at toe section. This provides smooth feeling and gait cycle for the user.
  • Suitable for K2-K3 level users.
  • Foot Shell is same for all foot types and available in all sizes.
  • Foot Shell should be ordered separately by its size and colour.

Category Selection

Body Weight Category
65 - 75 kg CAT-1
75 - 85 kg CAT-2
85 - 95 kg CAT-3
95 - 105 kg CAT-4
105 - 120kg CAT-4

Data Table

Product Name Short Foot
Sizes 23 to 29
Advised Activity Level K2-K3
Max User Weight 120 Kg
Mean Product Lenght 50 mm
Mean Product Weight 350 Gr
Available Foot Shell Color Beige & Brown

Order Example

Add to wishlist
Quick view
Compare

VACX Foot

Features

  • VACX is a carbon fiber foot which has been developed based on the Winged Foot Structure.
  • “Active Vacuum Unit” of the VAC-100 product has been placed on the Winged Foot to generate an elevated vacuum inside of the socket.
  • Generated vacuum occurs between user's liner and the socket to prevent pistoning movement and grip the stump firmly
  • This system cancels out the need of using locks and silicone liners with the pin system.
  • Absorbs high reaction forces of the ground and creates vacuum on each step.
  • Totally Multi-axial body, allows 10 degrees of Inversion Eversion
  • VACX Foot should be used together with low height Foot Shell, please check through the Foot Shell section at the end of the Carbon feet range.
  • Foot Shell should be ordered separately.

Vacuuming the Socket

The socket should be sealed with sleeves to create vacuum-able environment inside. Once the environment is sealed, which is compressed and released during the walking, the vacuum unit draws air from the socket through the one-way valve and evacuates it through the pump. After multiple steps of the user, 15 in. Hg (around 0.5 bar) vacuum is created in the sealed socket

Category Selection

Body Weight Category
65 - 75 kg CAT-1
75 - 85 kg CAT-2
85 - 95 kg CAT-3
95 - 105 kg CAT-4

Data Table

Product Name VACX Foot
Sizes 23 to 28
Advised Activity Level K3-K4
Max User Weight 105 Kg
Mean Product Lenght 160 mm
Mean Product Weight 740 Gr
