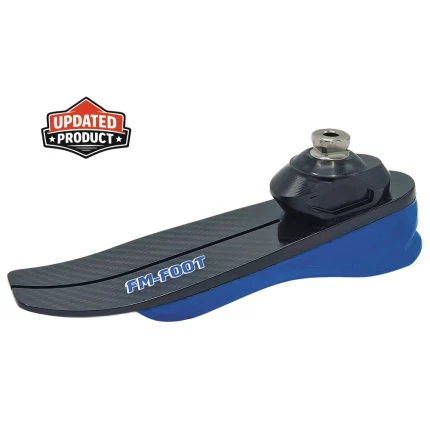

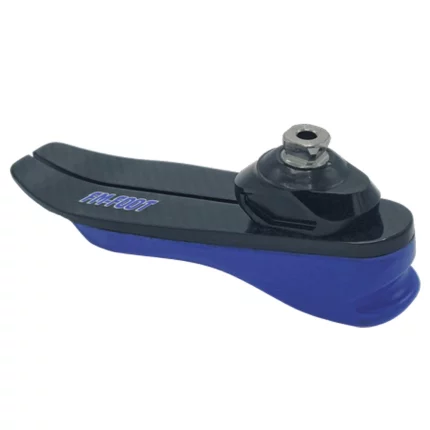

FM Foot
Features
- FM-Foot provides smooth gait and cushion feeling to the low and moderate mobility level users.
- FM-Foot has Aluminum adapter, which is lightweight and durable.
- Split-toe design allows the foot to adapt on uneven surfaces.
- PU based heel section, provides damping and cushion.
- Plate of the FM-Foot is made by Carbon Fiber.
- Size 23 to 26 have a weight limit of 100 Kg.
- Size 27 to 28 have a weight limit of 120 Kg.

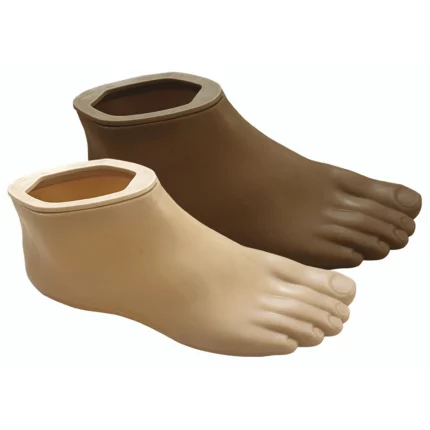

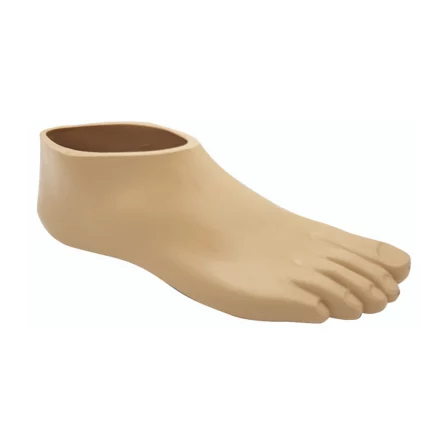

- Foot Shell is same for all foot types and available in all sizes.
- Foot Shell should be ordered separately by its size and colour.
Data Table
| Product Name | FM-Foot |
| Sizes | 23 to 28 |
| Advised Activity Level | K1-K2 |
| Max User Weight | 120 Kg |
| Mean Product Lenght | 70 mm |
| Mean Product Weight | 310 Gr |
| Available Foot Shell Color | Beige & Brown |
| Weight Limits “23 to 26” | 100 Kg |
| Weight Limits “27 to 28” | 120 Kg |
Order Example

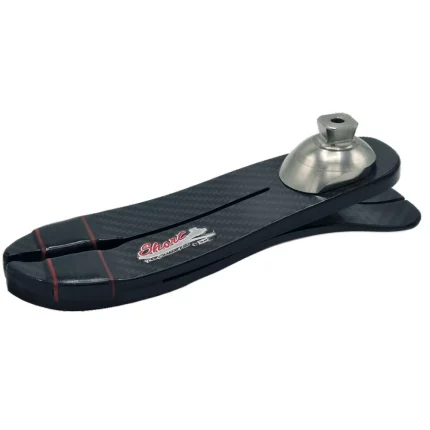

Short Foot
Features
- As seen by it's name, Short profile design is suitable for users with long residual limbs.
- Even having a Short profile, the foot provides energy return which is considerably high.
- Short height structure enables to use additional components on top, such as active vacuum adapters and shock absorbers.

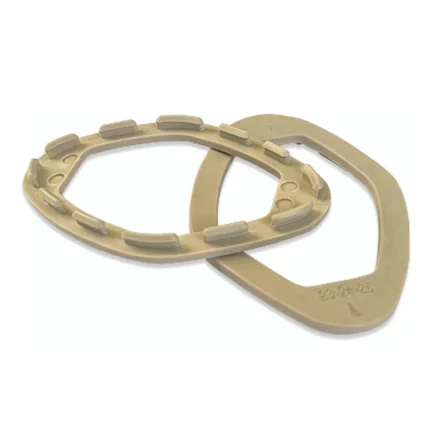

- “3D-Printed Rings Technology” (Patent Pending) provides “Screw-less” connection of carbon plates at toe section. This provides smooth feeling and gait cycle for the user.
- Suitable for K2-K3 level users.
- Foot Shell is same for all foot types and available in all sizes.
- Foot Shell should be ordered separately by its size and colour.
Category Selection
| Body Weight | Category |
| 65 - 75 kg | CAT-1 |
| 75 - 85 kg | CAT-2 |
| 85 - 95 kg | CAT-3 |
| 95 - 105 kg | CAT-4 |
| 105 - 120kg | CAT-4 |
Data Table
| Product Name | Short Foot |
| Sizes | 23 to 29 |
| Advised Activity Level | K2-K3 |
| Max User Weight | 120 Kg |
| Mean Product Lenght | 50 mm |
| Mean Product Weight | 350 Gr |
| Available Foot Shell Color | Beige & Brown |
Order Example

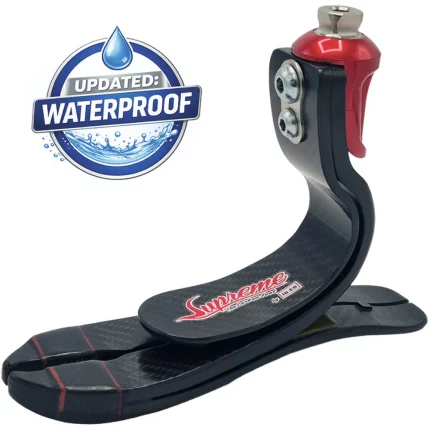

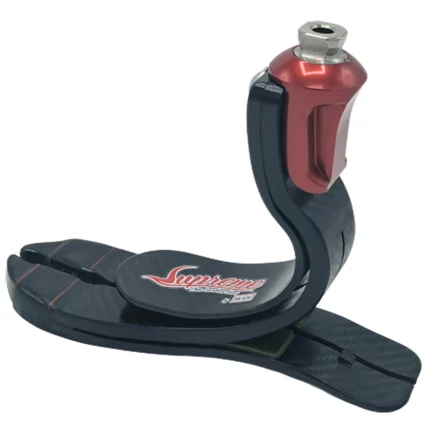

Supreme Foot
Features
- Totally carbon fiber body provides high energy return and smooth gait cycle.
- Additional inner carbon plate “Absorbs” surpluss energy and increases life span of the product.
- “3D-Printed Rings Technology” (Patent Pending) provides “Screw-less” connection of carbon plates at toe section. This provides smooth feeling and gait cycle for the user.
- Pyramid of the product is made by Titanium, lightweight and durable against set-screw pressure.
- Suitable for K3-K4 level users.
- Foot Shell is same for all foot types and available in all sizes.
- Foot Shell should be ordered separately by its size and colour.
Category Selection
| Body Weight | Category |
| 65-75 kg | CAT-1 |
| 75-85 kg | CAT-2 |
| 85-95 kg | CAT-3 |
| 95-105 kg | CAT-4 |
| 105 - 120 kg | CAT-5 |
Data Table
| Product Name | Supreme Foot |
| Sizes | 24 to 28 |
| Advised Activity Level | K3-K4 |
| Max User Weight | 120 Kg |
| Mean Product Lenght | 150 mm |
| Mean Product Weight | 480 Gr |
| Available Foot Shell Color | Beige & Brown |
Order Example

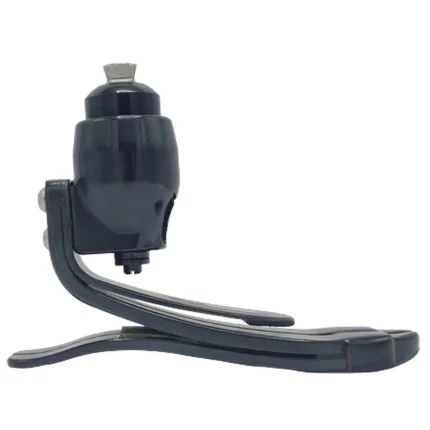

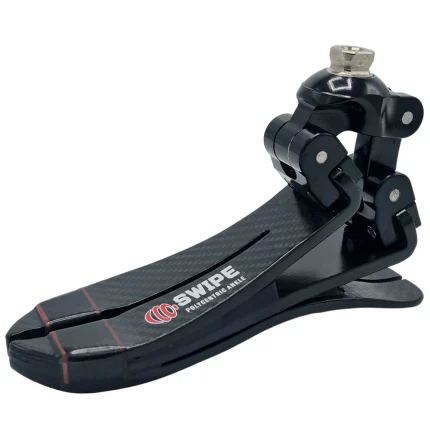

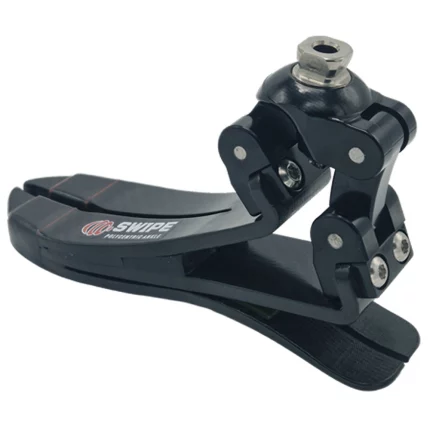

Swipe Foot
Features
- Swipe Foot is a unique carbon foot with a polycentric ankle design.
- Provides superior dorsiflexion and plantar flexion movements on each step.
- Each blade of the feet contributes through stance phase by flexing to a point by center of rotation of the polycentric design.
- Generates further toe-off energy for smooth and effort-free steps.
- Suitable for K3-K4 level users.
- Swipe Foot should be used together with low height Foot Shell, please check through the Foot Shell section at the end of the Carbon feet range.
- Foot Shell should be ordered separately.
Category Selection
| Body Weight | Category |
| 65 - 75 kg | CAT-1 |
| 75 - 85 kg | CAT-2 |
| 85 - 95 kg | CAT-3 |
| 95 - 105 kg | CAT-4 |
Data Table
| Product Name | Swipe Foot |
| Sizes | 24 to 28 |
| Advised Activity Level | K3-K4 |
| Max User Weight | 120 Kg |
| Mean Product Lenght | 120 mm |
| Mean Product Weight | 550 Gr |
Order Example

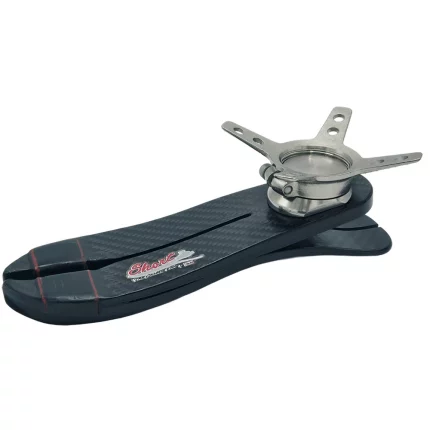

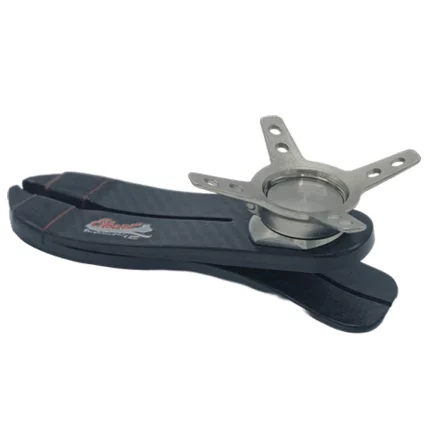

Symes Foot
Features
- As seen by it's name, this foot mostly focuses on users with Symes amputation.
- Symes foot has stabile M36 Thread and 4-Prong Socket Adapter to be connected with the socket directly.
- Symes foot has the same flexiable carbon structure with the Short Foot, provides high energy return and smooth gait cycle.
- “3D-Printed Rings Technology” has been used, as well as other carbon fiber foots in the product range.
- Foot Shell is same for all foot types and available in all sizes.
- Foot Shell should be ordered separately by its size and colour.
Category Selection
| Body Weight | Category |
| 65-75 kg | CAT-1 |
| 75-85 kg | CAT-2 |
| 85-95 kg | CAT-3 |
| 95-105 kg | CAT-4 |
| 105 - 120 kg | CAT-5 |
Data Table
| Product Name | Symes Foot |
| Size | 23 to 29 |
| Advised Activity Level | K2-K3 |
| Max User Weight | 120 Kg |
| Mean Product Lenght | 50 mm |
| Mean Product Weight | 420 Gr |
| Available Foot Shell Color | Beige & Brown |
Order Example

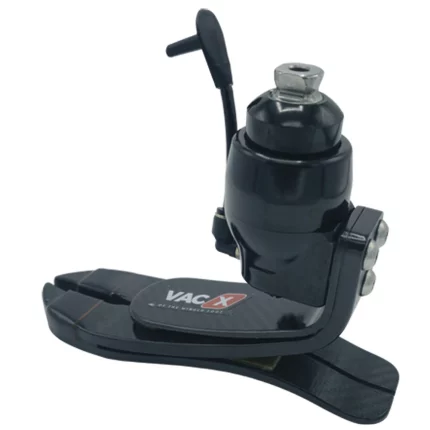

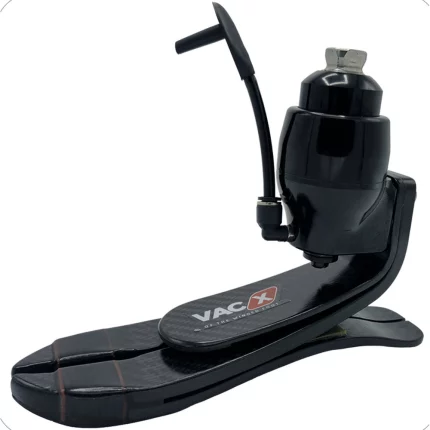

VACX Foot
Features
- VACX is a carbon fiber foot which has been developed based on the Winged Foot Structure.
- “Active Vacuum Unit” of the VAC-100 product has been placed on the Winged Foot to generate an elevated vacuum inside of the socket.
- Generated vacuum occurs between user's liner and the socket to prevent pistoning movement and grip the stump firmly
- This system cancels out the need of using locks and silicone liners with the pin system.
- Absorbs high reaction forces of the ground and creates vacuum on each step.
- Totally Multi-axial body, allows 10 degrees of Inversion Eversion
- VACX Foot should be used together with low height Foot Shell, please check through the Foot Shell section at the end of the Carbon feet range.
- Foot Shell should be ordered separately.
Vacuuming the Socket

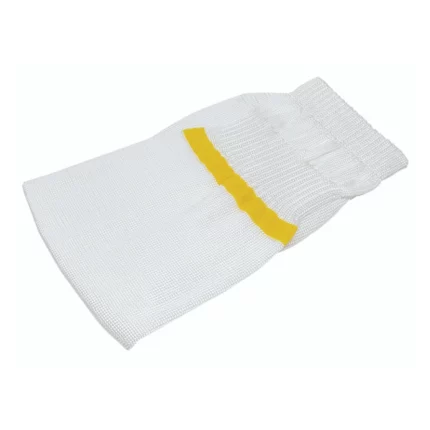

The socket should be sealed with sleeves to create vacuum-able environment inside. Once the environment is sealed, which is compressed and released during the walking, the vacuum unit draws air from the socket through the one-way valve and evacuates it through the pump. After multiple steps of the user, 15 in. Hg (around 0.5 bar) vacuum is created in the sealed socketCategory Selection
| Body Weight | Category |
| 65 - 75 kg | CAT-1 |
| 75 - 85 kg | CAT-2 |
| 85 - 95 kg | CAT-3 |
| 95 - 105 kg | CAT-4 |
Data Table
| Product Name | VACX Foot |
| Sizes | 23 to 28 |
| Advised Activity Level | K3-K4 |
| Max User Weight | 105 Kg |
| Mean Product Lenght | 160 mm |
| Mean Product Weight | 740 Gr |
Order Example

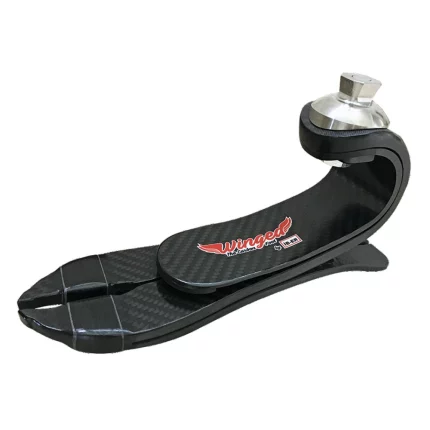

Winged Foot
Introduction
Winged foot is designed as a multi-functional foot with complete carbon fiber structure. It has two main plates, divided in two parts which allows +/- 10 degrees of inversion and eversion movements of the carbon foot. Also split main plate design of the foot provides +/- 5 degrees of the torsion of the pyramid section. For smoother gait cycle, there is an additional inner carbon plate to comfort during the stance phase, causing the main plate to flex till a particular point easily and prevents further loads.3D-Printed rings together with carbon fibers
3D-Printed rings allows easily seat and cover for carbon fibers as well as reduces and distributes the stress of heel strike force by its pre-shaped structure and round corners.Features
- +/- 5 degrees Torsion of Pyramid
- +/- 10 degrees of Inversion and Eversion
- Multi-axial body
- Impact absorbtion by inner Plate
- Wide body with to increase ground stability
Technical Information
Target Users: Moderate impact, K3-K4 level patients Stiffness Categories: 1 to 5 Connector Type: Titanium Male Pyramid Max. Body weight: 120 kg Size range: 23 to 29
Category Selection
| Body Weight | Category |
| 65 - 75 kg | CAT-1 |
| 75 - 85 kg | CAT-2 |
| 85 - 95 kg | CAT-3 |
| 95 - 105 kg | CAT-4 |
| 105 - 120 kg | CAT-5 |
Impact Absorption
When load is placed on the toe, main carbon plate twists through C-shaped inner carbon plate. In this case, inner plate behaves like a shock absorber and shares the impact force with main plate. This movement also supports energy return to toe-off phase.Data Table
| Product Name | Winged Foot |
| Sizes | 23 to 29 |
| Advised Activity Level | K3-K4 |
| Max User Weight | 120 Kg |
| Mean Product Lenght | 110 mm |
| Mean Product Weight | 390 Gr |
| Available Foot Shell Color | Beige & Brown |
Order Example
