Home Prosthetic Foot & Modular Adapters Aluminum Tubes
Type-30 | Ankle Joint
Back to products
Disarticulation Knee W/Manuel Lock

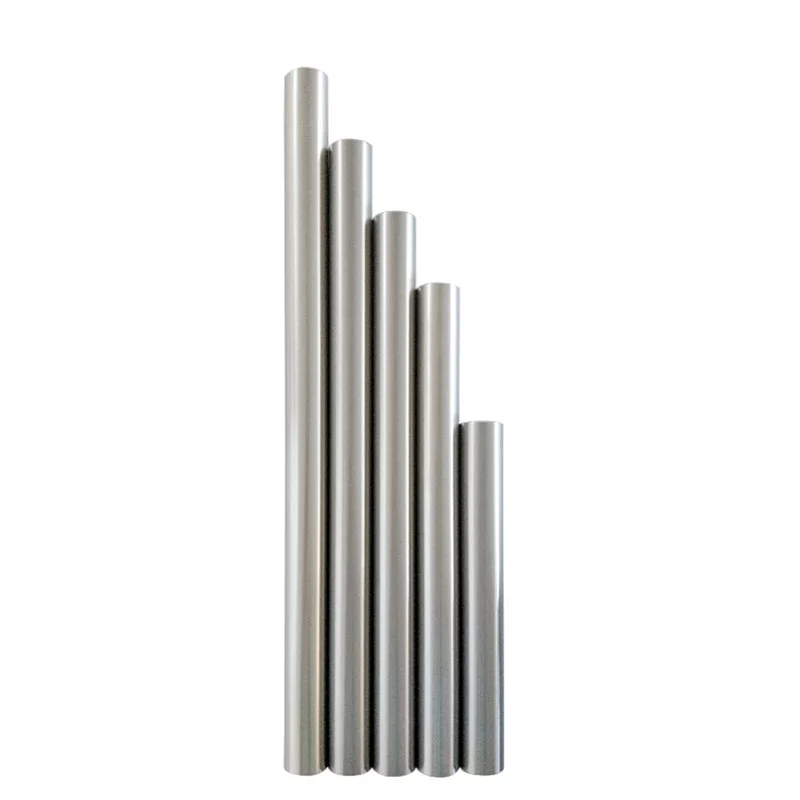

Aluminum Tubes

  • Available weight limits: 125 kg, 134 kg
  • Available Lenghts: 350 mm, 400 mm, 450 mm, 500 mm
Compare
Add to wishlist
SKU: SKU-110-2-1-1-1-2-4-1-1-1-1-1-1-1-1-1-1-1 Category: Prosthetic Foot & Modular Adapters
Share:
  • Description
  • Shipping & Delivery
Description
 Code  Material Weight Weight Limit  Diameter
Al350 Al-tube 350mm 162 gr 125 kg 30×2,5
Al400 Al-tube 400mm 186 gr 125 kg  30×2,5
Al450 Al-tube 450mm 210 gr 125 kg  30×2,5
Al500 Al-tube 500mm 232 gr 125 kg  30×2,5
Al400-Dia34 Al-tube 400mm  230 gr 134 kg  34×2
Al250-Dia34 Al-tube 250mm  155 gr 134 kg  34×2
Shipping & Delivery
