Double Adapter Pyramid/Receiver

Socket Attachment Blocks

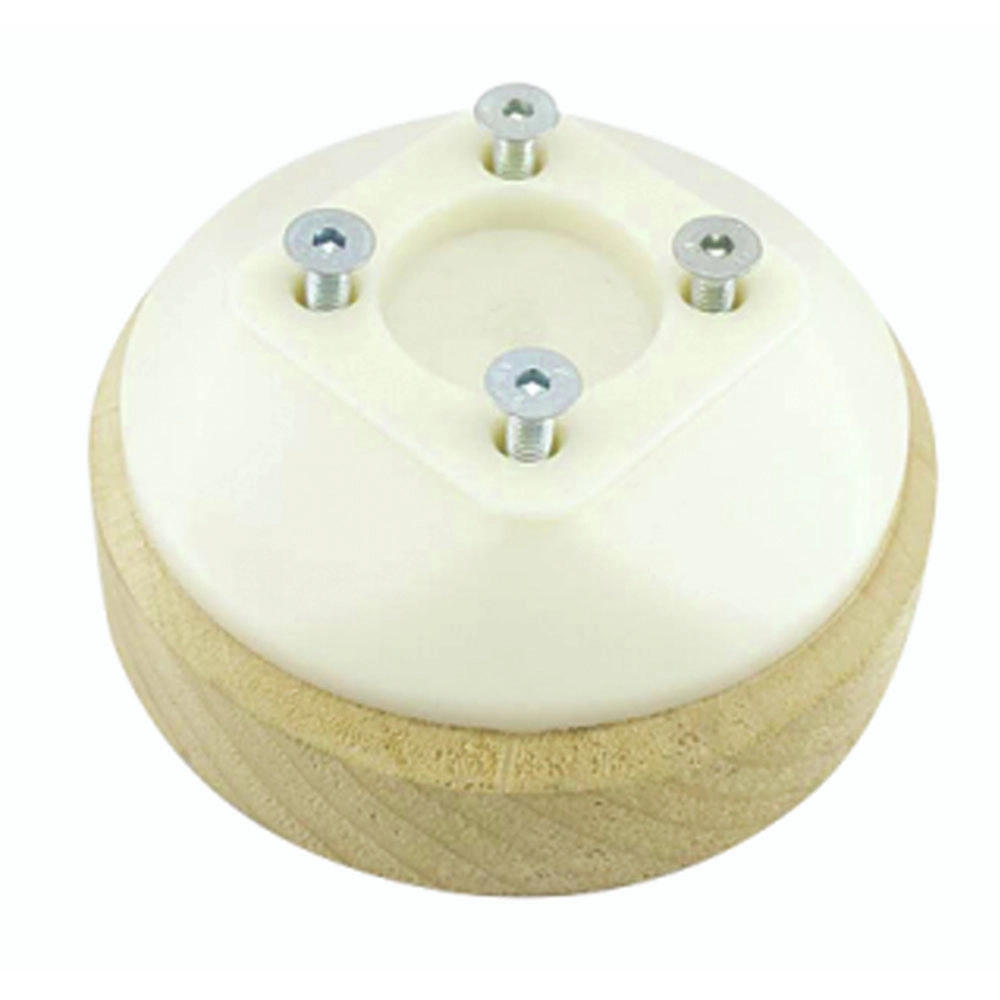

  • The socket aO achment blocks are bonded to the distal end of the prosthetic socket and then laminated together with it. They serve to connect the prosthetic socket to a socket adapter.

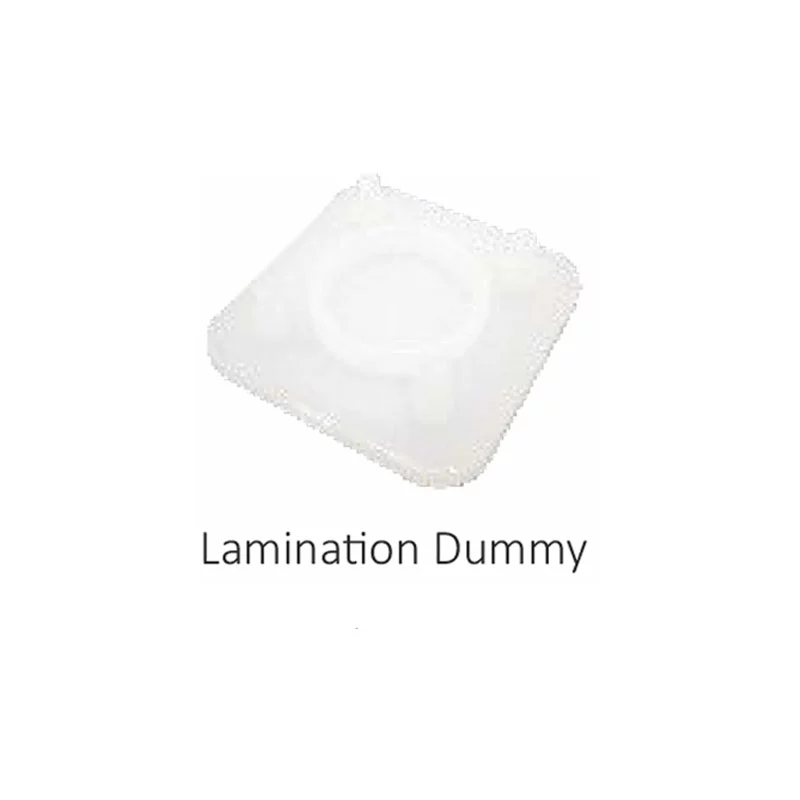

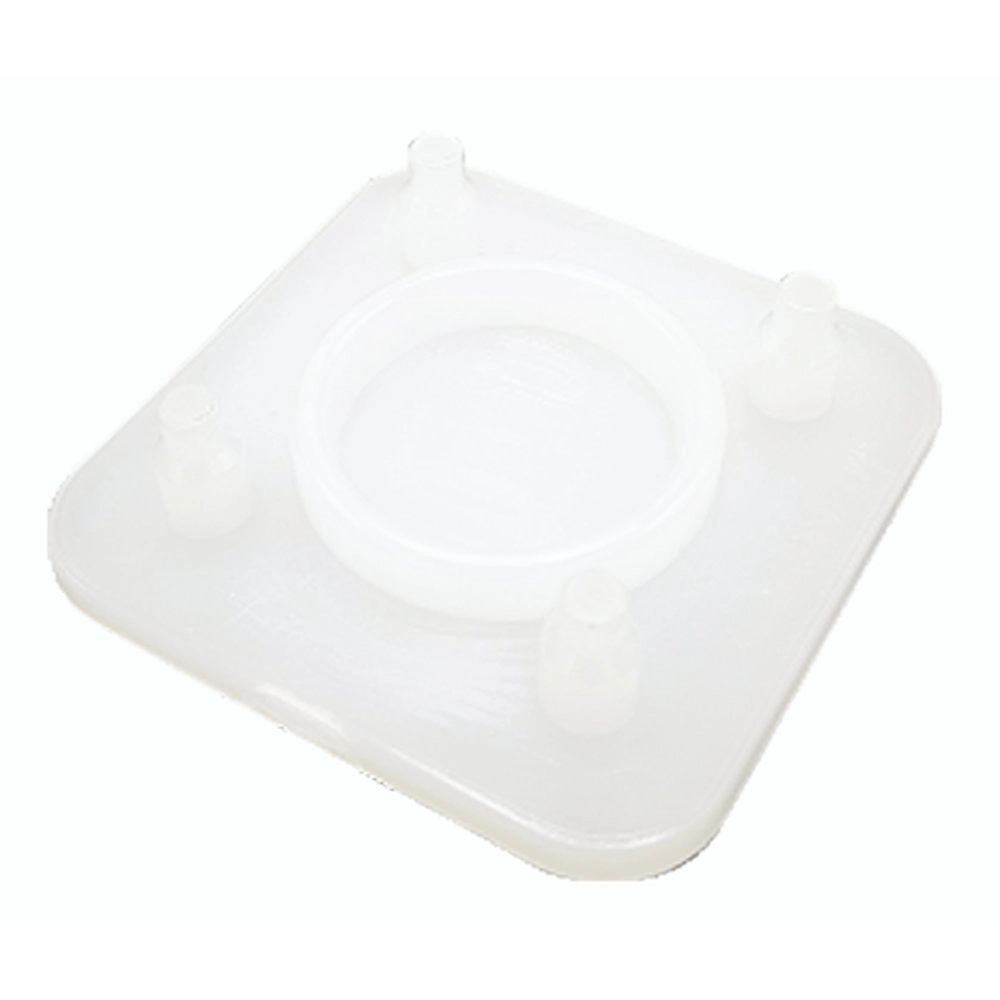

  • E 20 Socket AB achment blocks contains “Laminaon Dummy” in the package.
Compare
Add to wishlist
SKU: SKU-110-2-1-1-1-2-4-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1 Category: Prosthetic Foot & Modular Adapters
Share:
  • Description
  • Shipping & Delivery
Description
 Code  Material Weight Weight Limit

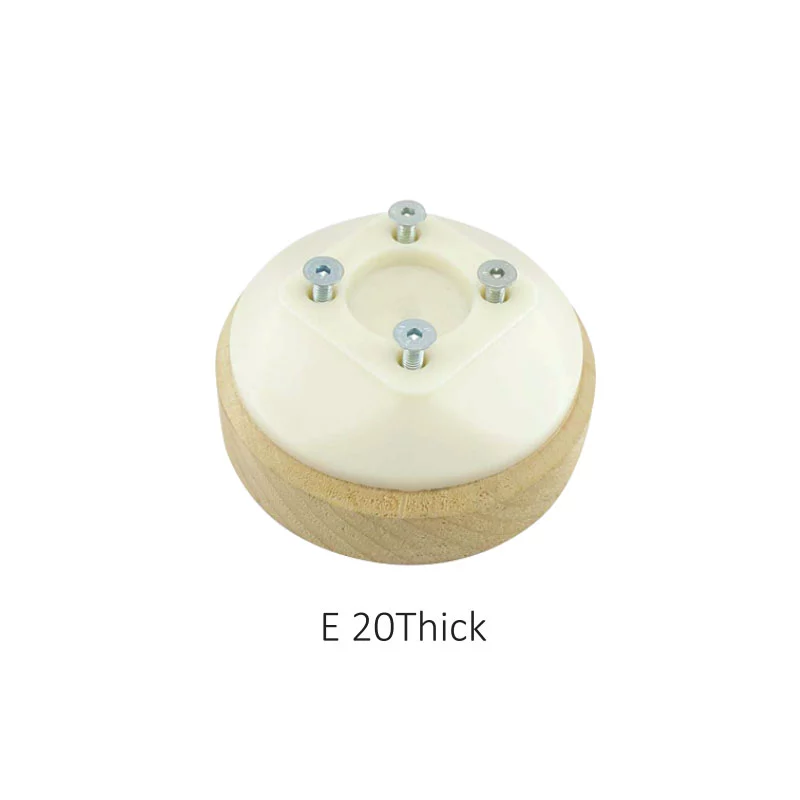

E 20Thick Plastik/wood 335 gr 125 kg
E 20Thin Plastik/wood 207 gr 125 kg
Shipping & Delivery
