Home Prosthetic Foot & Modular Adapters Modular Single Axis Foot Accessory ( E 61 Cup)
Socket Adapter with Adjustment Screws for Children
Back to products
Sach Foot Accessory

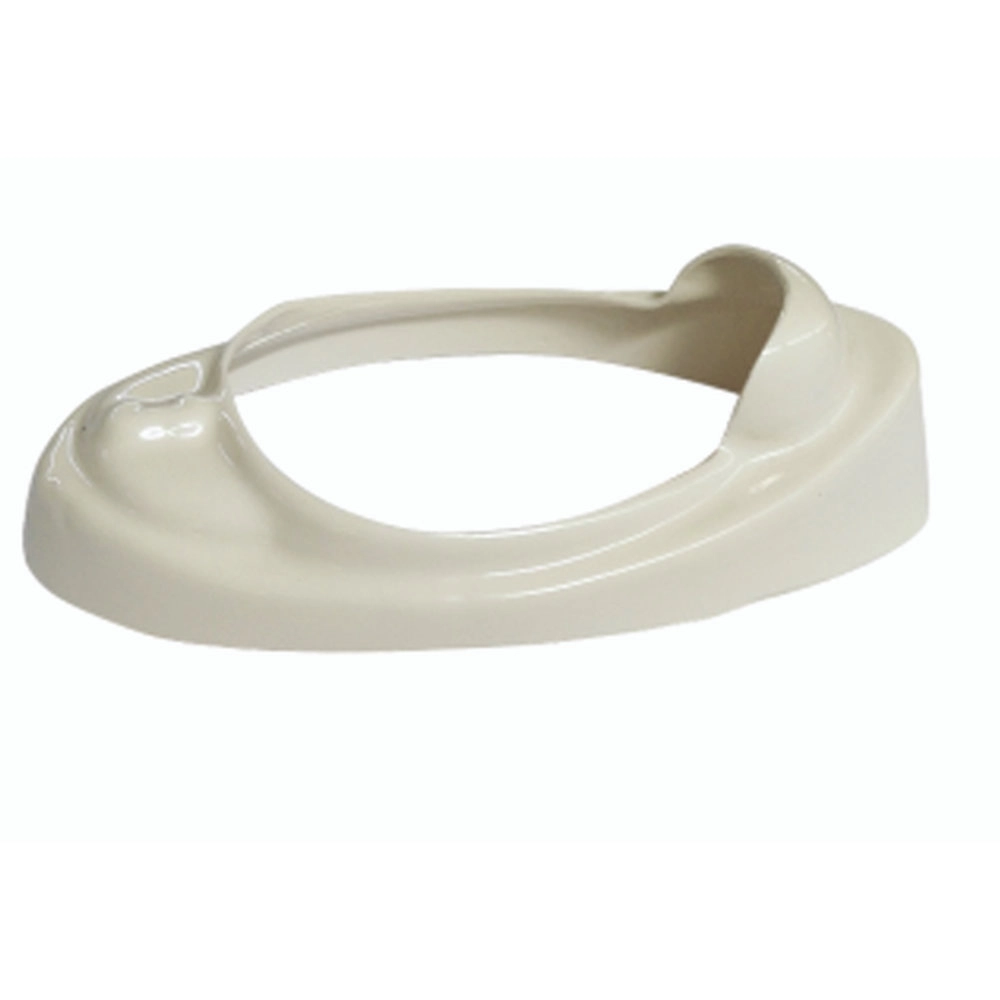

Modular Single Axis Foot Accessory ( E 61 Cup)

  • Made of Plastics
  • Used with single axis foot adapter
Compare
Add to wishlist
SKU: SKU-110-2-1-1-2-1-1-1-1 Category: Prosthetic Foot & Modular Adapters
Share:
  • Description
  • Shipping & Delivery
Description
Code Size Material
E 61cup-22 22 cm plastic
E 61cup-23 23 cm plastic
E 61cup-24 24 cm plastic
E 61cup-25 25 cm plastic
E 61cup-26 26 cm plastic
E 61cup-27 27 cm plastic
E 61cup-28 28 cm plastic
Shipping & Delivery

Related products

Compare

Rotatable Receivers

Prosthetic Foot & Modular Adapters
  • The pyramid receiver with threaded connector is avaible as an individual component of lamination anchor
Add to wishlist
Quick view
Compare

Metalic Attachment Blocks

Prosthetic Foot & Modular Adapters
  • Available diameters for Product; 66-78-88
  • The Modular Adapter is suitable for transtibial [below-knee] and transfemoral (above-knee) prostheses. It is used to create a detachable connection between thermoplastic sockets or frames and the Modular System components.
 Code  Material Weight Weight Limit
E 90 Sanis Stainless Steel 98 gr 100 kg
E 91-66 Aluminum 123 gr 100 kg
E 91-78 Aluminum 138 gr 100 kg
E 91-88 Aluminum 180 gr 100 kg
Add to wishlist
Quick view
Compare

5 mm Offset – Tube Adapter

Prosthetic Foot & Modular Adapters
  • There is a 5 mm offset between tube center and pyramid receiver sections
Add to wishlist
Quick view
Compare

8 Screw Double Adapter

Prosthetic Foot & Modular Adapters
  • Double adapters have pyramid adjustment cores on both sides.
  • M8 adjustment screws are zinc-coated.
  • Under the certain demand, titanium versions can be converted to the Waterproof product with water discharge channels and A2 Stainless Steel set screws.
  • Dual adapter is available in different sizes
Add to wishlist
Quick view
Compare

Rotatable Pyramids

Prosthetic Foot & Modular Adapters
  • The pyramid with threaded connector is avaible as an individual component of lamination anchor.
Add to wishlist
Quick view
Compare

Diameter 34 Tube Clamp Adapters

Prosthetic Foot & Modular Adapters
  • Tube clamp adapters for Dia. 34 mm Tubes.
  • M8 Set-Screws are zinc-coated
  • Weight limits are 134 Kg.
Add to wishlist
Quick view
Compare

Special Tube Clamp Adapters

Prosthetic Foot & Modular Adapters
  • Short type tube clamp adapters with the height of 40 mm.
  • Feature: Mounting height is 14 mm.
  • For the tubes of Dia. 30 mm.
  • M8 Set-Screws are zinc-coated
Add to wishlist
Quick view
Compare

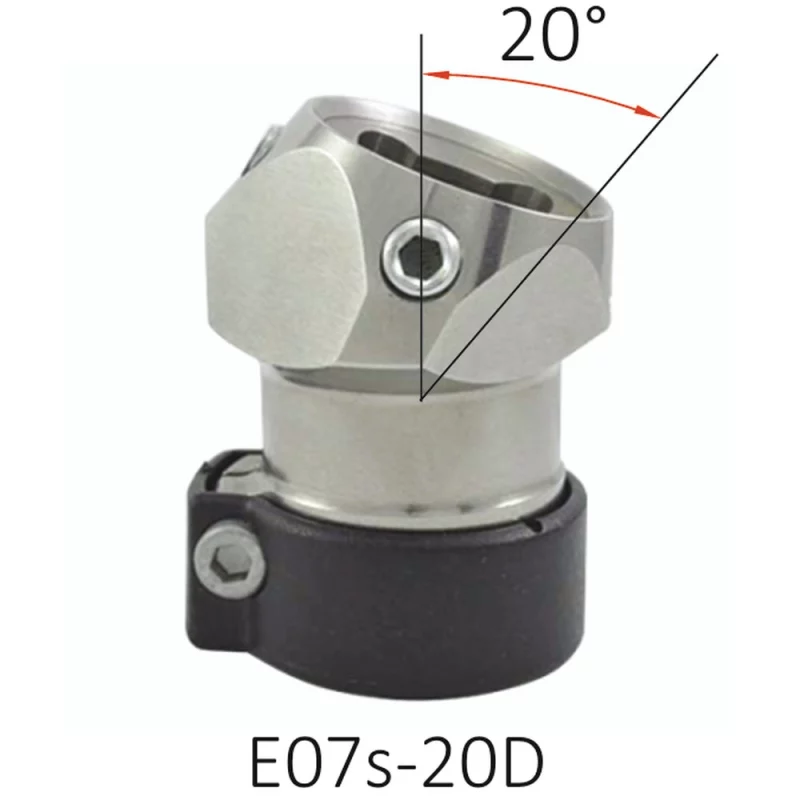

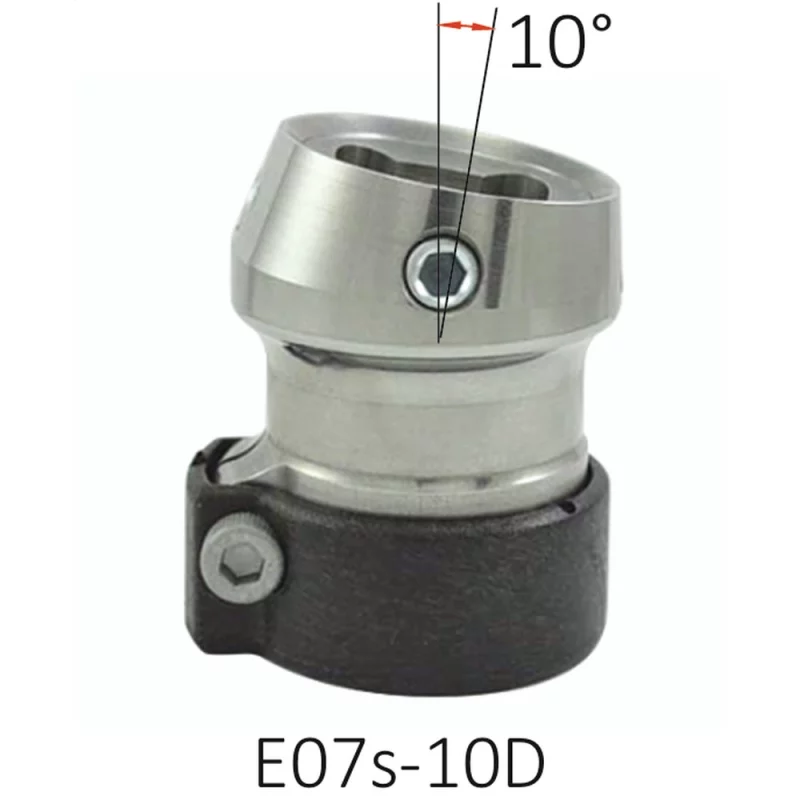

Angled Tube Clamp Adapters

Prosthetic Foot & Modular Adapters
  • There is a 5 mm offset between tube center and pyramid receiver secons
Add to wishlist
Quick view
