Eccentric 4 Hole Adapter Axial /Diagonal

  • The eccentric arrangement of the pyramid offers a sliding adjustment of the prosthetic socket
Compare
Add to wishlist
SKU: SKU-110-2-1-1-1-2-4-1-1-1-1 Category: Prosthetic Foot & Modular Adapters
Share:
  • Description
  • Shipping & Delivery
Description



 Code  Material Weight Weight Limit

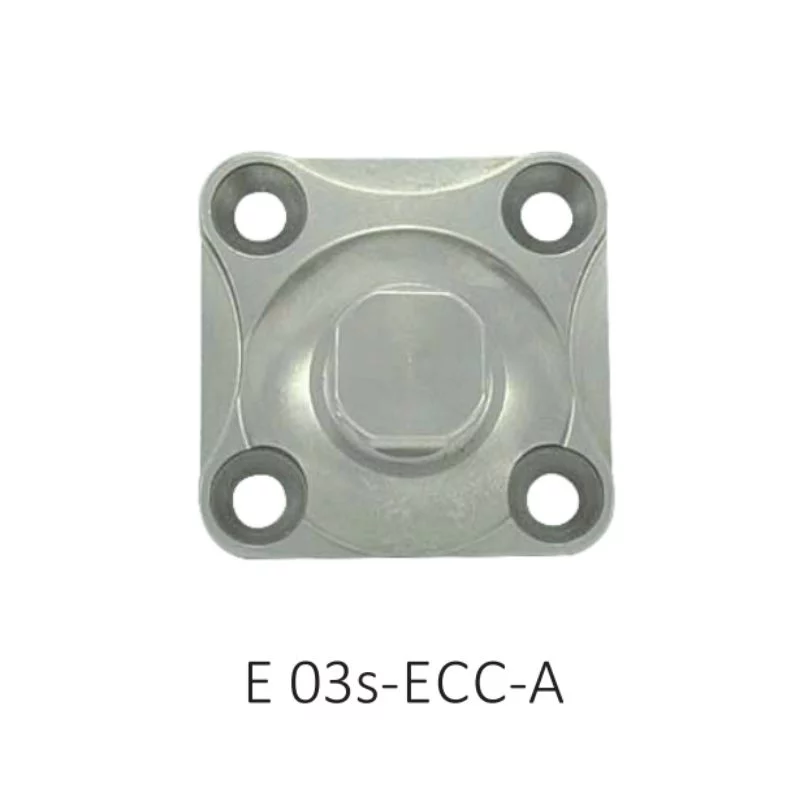

E 03s-ECC-A Stainless Steel 105 gr 125 kg
E 03T-ECC-A Titanium 62 gr 125 kg
  • Axially offset by 5 mm.
 Code  Material Weight Weight Limit
E 03s-ECC-D Stainless Steel 110 gr 125 kg
E 03T-ECC-D Titanium 62 gr 125 kg
  • Diagonal offset by 5 mm.
