Home Prosthetic Foot & Modular Adapters Socket Adapters
Fixed Pyramid Socket Adapters
Back to products
Tube Adapter W/Receiver

Socket Adapters

  • Lamination anchors are laminated into a prosthetic socket. They serve to connect the prosthetic socket to the distal prosthetic component.
Compare
Add to wishlist
SKU: SKU-110-2-1-1-1-2-4-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1 Category: Prosthetic Foot & Modular Adapters
Share:
  • Description
  • Shipping & Delivery
Description
 Code  Material Weight Weight Limit

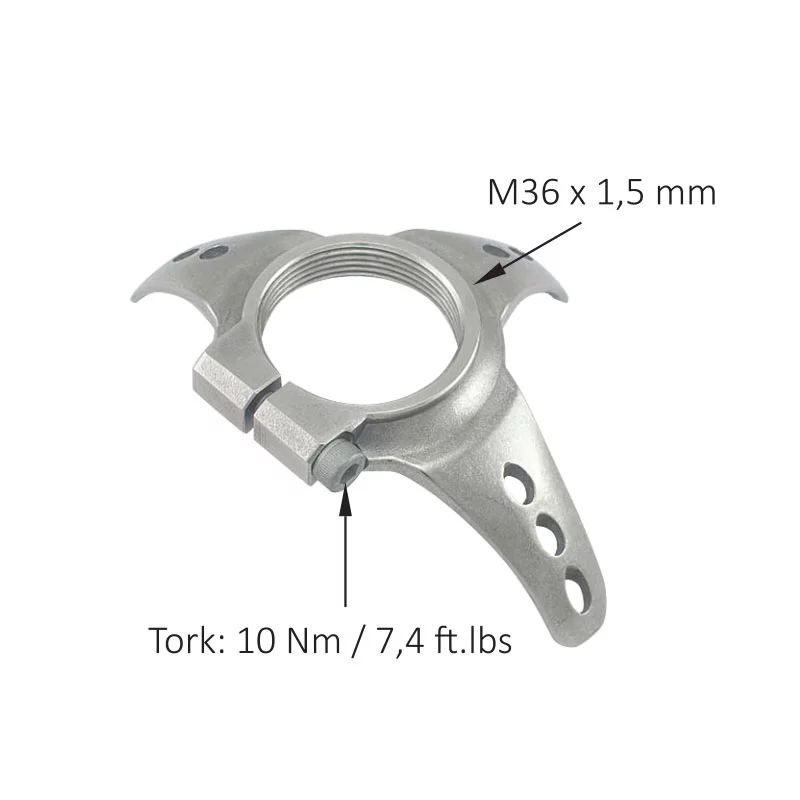

E 09s-Body Stainless Steel 105 gr 125 kg

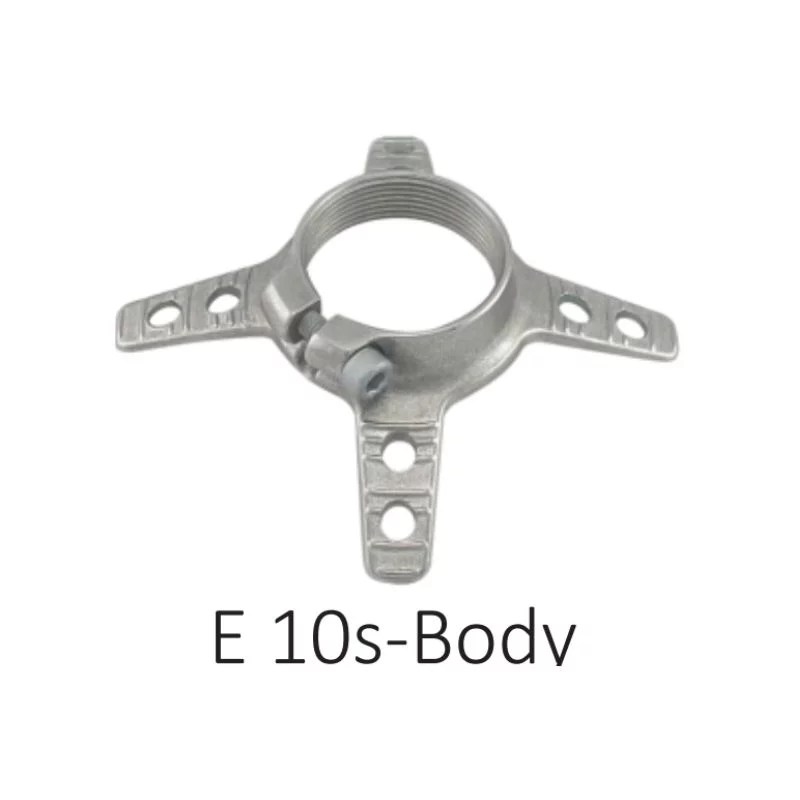

E 10s-Body Stainless Steel 74 gr 125 kg
Shipping & Delivery

Related products

Compare

Socket Attachment Blocks

Prosthetic Foot & Modular Adapters
  • The socket aO achment blocks are bonded to the distal end of the prosthetic socket and then laminated together with it. They serve to connect the prosthetic socket to a socket adapter.
  • E 20 Socket AB achment blocks contains “Laminaon Dummy” in the package.
Add to wishlist
Quick view
Compare

3 Prong Socket Adapter W/Rotating Pyramid and Receiver

Prosthetic Foot & Modular Adapters
 Code  Material Weight Weight Limit E 09s-Ps-Long Stainless Steel / Stainless Steel 285 gr 125 kg E 09s-PT-Long Stainless Steel
Add to wishlist
Quick view
Compare

Tube Clamp Adapters

Prosthetic Foot & Modular Adapters
  • Standard tube clamp adapters with the height of 47 mm.
  • For the tubes of Dia. 30 mm.
  • M8 Set-Screws are zinc-coated
  • Titanium versions have special “Water Channels” for proper water discharge and contains A2 Stainless Steel Set-Screws
Add to wishlist
Quick view
Compare

Pyramid Adapter with M36 Inner Thread

Prosthetic Foot & Modular Adapters
 Code  Material Weight Weight Limit H03s Stainless Steel 130 gr 125 kg H04s Stainless Steel 120 gr 125 kg H03T
Add to wishlist
Quick view
Compare

Fixed Pyramid Socket Adapters

Prosthetic Foot & Modular Adapters
  • Hardness of pyramid section kept high to handle screw pressure. On the other hand, Hardness of the prongs has been reduced by heat treatment, it can therefore be bent back and forth.
Add to wishlist
Quick view
Compare

10d – 20d Angled Tube Assembly

Prosthetic Foot & Modular Adapters
  • 10 ° - 20 ° tilted pyramid receiver adapter
  • Available in Stainles steel and Titanium
  • Available lengths 250mm-400mm
Add to wishlist
Quick view
Compare

Special Tube Clamp Adapters

Prosthetic Foot & Modular Adapters
  • Short type tube clamp adapters with the height of 40 mm.
  • Feature: Mounting height is 14 mm.
  • For the tubes of Dia. 30 mm.
  • M8 Set-Screws are zinc-coated
Add to wishlist
Quick view
Compare

Rotatable Receivers

Prosthetic Foot & Modular Adapters
  • The pyramid receiver with threaded connector is avaible as an individual component of lamination anchor
Add to wishlist
Quick view
