4 Hole Adapter With Fixed Receiver - Image 1
4 Hole Adapter With Fixed Receiver - Image 2
4 Hole Adapter With Fixed Receiver - Image 3
Click to enlarge
4 Hole Adapter With Fixed Receiver
4 Hole Adapter With Fixed Receiver - Image 2
4 Hole Adapter With Fixed Receiver - Image 3

The 4 Hole Adapter With Fixed Receiver is a critical modular component engineered for the high-strength attachment of prosthetic sockets in both transfemoral and transtibial configurations. This 4-hole socket adapter facilitates a secure interface between the distal end of the socket and the modular prosthetic system, ensuring structural stability and precise alignment.

4 Hole Adapter With Fixed Receiver


✔ CE
☀️ ISO 10328 Tested

Product Highlights


Versatile Mounting

Designed for mounting onto the socket of both Transfemoral and Transtibial prostheses.

Modular Connection

Used to securely connect different modular parts and the socket attachment block.

Material Options

Available in Stainless Steel, Titanium, and Aluminum to suit patient needs.

Technical Specifications

CodeMaterialWeightWeight Limit

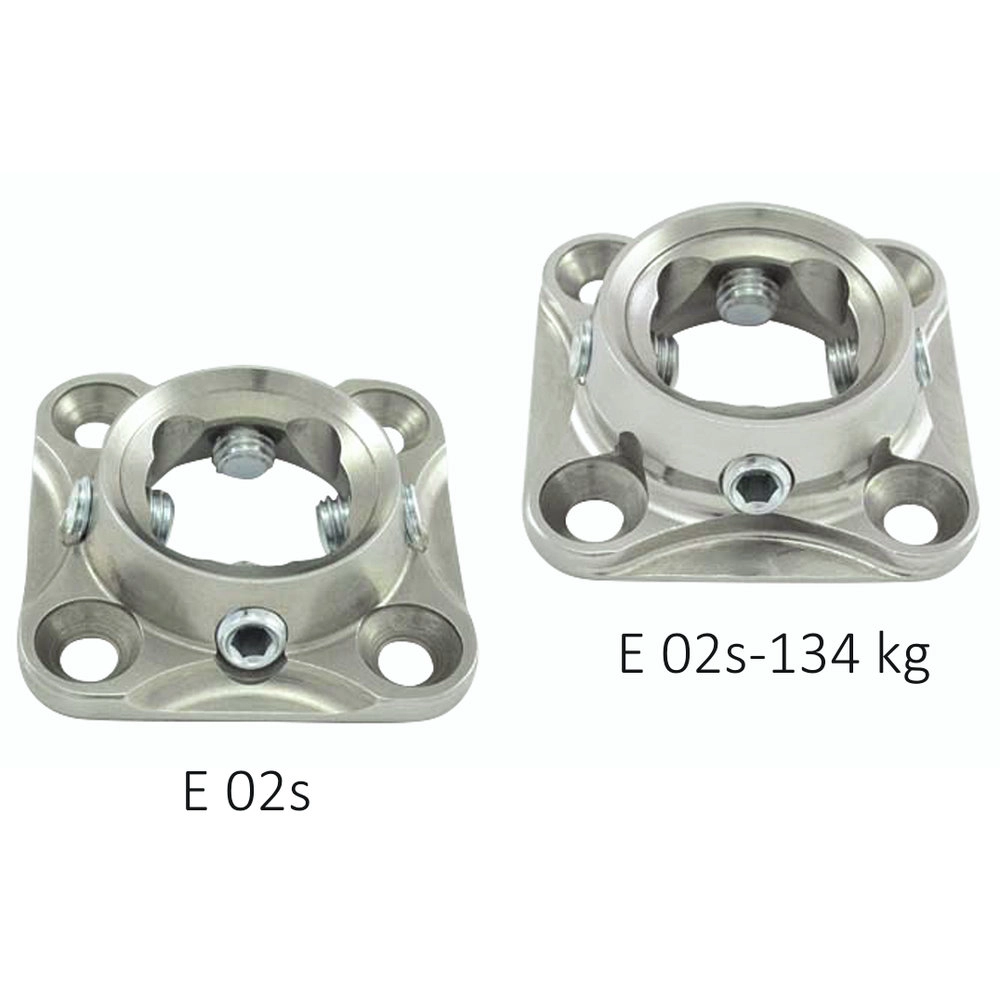

E 02sStainless Steel85 gr100 kg
E 02s-134Stainless Steel95 gr134 kg

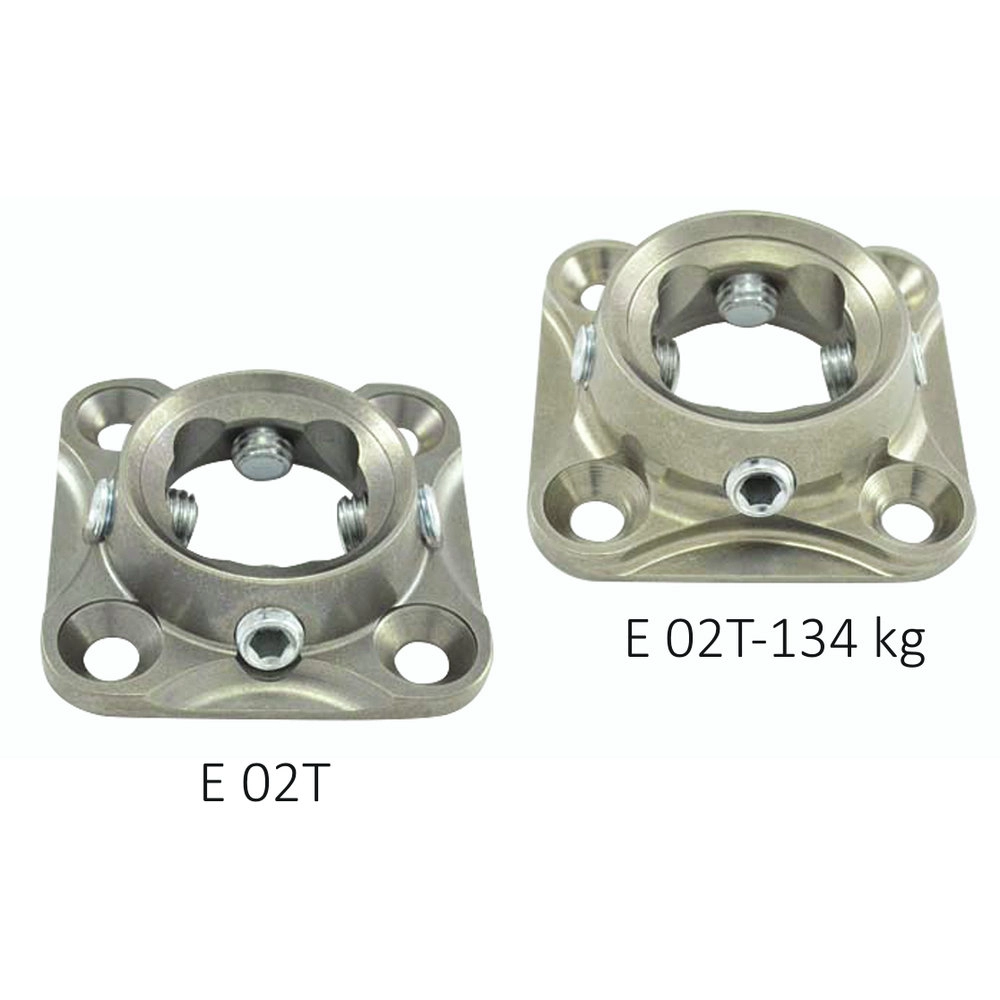

E 02TTitanium65 gr100 kg
E 02T-134Titanium80 gr134 kg

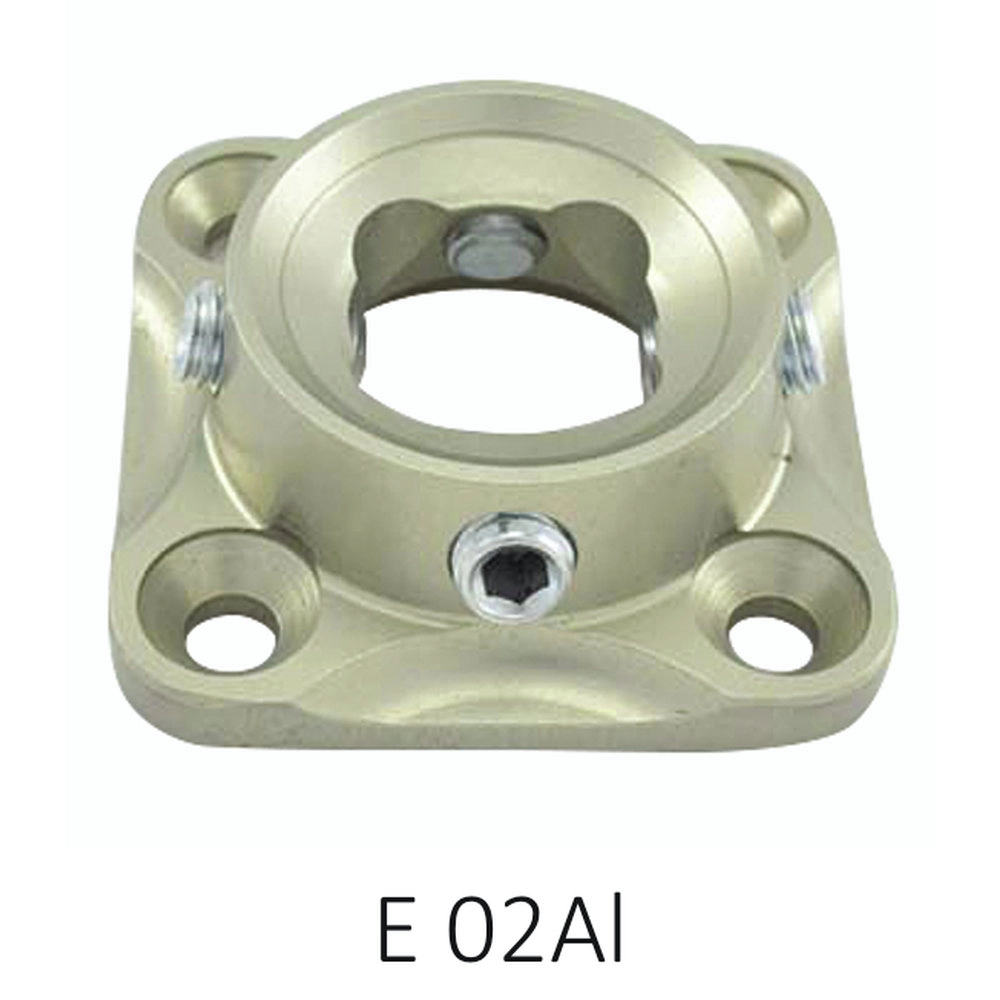

E 02AlAluminum58 gr100 kg



PDF

Instructions For Use
