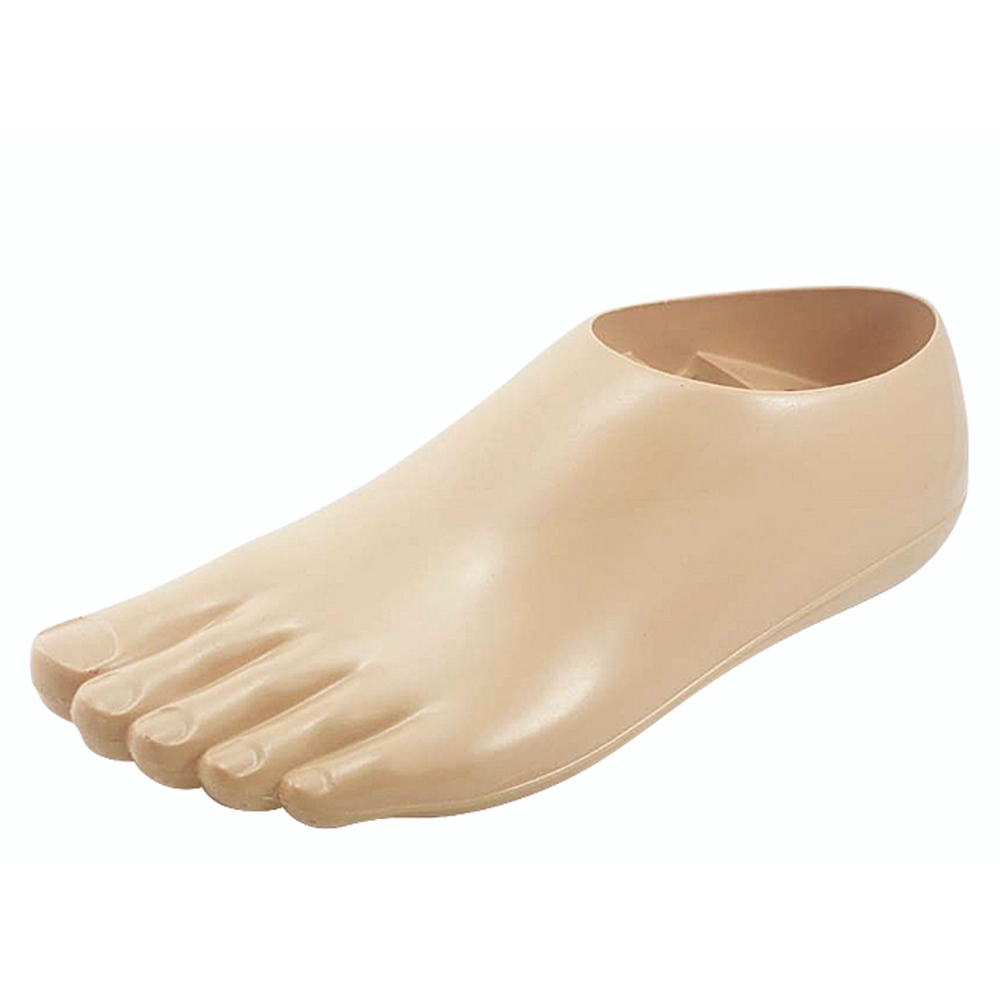

Single Axis Foot - Image 1

Click to enlarge

Order Example

The Single Axis Foot is a reliable and durable solution for prosthetic applications, specifically designed to provide a smooth and natural gait cycle. Engineered with a classic toe shape, this prosthetic foot ensures both aesthetic integration and optimal functionality for patients requiring consistent stability.

Single Axis Foot

✔ CE
🍁 Natural Shape
🛡️ Medical Grade
☀️ ISO 10328 Tested

Product Highlights

Standard Design

Designed with a classic toe shape, the Single Axis Foot provides a smooth and natural appearance inside any footwear, making it a preferred orthopedic foot component.

Adapter Compatibility

Fully compatible with E 50 Series adapters for a secure and precise connection.

Technical Specifications

Code	Foot Size	Load Weight	Heel Height	Side

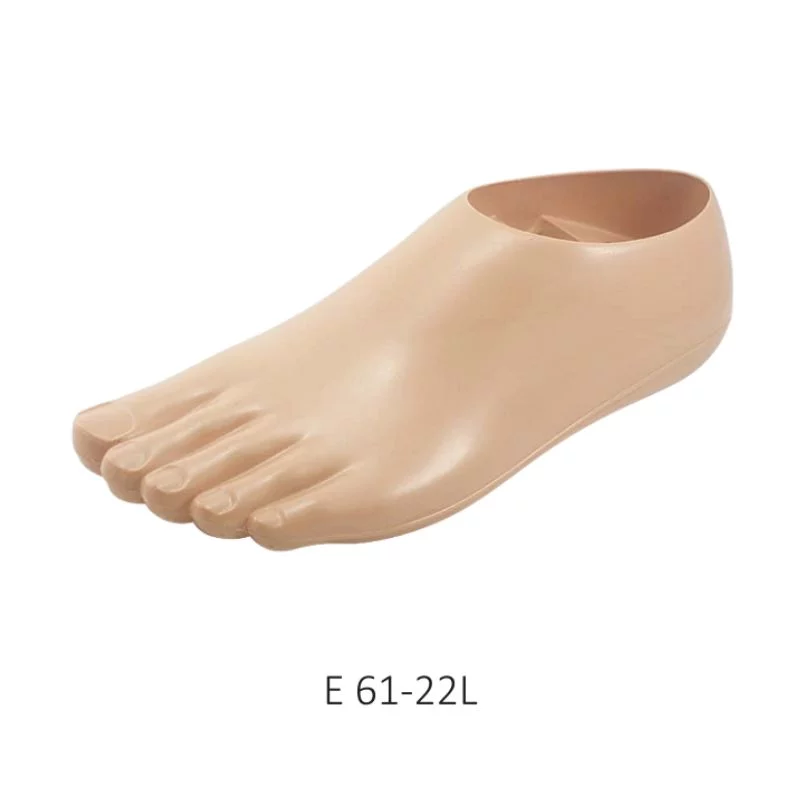

E 61-22 L/R	22	100 kg	10 mm	L/R
E 61-23 L/R	23	100 kg	10 mm	L/R
E 61-24 L/R	24	100 kg	10 mm	L/R
E 61-25 L/R	25	100 kg	10 mm	L/R
E 61-26 L/R	26	100 kg	10 mm	L/R
E 61-27 L/R	27	100 kg	10 mm	L/R
E 61-28 L/R	28	100 kg	10 mm	L/R
E 61-29 L/R	29	100 kg	10 mm	L/R
