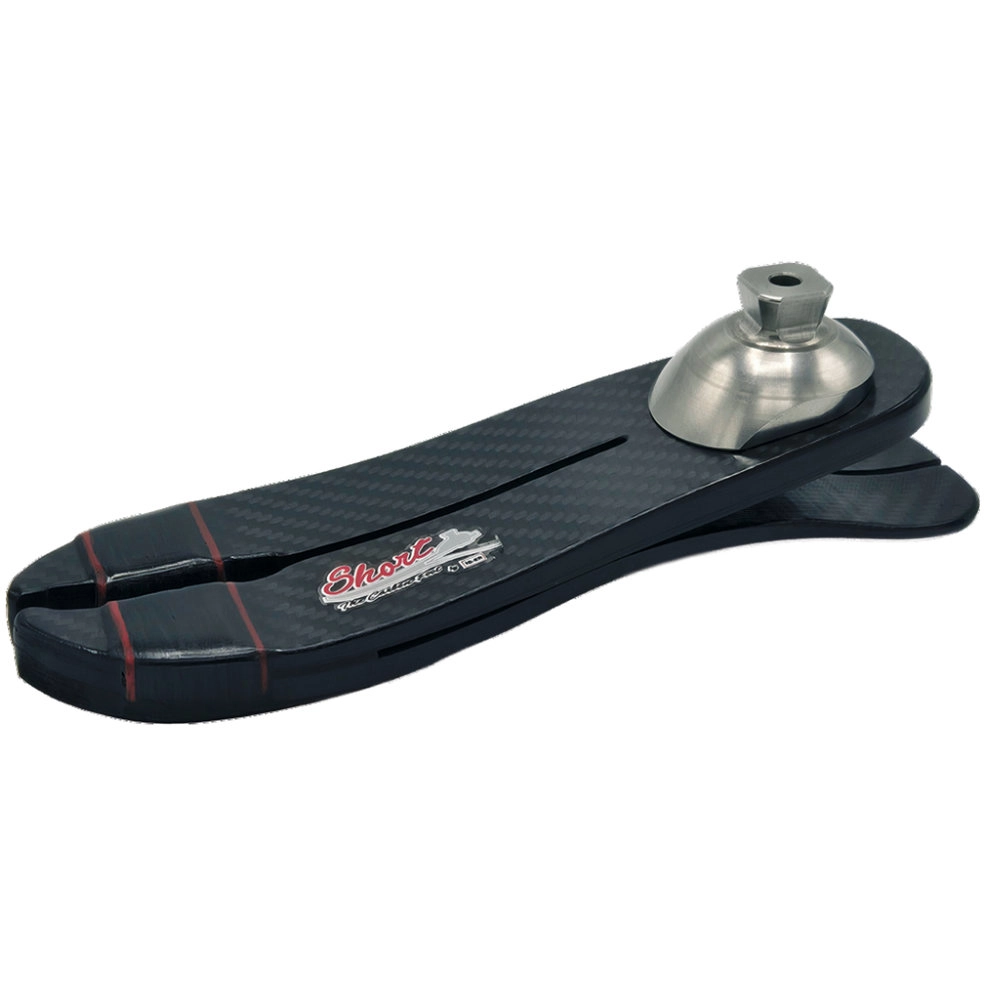

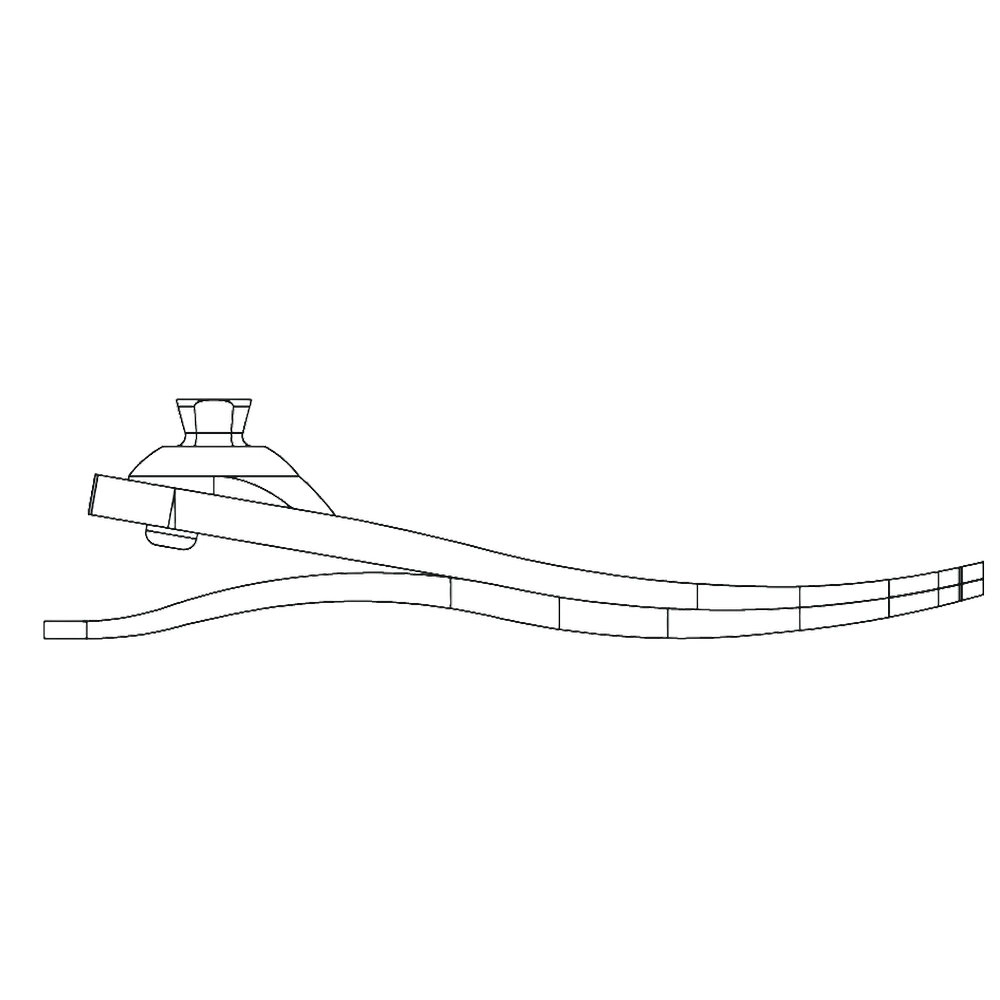

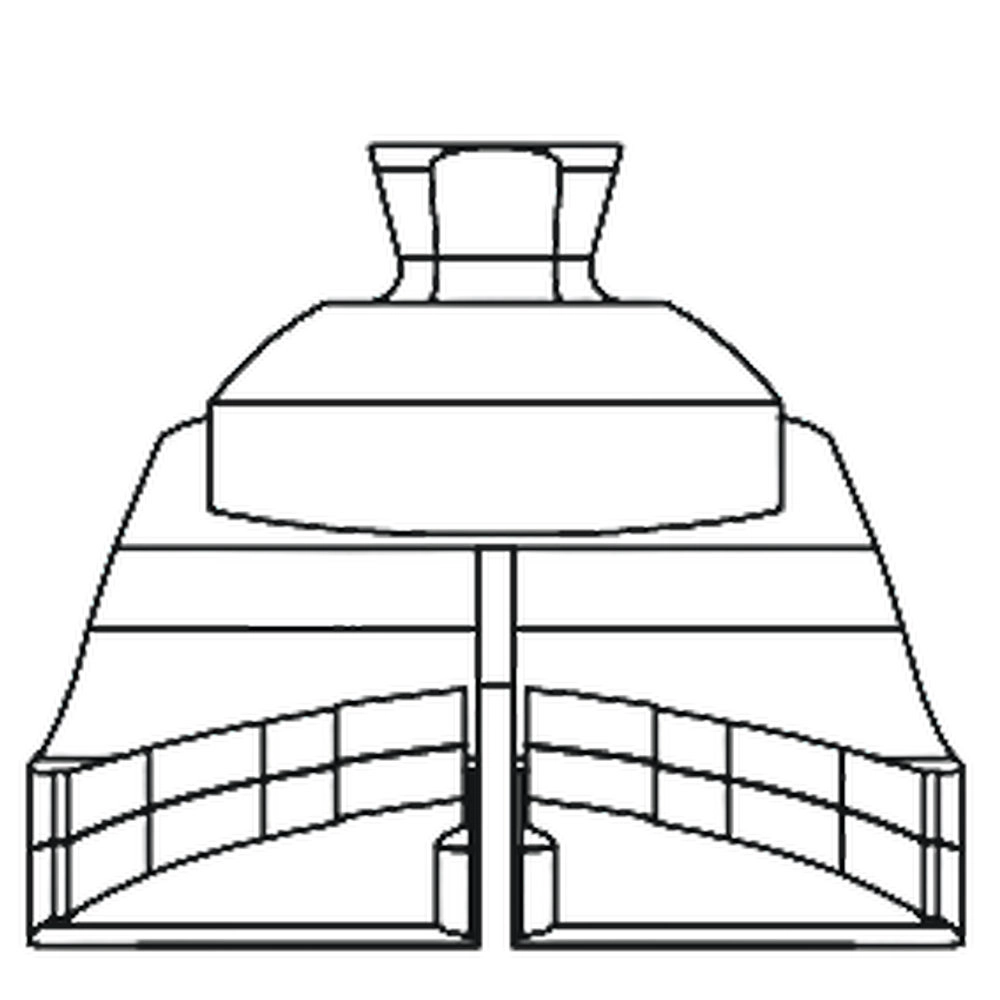

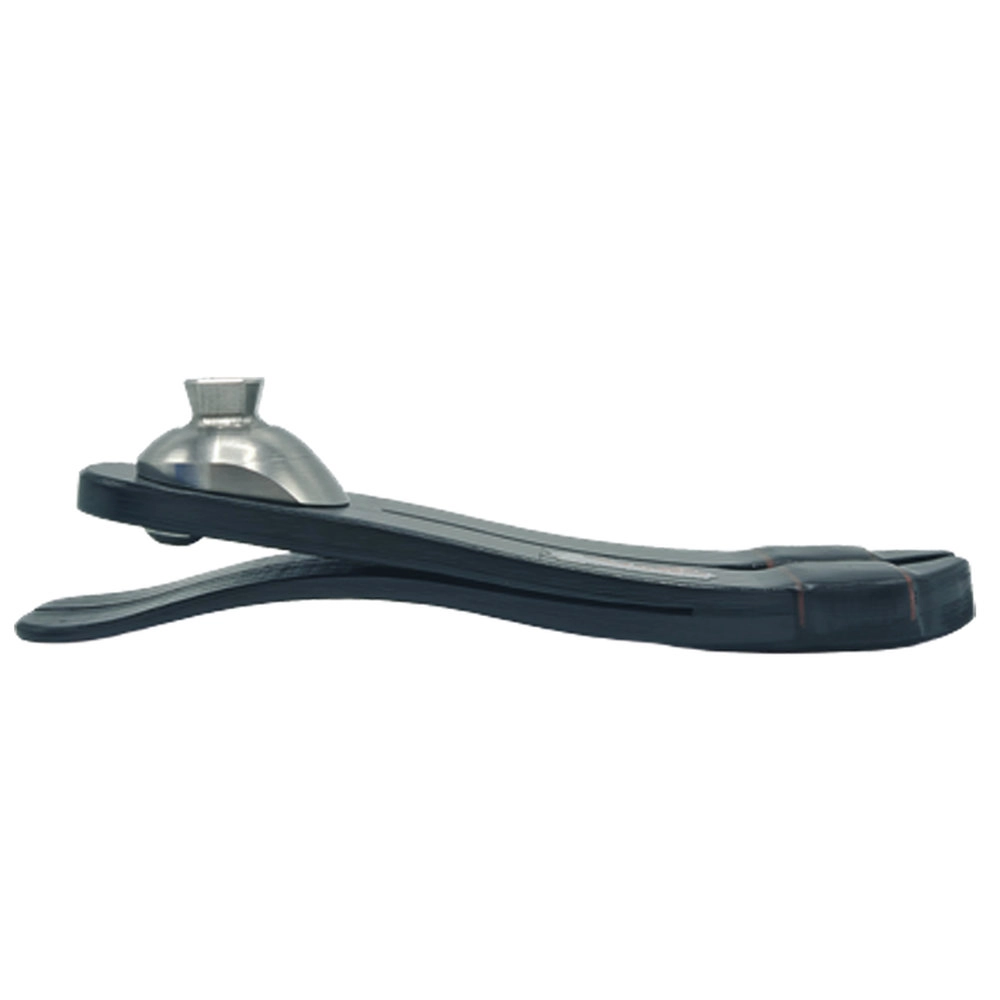

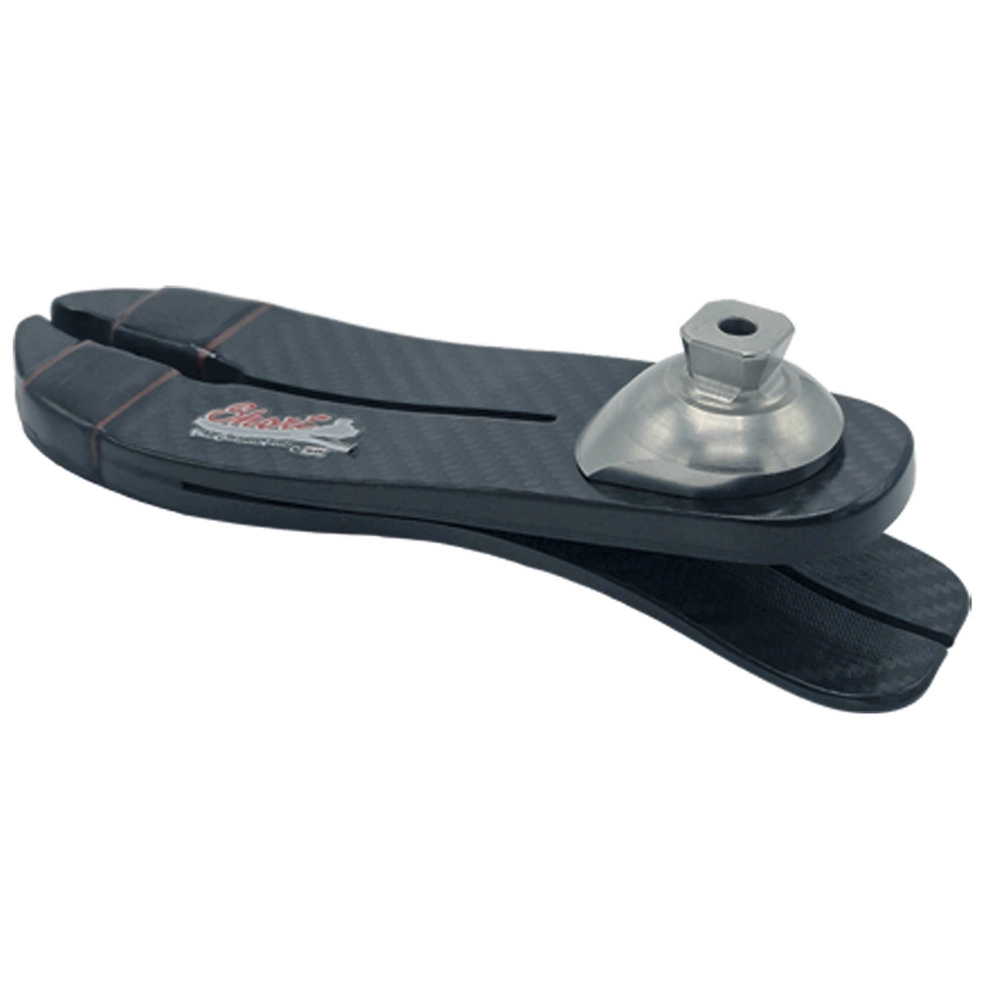

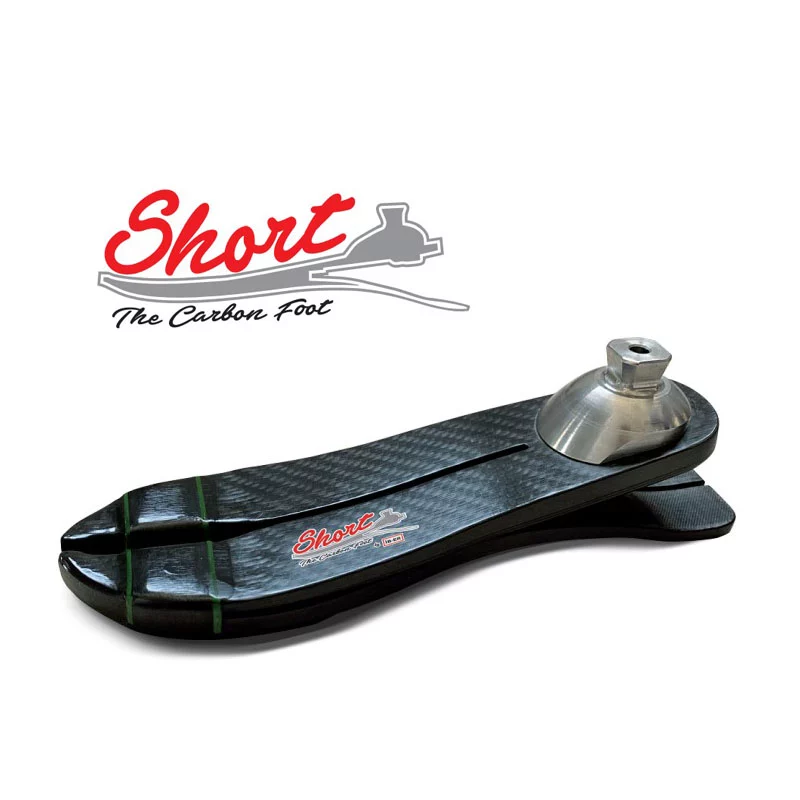

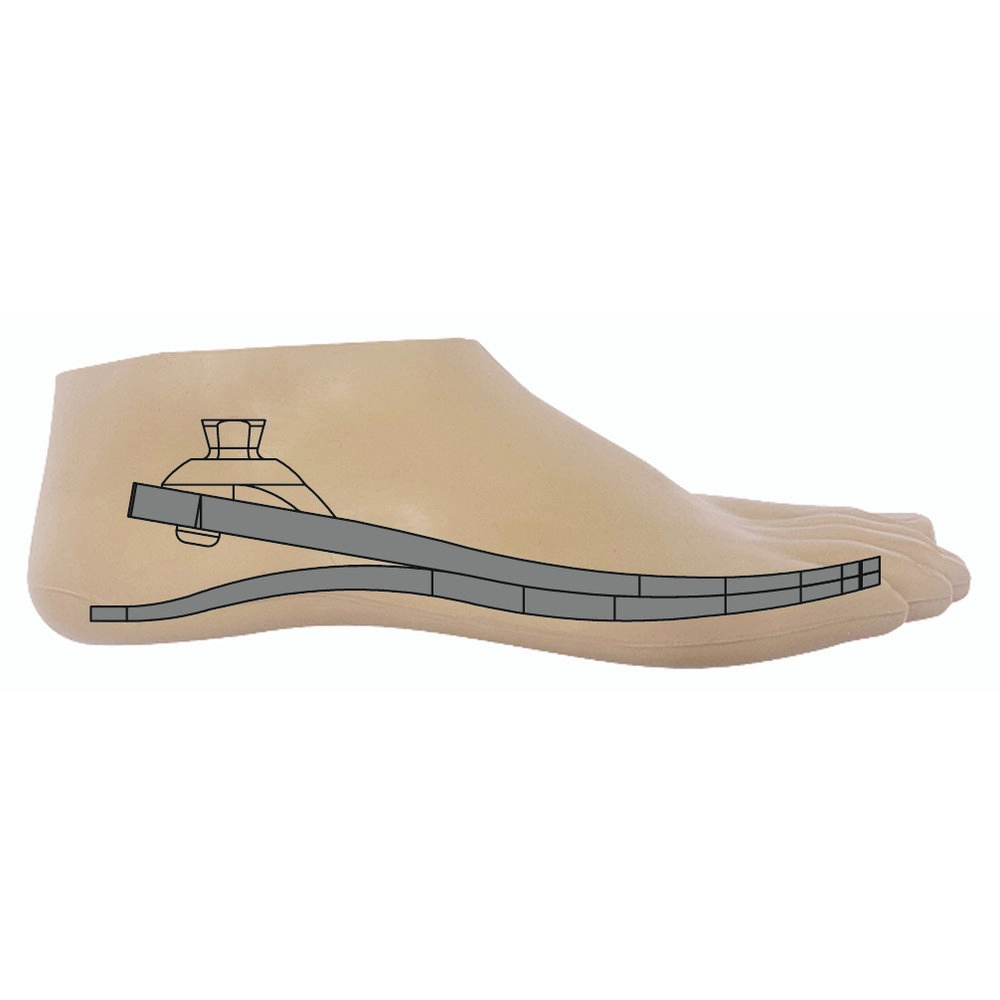

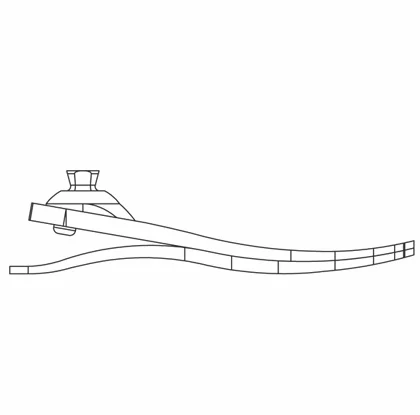

Short Foot
$29.00
Features
- As seen by it’s name, Short profile design is suitable for users with long residual limbs.
- Even having a Short profile, the foot provides energy return which is considerably high.
- Short height structure enables to use additional components on top, such as active vacuum adapters and shock absorbers.
- “3D-Printed Rings Technology” (Patent Pending) provides “Screw-less” connection of carbon plates at toe section. This provides smooth feeling and gait cycle for the user.
- Suitable for K2-K3 level users.

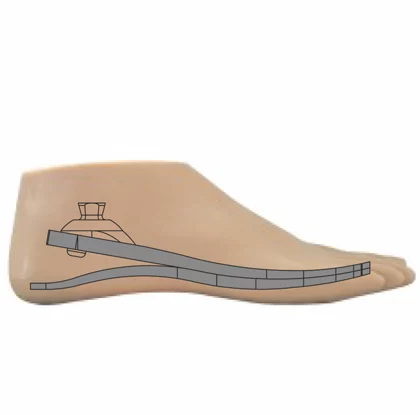

- Foot Shell is same for all foot types and available in all sizes.
- Foot Shell should be ordered separately by its size and colour.
Category Selection
| Body Weight | Category |
| 65 – 75 kg | CAT-1 |
| 75 – 85 kg | CAT-2 |
| 85 – 95 kg | CAT-3 |
| 95 – 105 kg | CAT-4 |
| 105 – 120kg | CAT-4 |
Data Table
| Product Name | Short Foot |
| Sizes | 23 to 29 |
| Advised Activity Level | K2-K3 |
| Max User Weight | 120 Kg |
| Mean Product Lenght | 50 mm |
| Mean Product Weight | 350 Gr |
| Available Foot Shell Color | Beige & Brown |

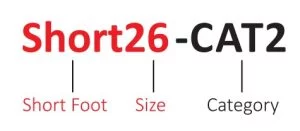

Order Example
Description
Category Selection
| Body Weight | Category |
| 65 – 75 kg | CAT-1 |
| 75 – 85 kg | CAT-2 |
| 85 – 95 kg | CAT-3 |
| 95 – 105 kg | CAT-4 |
| 105 – 120 kg | CAT-5 |
Data Table
| Product Name | Short Foot |
| Sizes | 23 to 29 |
| Advised Activity Level | K2-K3 |
| Max User Weight | 120 Kg |
| Mean Product Lenght | 50 mm |
| Mean Product Weight | 350 Gr |
| Available Foot Shell Color | Beige & Brown |
Shipping & Delivery
