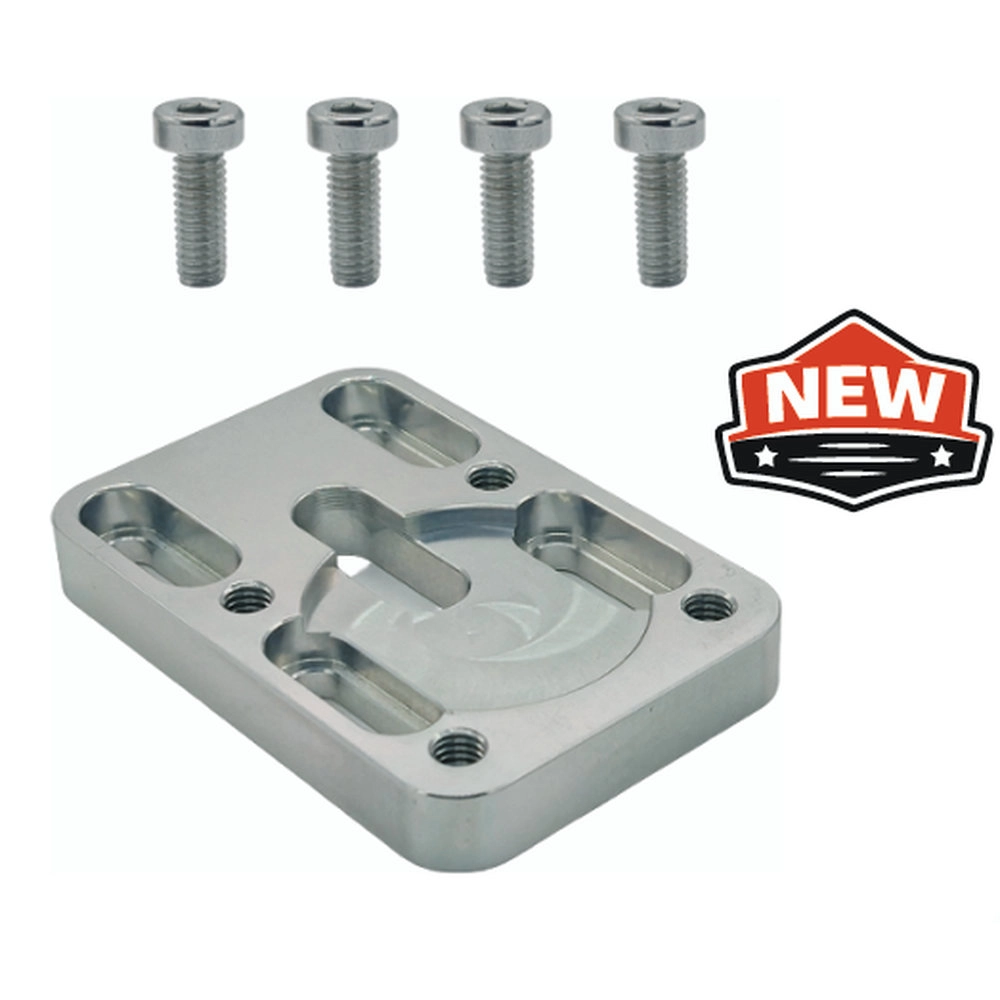

Posterior Offset Plate - Image 1
Click to enlarge
Engineered for precise prosthetic alignment, the Posterior Offset Plate provides a permanent and reliable posterior shift specifically for Transfemoral (TF) sockets. Manufactured from durable aluminum, this modular component allows for adjustable shifting lengths between 10 mm and 25 mm, ensuring optimal biomechanical balance. It comes as a complete package with stainless steel screws and features a 100% waterproof design for maximum longevity.


Waterproof Performance

IB-ER Waterproof Prosthetic Components

Posterior Offset Plate


10-25 mm Shift
Waterproof
CE Certified
ISO 10328 Tested

Product Highlights


Adjustable Alignment

The shifting length can be precisely adjusted between 10 mm and 25 mm, allowing prosthetists to achieve the optimal biomechanical balance for the patient.

Complete Hardware Kit

Designed for immediate integration, the plate comes packaged with high-strength stainless steel screws to ensure a permanent and secure connection to TF sockets.

Waterproof Durability

Constructed from high-quality lightweight aluminum, the entire assembly is fully waterproof, providing reliable and corrosion-resistant performance in any environment.

Technical Specifications

CodeMaterialWeightWeight Limit
E 93Aluminum95 gr100 kg
Add to compare

Dynamic Prosthetic Foot

The premium dynamic prosthetic foot is meticulously engineered to facilitate a natural gait cycle and provide complete water resistance, ensuring exceptional reliability and biomechanical performance for the user's daily mobility.
Order Configuration
Dynamic Foot Order Example
Waterproof Performance
IB-ER Waterproof
Add to wishlist
Quick view
Add to compare

Sach and Dynamic Foot Adapter

Our ISO 10328 tested SACH foot and Dynamic Foot Adapter provides a universal, high-performance interface for prosthetic foot systems, engineered with aerospace-grade materials for maximum structural stability and patient reliability.

Add to wishlist
Quick view
Add to compare

Diameter 34 Tube Clamp Adapters

The Diameter 34 Tube Clamp Adapters are precision-engineered modular components designed for the secure distal or proximal connection of 34 mm diameter prosthetic pylons. As a vital prosthetic tube clamp solution, these adapters provide a stable interface between the structural tube and other modular components, ensuring reliable alignment in high-activity prosthetic builds.

Add to wishlist
Quick view
Add to compare

4 Hole Adapter W/ Rotating Receiver W/ M5x20 Screw

The 4 Hole Adapter W/ Rotating Receiver W/ M5x20 Screw is a precision-engineered prosthetic socket adapter designed for the distal attachment of prosthetic sockets. Utilizing high-precision M5x20 threading, this rotating pyramid receiver allows for free rotation adjustment, ensuring optimal anatomical alignment and structural stability within complex modular prosthetic components setups.

Add to wishlist
Quick view
Add to compare

Slide Adapters

The Slide Adapters are highly specialized modular components engineered for precise linear translation during prosthetic alignment. Functioning as an advanced prosthetic slide adapter, this unit allows prosthetists to shift the socket horizontally relative to the pylon system without altering the established angular alignment, ensuring optimal biomechanical balance and patient comfort.

Add to wishlist
Quick view
Add to compare

4-Hole Pyramid Adapter with Fixed Pyramid

The 4-hole pyramid adapter is a high-precision prosthetic component engineered to provide a secure and stable connection between modular parts and socket attachment blocks, ensuring optimal structural integrity in lower extremity systems.

Add to wishlist
Quick view
Add to compare

4-Prong Socket Adapter with Center Hole

Engineered for precise clinical fabrication, this robust 4-prong socket adapter serves as a highly reliable prosthetic lamination anchor, featuring a center hole for versatile socket system integration.
Add to wishlist
Quick view
Add to compare

Eccentric 4-Hole Adapter (Axial/Diagonal)

Designed for complex clinical alignments, this highly precise eccentric 4-hole adapter serves as an essential offset prosthetic adapter, offering a 5mm shift for superior spatial adjustment and socket integration.
Add to wishlist
Quick view
Add to compare

34mm Prosthetic Tube Assembly (Heavy Duty Pylon)

Engineered for maximum structural stability, this robust 34mm prosthetic tube assembly serves as a heavy duty prosthetic pylon capable of safely supporting high-impact users up to 134 kg.
Add to wishlist
Quick view
Add to compare

Aluminum Prosthetic Tube & Pylon (30mm/34mm)

Engineered for optimal energy return and user comfort, this high-grade aluminum prosthetic tube serves as a reliable, lightweight prosthetic pylon for advanced lower limb modular systems.
Add to wishlist
Quick view
Add to compare

Prosthetic Tube Clamp Adapter (E07, 30mm, Titanium/Steel)

Engineered for secure modular connections, this advanced prosthetic tube clamp adapter features specialized water discharge channels in its titanium variant, functioning as a highly reliable 30mm tube clamp.
Add to wishlist
Quick view
Add to compare

E 06 Short Tube Clamp Adapter (Low Profile 30mm)

Engineered for space-restricted clinical builds, this specialized short tube clamp adapter acts as a reliable low profile prosthetic clamp, featuring a minimal 14 mm mounting height for standard 30mm systems.
Add to wishlist
Quick view
Add to compare

Prosthetic Tube Adapter with Pyramid Receiver

Engineered for high-precision clinical alignment, the E 57 series functions as a critical prosthetic tube adapter with receiver, acting as a robust female pyramid receiver adapter to ensure a secure bridge in modular lower limb systems.
Add to wishlist
Quick view
Add to compare

Fixed Pyramid Socket Adapter

Engineered for effortless clinical adaptation, this fixed pyramid socket adapter features specialized heat-treated prongs for easy bending while maintaining a high-hardness pyramid to resist extreme screw pressure in modular setups.
Add to wishlist
Quick view
Add to compare

Rotatable Prosthetic Pyramid

Precision-machined for modular versatility, this rotatable prosthetic pyramid functions as a high-performance threaded male adapter. It is designed as a direct prosthetic spare part for lamination anchors, providing uncompromised structural stability and easy clinical maintenance.
Add to wishlist
Quick view
Add to compare

Rotating Socket Lamination Adapter

Engineered for superior modular alignment, this rotating socket lamination adapter is available in 3-prong and 4-prong configurations. Featuring a precision female pyramid receiver adapter, it allows for post-lamination rotation adjustments, supporting high-load applications up to 134 kg.
Add to wishlist
Quick view
Add to compare

M36 Thread with Pyramid Receiver

Engineered for high-strength clinical builds, this M36 thread with pyramid receiver serves as a reliable prosthetic pyramid receiver adapter, allowing seamless integration between shuttle locks and modular lower limb systems.
Add to wishlist
Quick view
Add to compare

Pyramid Adapter with M36 Inner Thread

Engineered for high-load modular configurations, this pyramid adapter with M36 inner thread serves as a reliable M36 threaded prosthetic adapter. It provides a secure male pyramid interface for shuttle locks and socket adapters, supporting up to 125 kg in both durable stainless steel and ultra-light titanium variants.
Add to wishlist
Quick view
Add to compare

Pyramid to Receiver Adapter

Engineered for precise modular alignment, this high-performance pyramid to receiver adapter functions as a critical prosthetic male to female adapter. It provides an adjustable bridge between male pyramids and modular components, offering five height configurations (32mm to 75mm) in both high-strength stainless steel and lightweight titanium variants.
Add to wishlist
Quick view
Add to compare

Metallic Attachment Blocks

Engineered for high-precision thermoplastic socket fabrication, these metallic attachment blocks provide a robust and detachable interface. Designed as a versatile aluminum prosthetic socket block, they ensure secure modular integration for both transtibial and transfemoral frames, supporting up to 100 kg with superior structural integrity.
