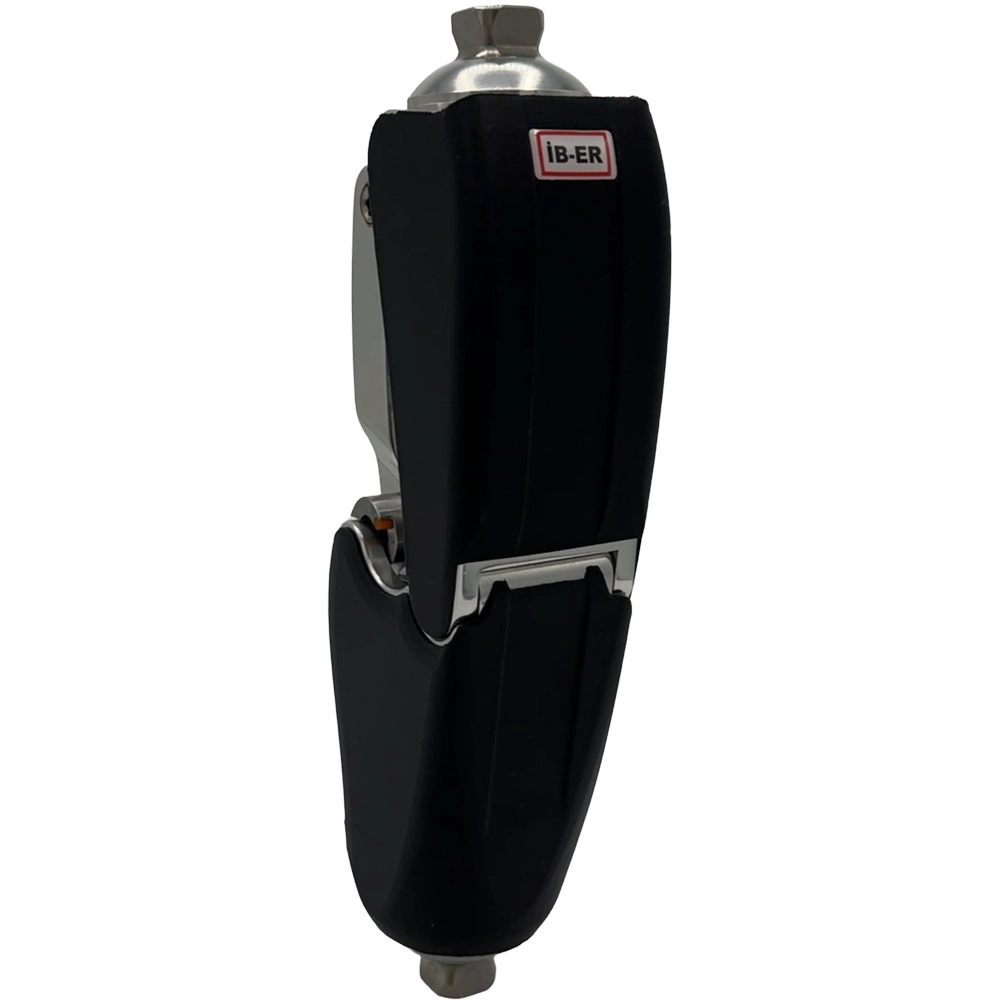

KN-200 Polycentric Hydraulic Knee Joint - Image 1

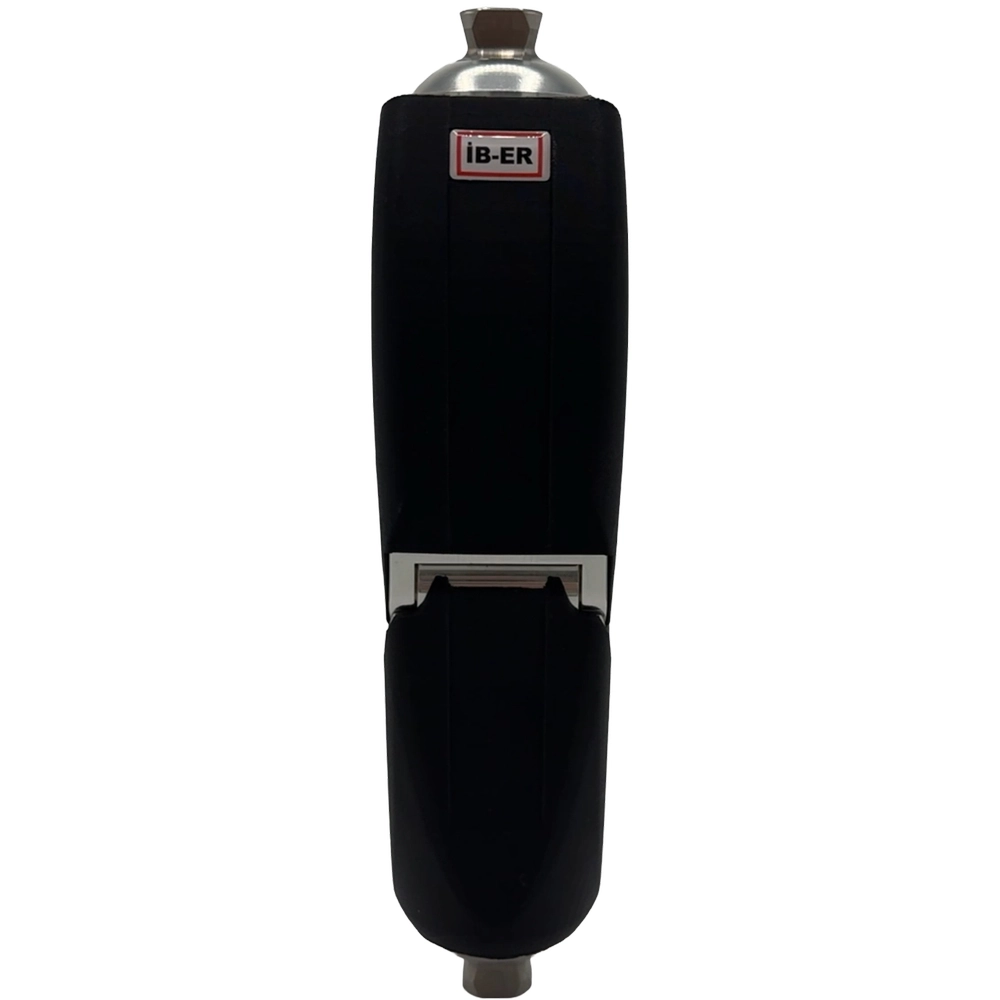

KN-200 Polycentric Hydraulic Knee Joint - Image 2
KN-200 Polycentric Hydraulic Knee Joint - Image 3
KN-200 Polycentric Hydraulic Knee Joint - Image 4
KN-200 Polycentric Hydraulic Knee Joint - Image 5
Click to enlarge

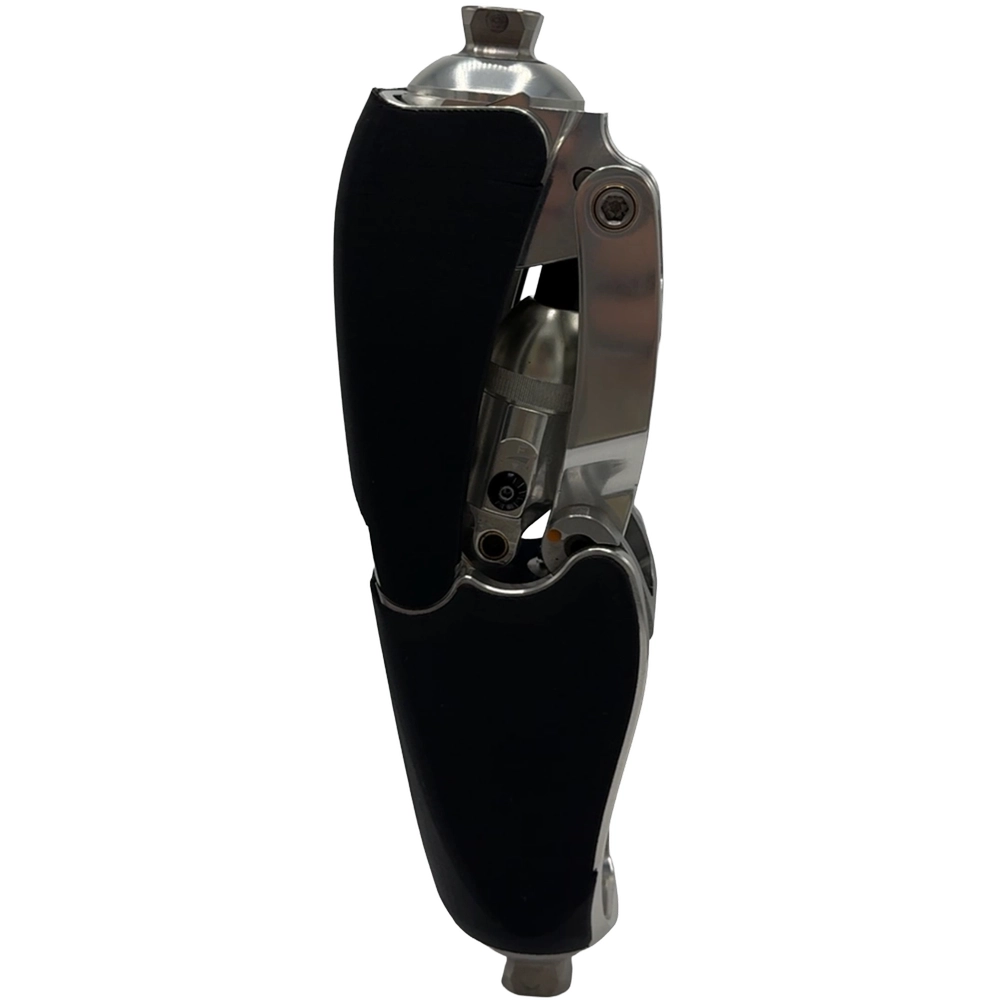

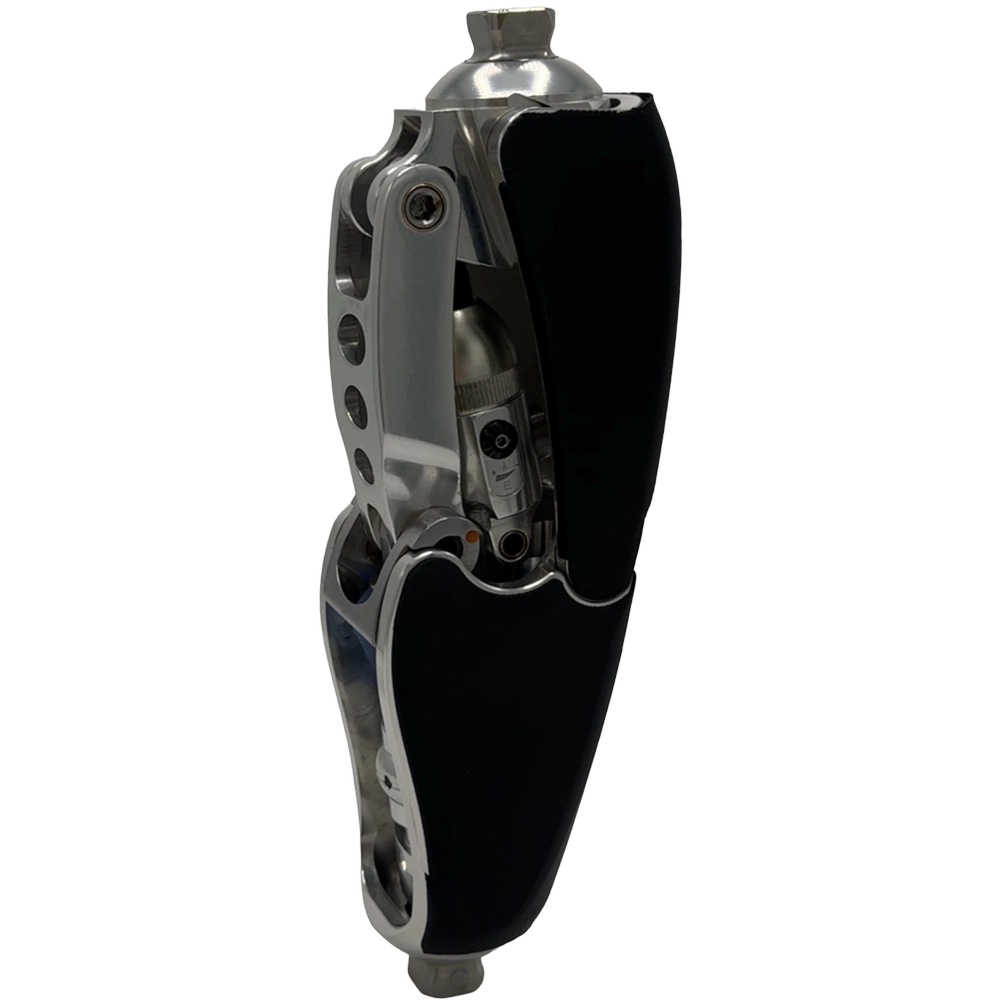

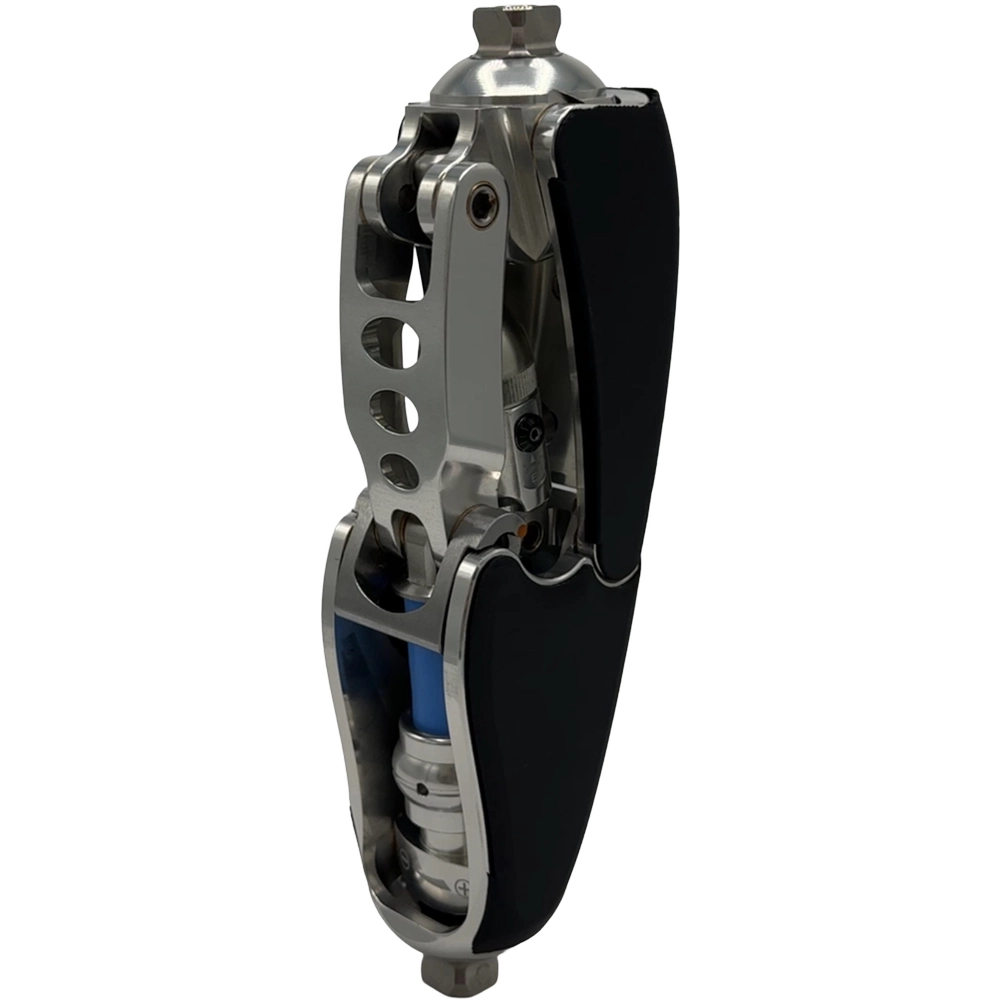

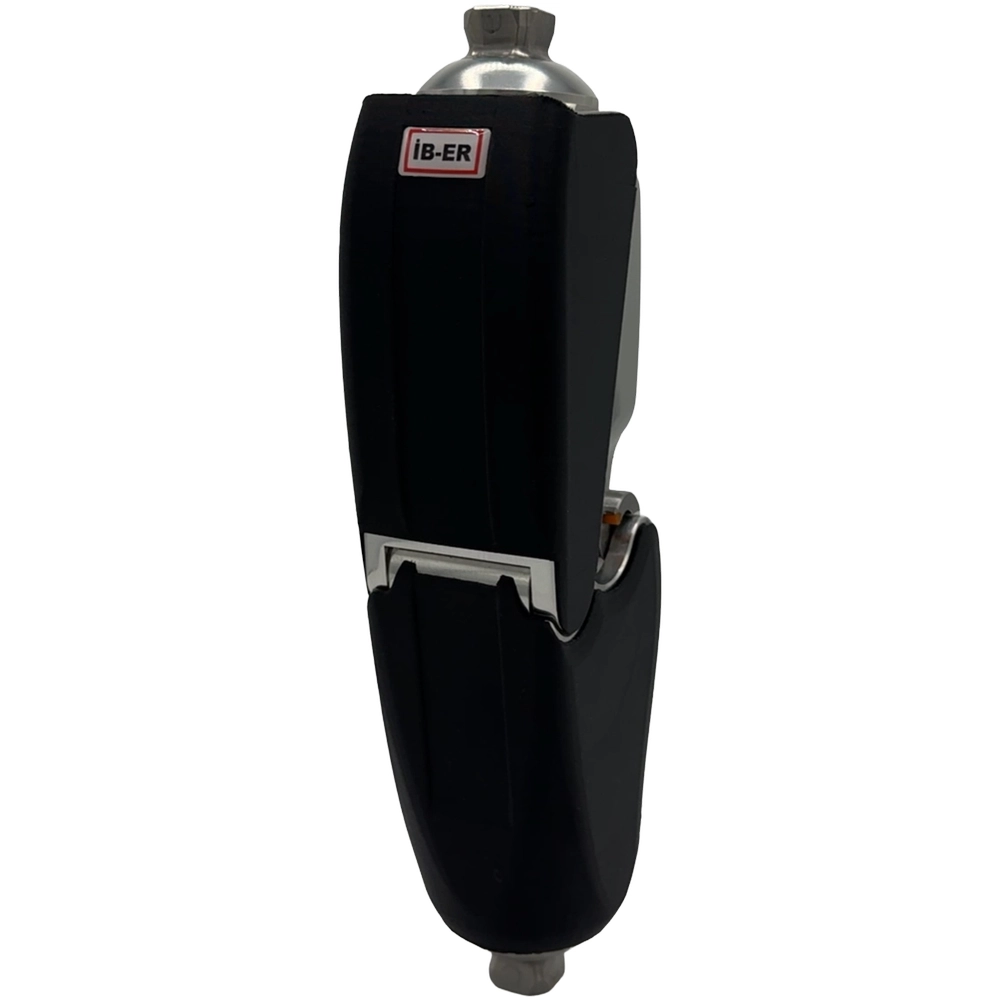

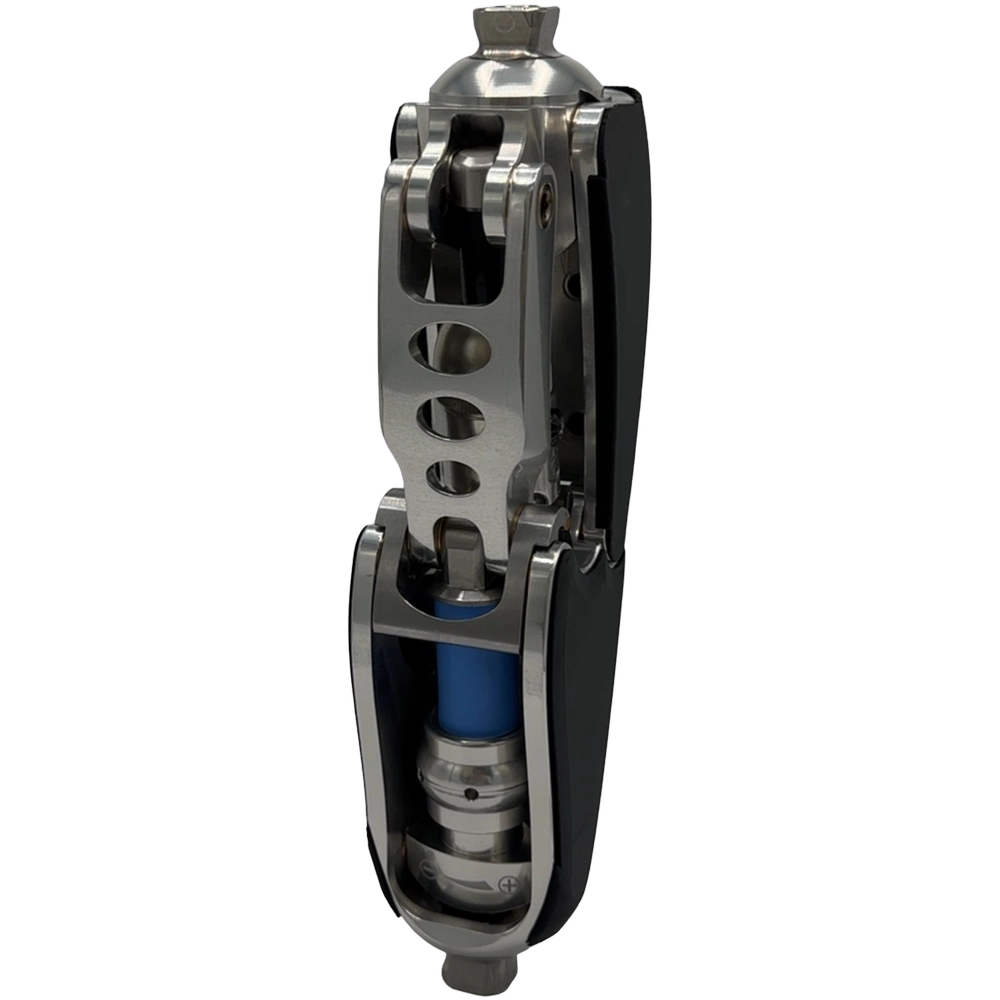

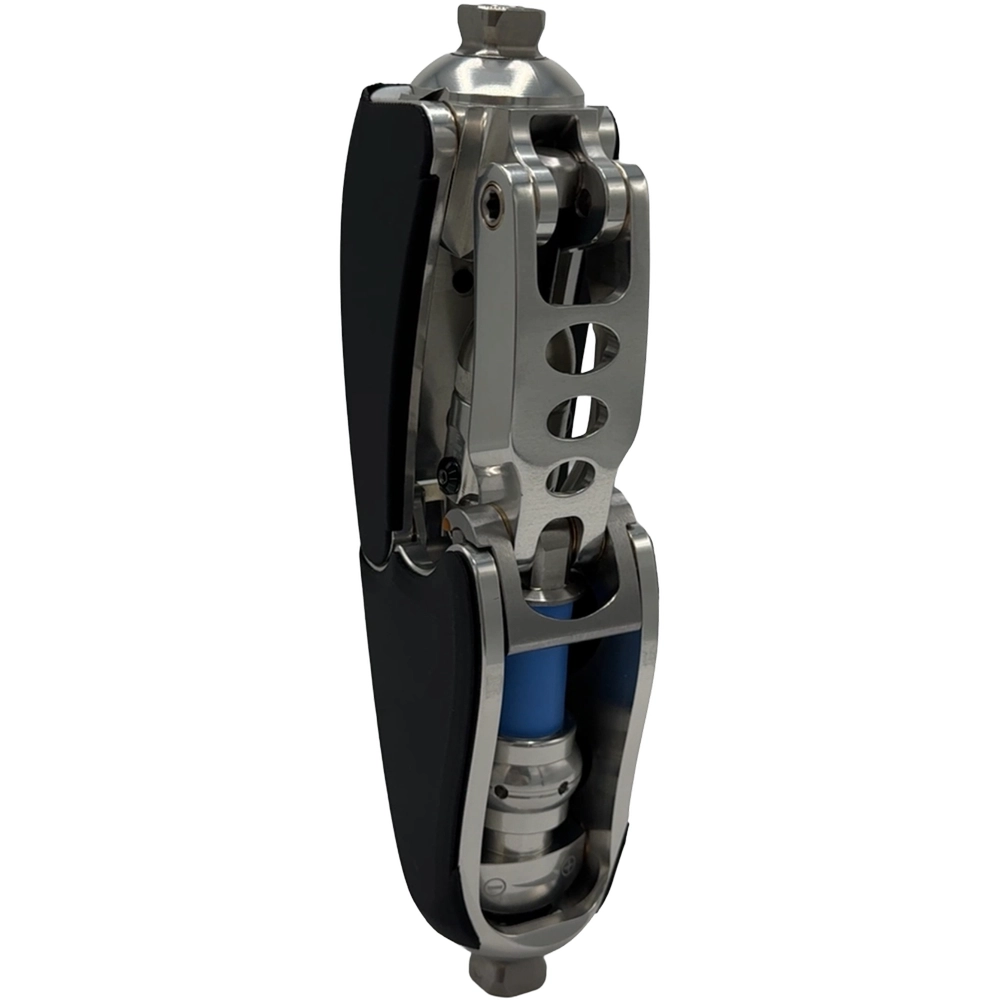

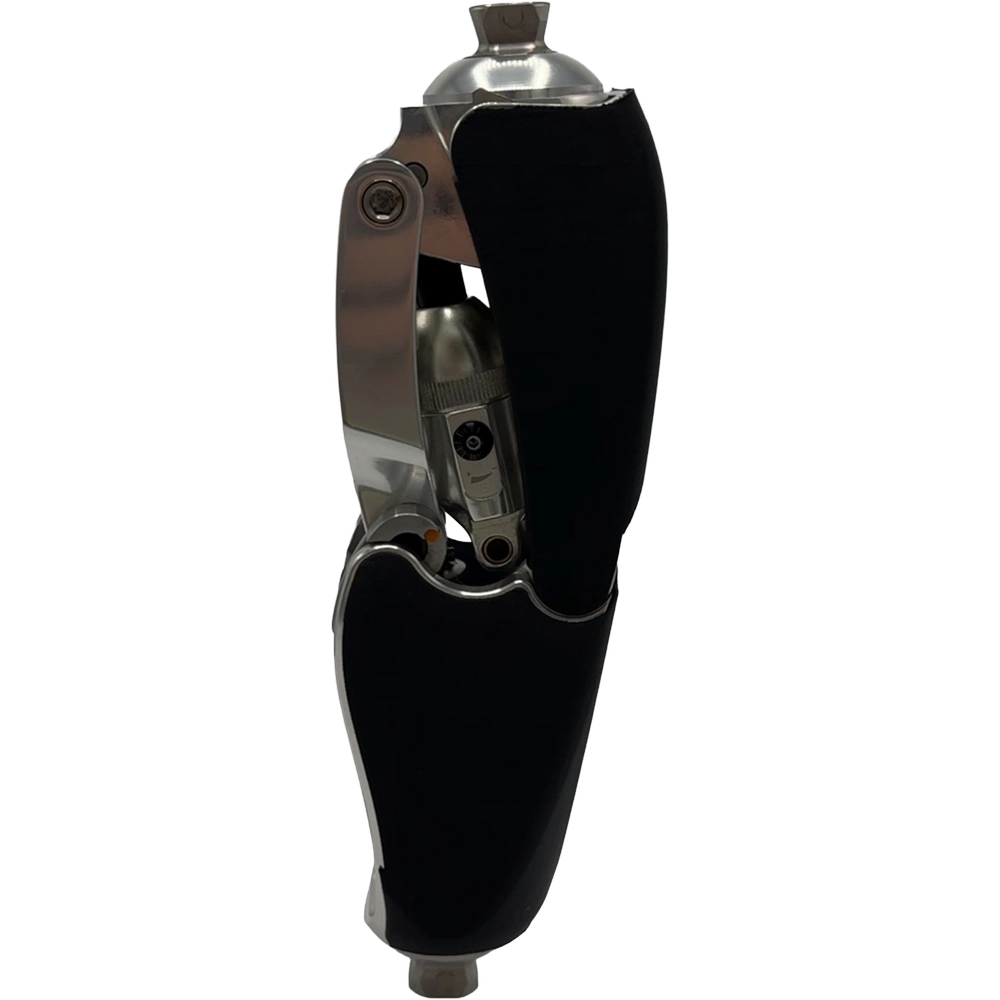

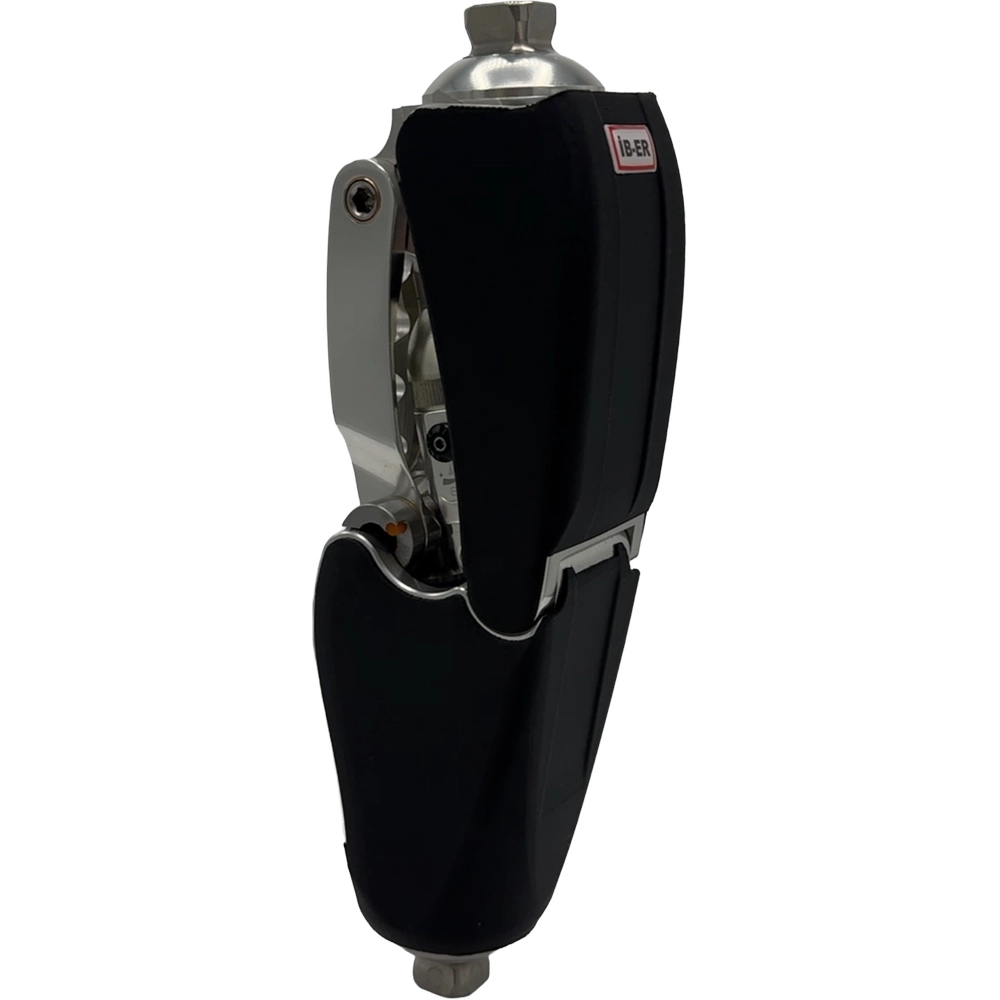

KN-200 Polycentric Hydraulic Knee Joint
KN-200 Polycentric Hydraulic Knee Joint - Image 2
KN-200 Polycentric Hydraulic Knee Joint - Image 3
KN-200 Polycentric Hydraulic Knee Joint - Image 4
KN-200 Polycentric Hydraulic Knee Joint - Image 5



Engineered for exceptional shock absorption and a seamless natural gait, the KN-200 Polycentric Knee Joint combines multi-axis stability with advanced hydraulic swing phase control. This premium mechanical prosthetic knee utilizes controlled stance phase flexion to reduce daily physical stress, alongside an innovative design that increases ground clearance to actively prevent stumbling. Built to enhance overall amputee mobility, this reliable prosthetic knee joint safely supports users up to 125 kg and offers precise, easy-to-tune adjustments for optimized walking speeds.

KN-200 Polycentric Hydraulic Knee Joint

KN-200 Polycentric Hydraulic Knee Joint

Polycentric Design
Hydraulic Swing Control
Stance-Phase Flexion
High Ground Clearance
CE Certified
ISO 10328 Tested

Functional Highlights


  • Shock Absorption: Stance-phase flexion provides a natural response at heel strike.

  • Hydraulic Control: Smooth swing phase adaptation at varying walking speeds.

  • Safety & Clearance: Polycentric structure reduces stumbling risks.

  • Optimal Stability: Combines reliable mechanics with everyday comfort.

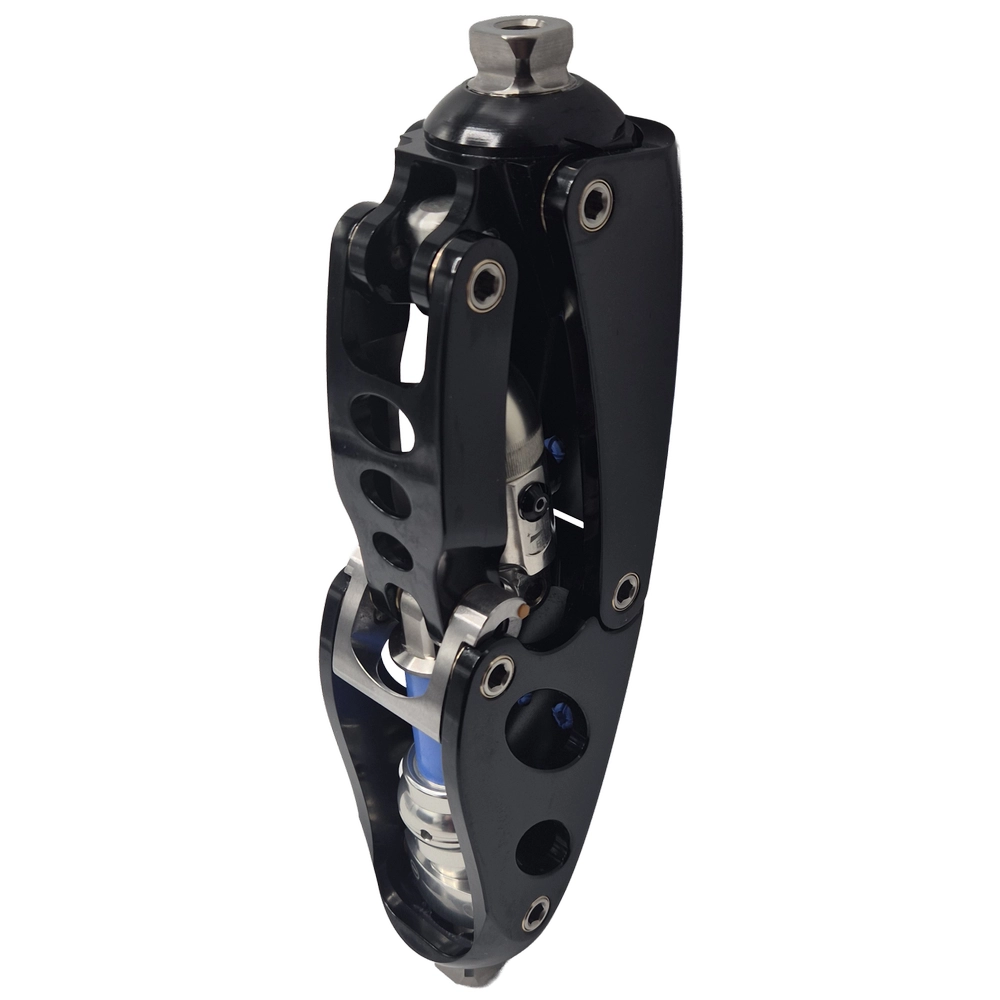

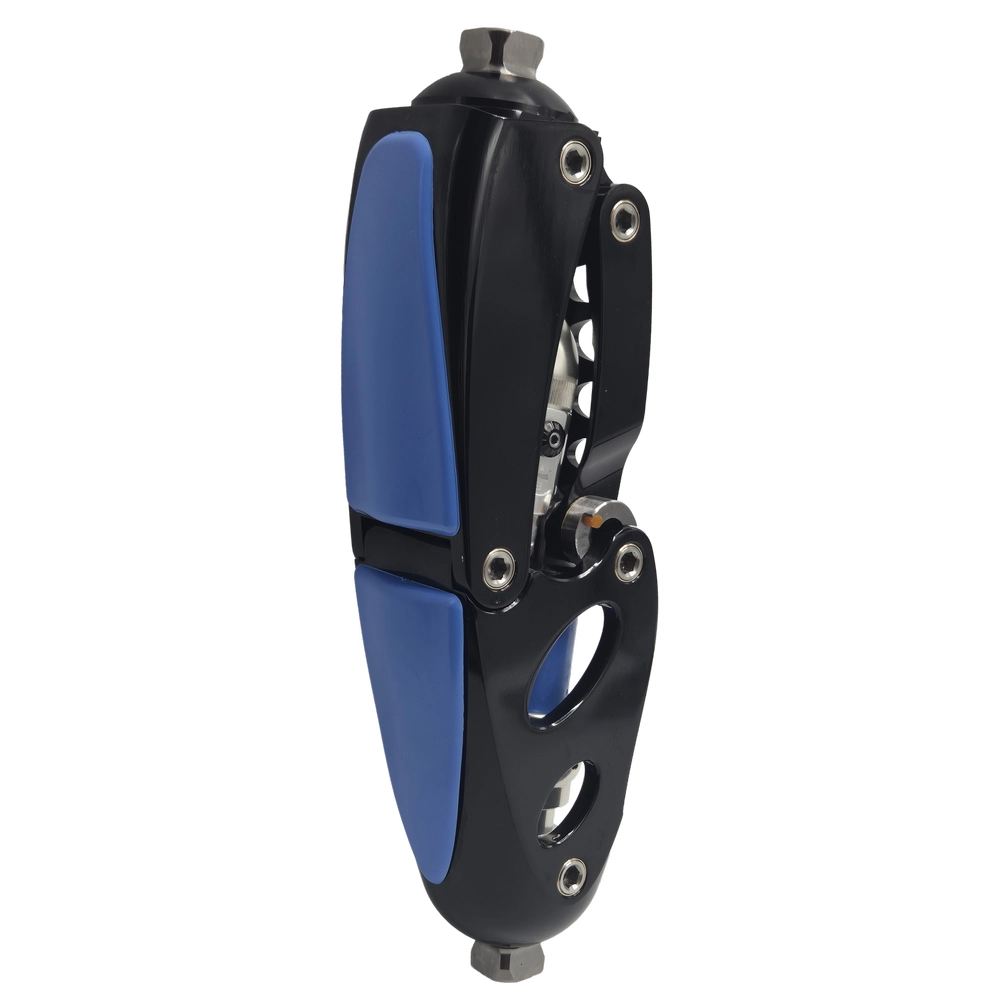

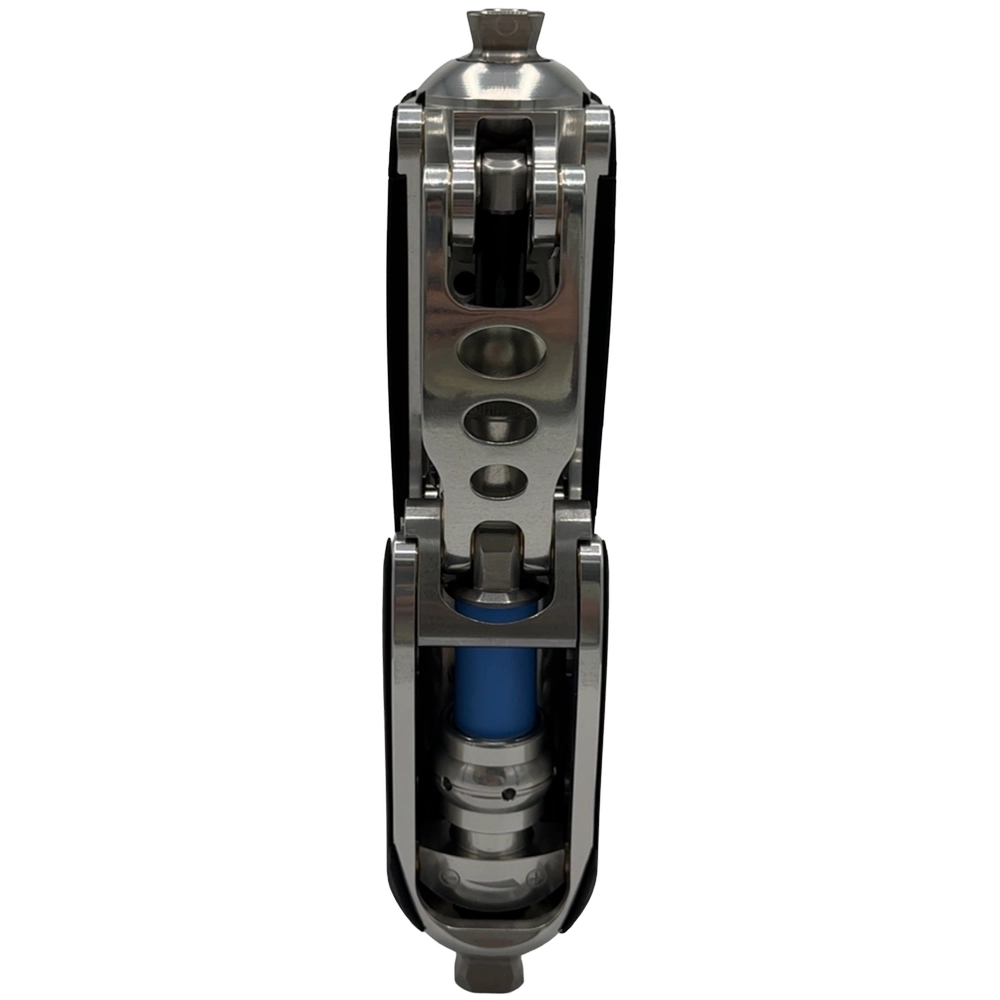

The KN-200 is an advanced polycentric mechanical prosthetic knee joint designed to provide stable, smooth, and comfortable movement in everyday use. Its highly engineered structure supports controlled stance-phase flexion for improved shock absorption and a more natural gait pattern. The joint also offers robust hydraulic swing phase control, helping users walk seamlessly at different speeds. Thanks to its multi-axis polycentric design, the KN-200 provides increased ground clearance during the swing phase, which significantly helps reduce the risk of stumbling. Overall, it is a practical and reliable solution that combines stability, comfort, and natural biomechanical motion for daily mobility.

Technological Architecture & Adjustments


Flexion & Extension Tuning

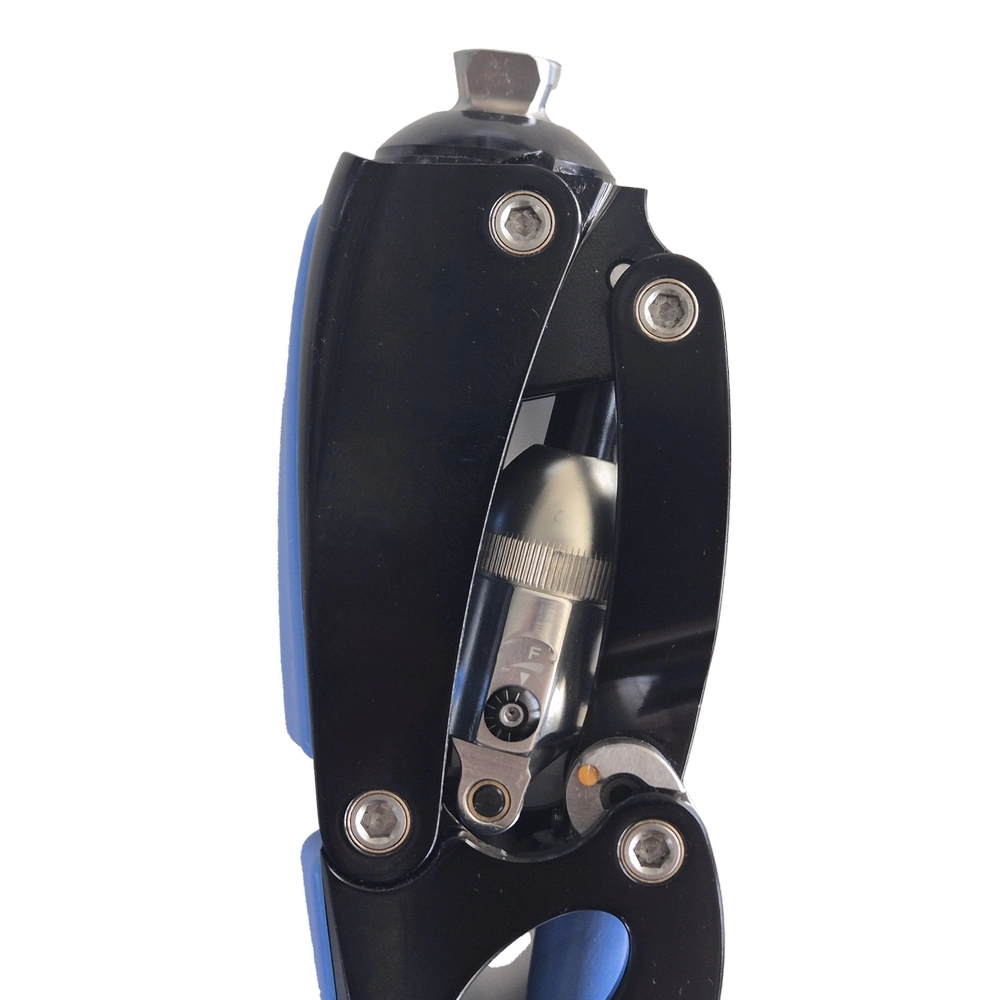

The KN-200 allows precise flexion and extension adjustment to help optimize gait performance. Flexion and Extension can be adjusted easily via dedicated valves on both the lateral and medial sides of the product, supporting smoother knee movement and overall control.


Stance Phase Flexion

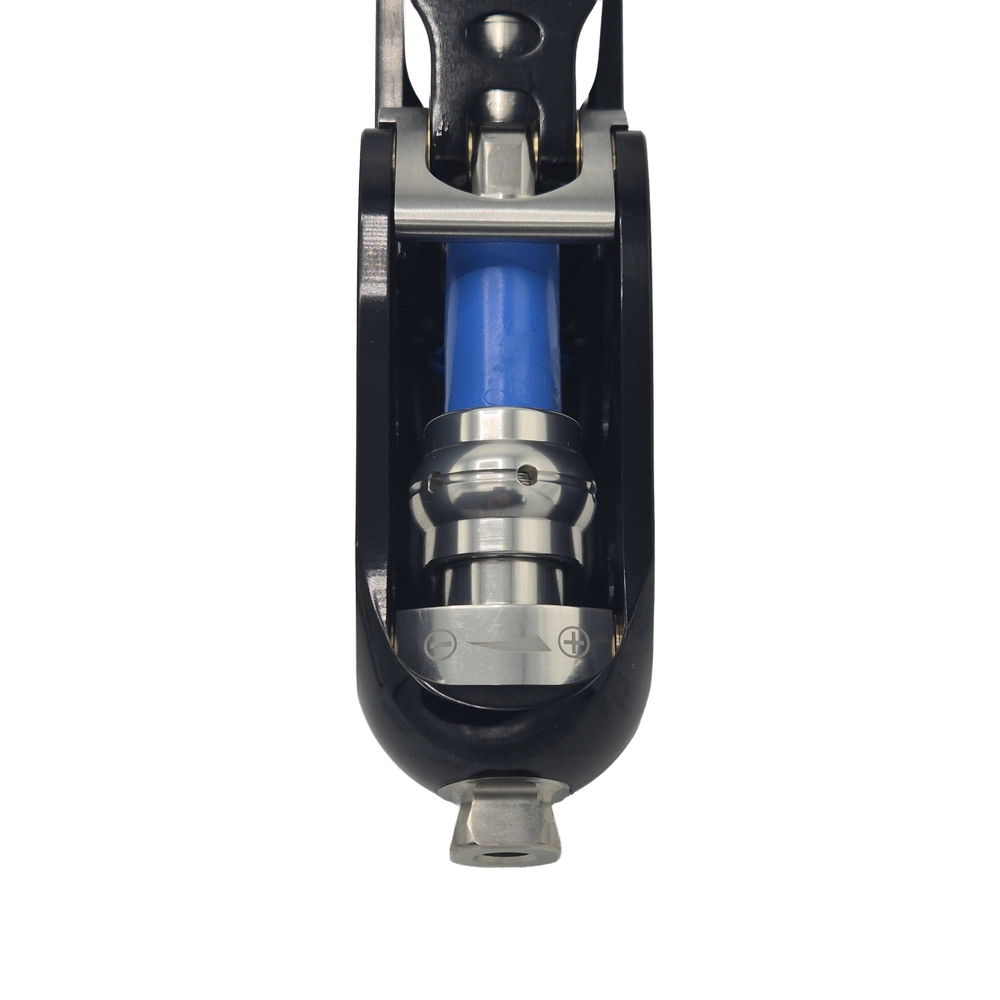

Designed to provide a smoother and more natural response at heel strike. It supports vital shock absorption during loading and reduces physical stress. Stance damping can be easily calibrated via the adjustment ring located on the posterior of the product.

Technical Specifications

Product NameKN-200
Proximal ConnectionPyramid Adapter
Distal ConnectionPyramid Adapter
Product Weight865 gr

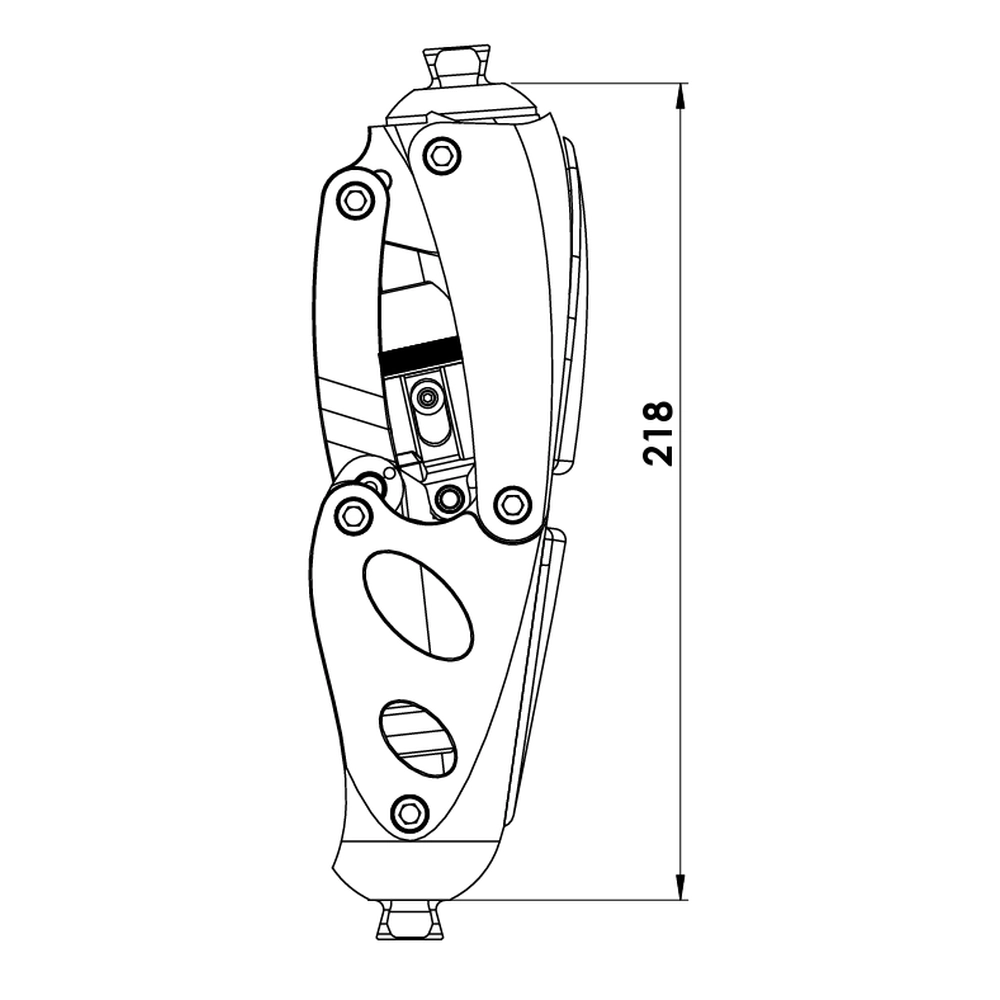

Overall Length / Build Height239 mm / 218 mm
Max. User Weight125 Kg
Max. Knee Flexion Angle150°
Max. Stance Flexion Angle15°
