Locking Mechanism
4-Bar Polycentric
CE
ISO 10328 Tested
Functional Highlights
Dual Mode: Switchable Locked or Unlocked.
Rehabilitation: Ideal for first standing exercises.
Geometry: High ground clearance (4-Bar).
Adjustment: Integrated shift (5mm).

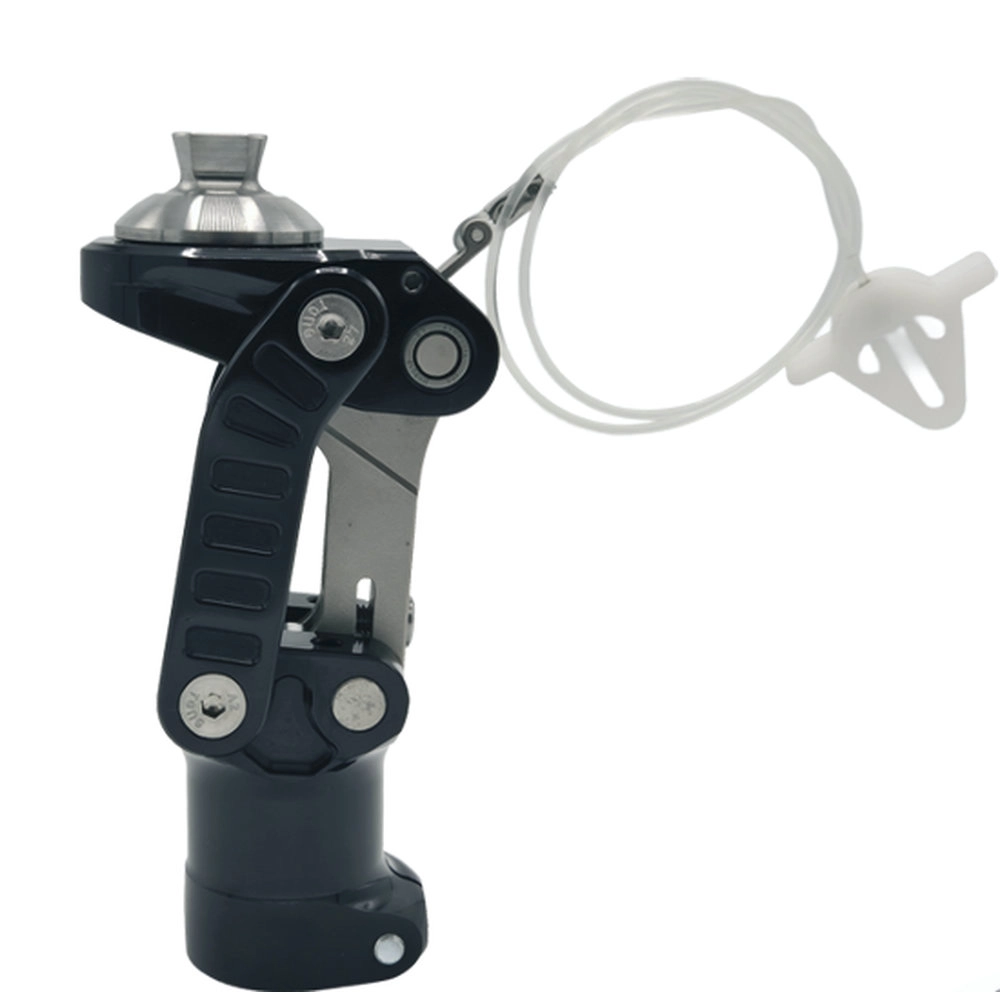

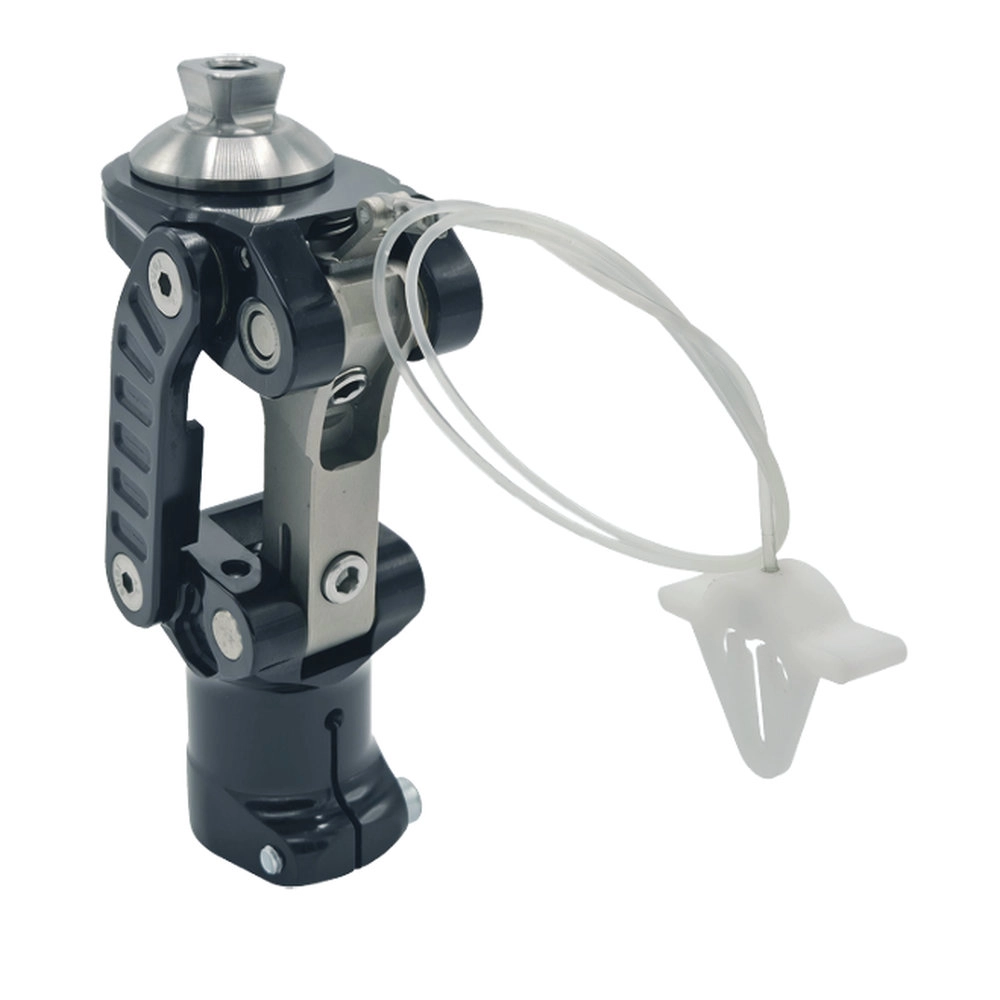

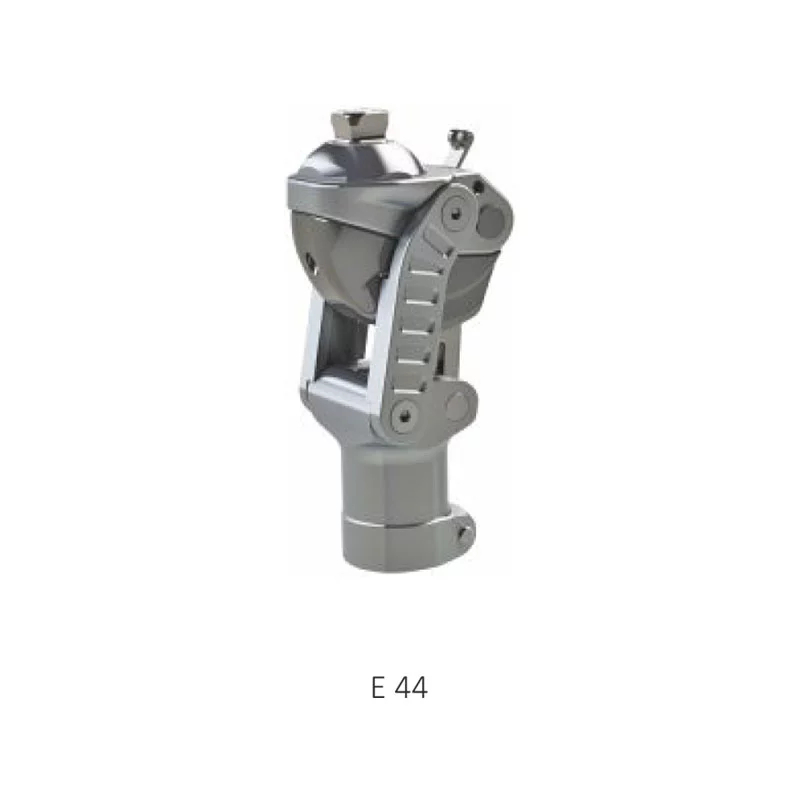

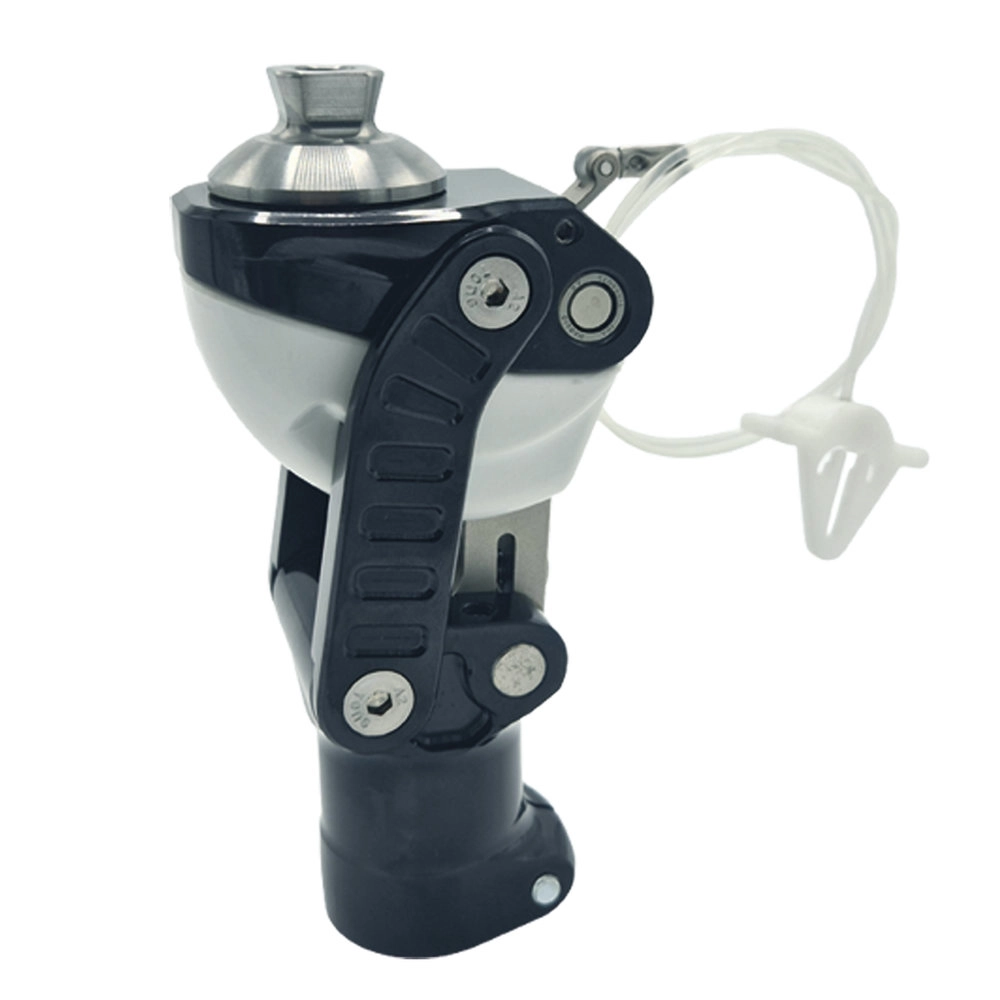

The E 44 Polycentric Knee Joint is a versatile mechanical 4-bar locking polycentric knee designed specifically for K1-K2 prosthetic knee users.. It features a high-safety locking function, making it ideal for initial rehabilitation, standing, and walking exercises. As the patient progresses, the locking mechanism can be cancelled to allow free swing. Its polycentric design ensures excellent ground clearance for a safer, more confident gait.
Technological Architecture
Cancel-able Locking
Provides maximum stability during early rehabilitation. Once the user gains confidence, the lock can be disengaged to enable the joint’s polycentric motion, adapting to the user’s improving mobility.
Polycentric Kinematics
The 4-bar linkage system effectively shortens the leg during the swing phase, providing increased toe clearance. This design minimizes the risk of stumbling and ensures a safer gait pattern.
Technical Specifications

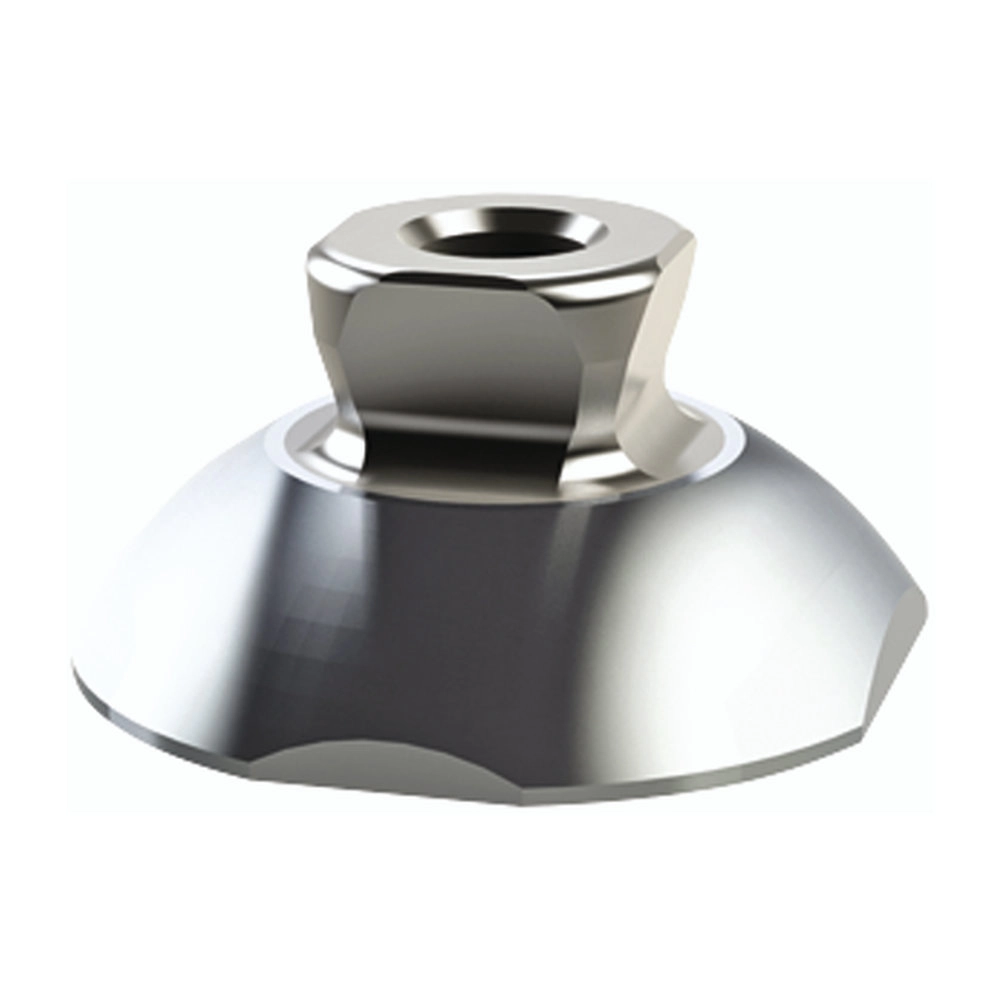

| Product Name (Pyramid) | E 44-A |

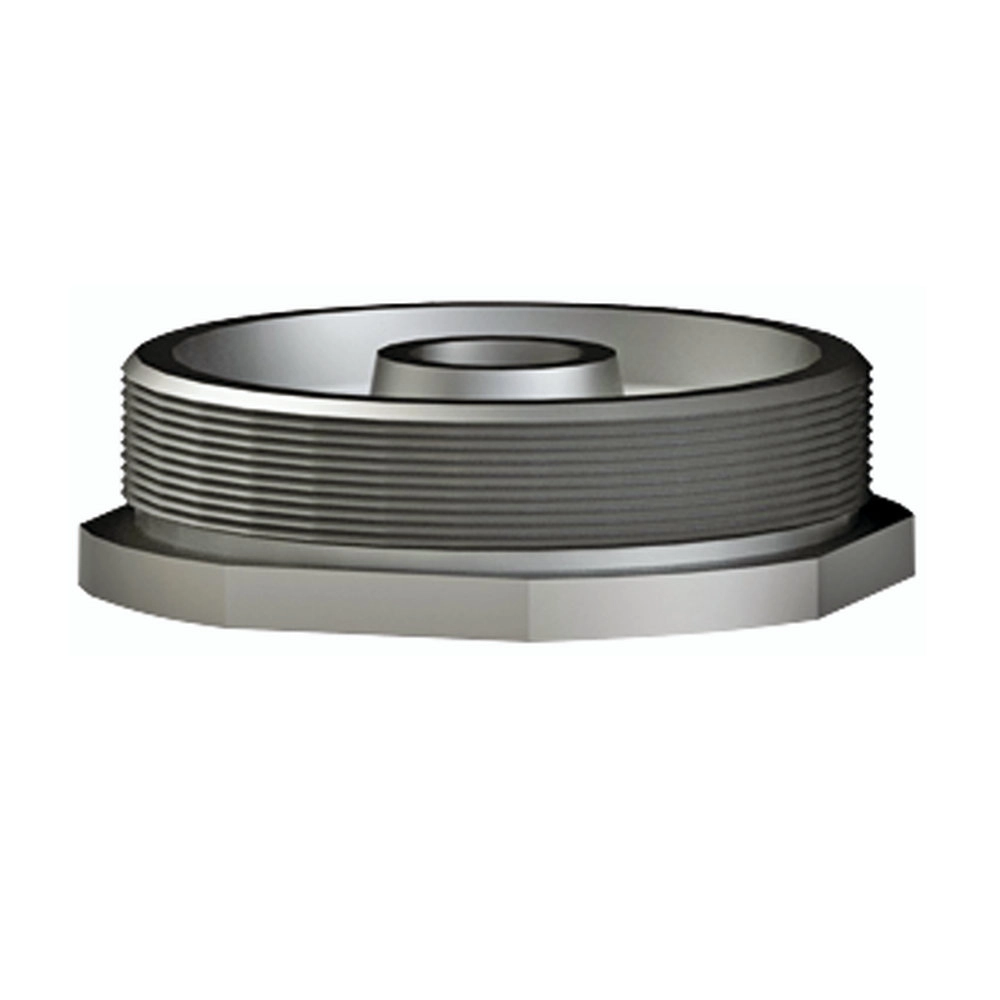

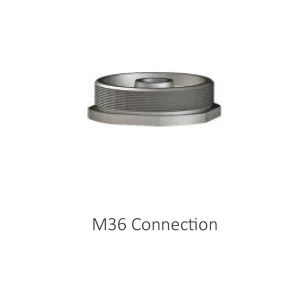

| Product Name (M36) | E 44-B |

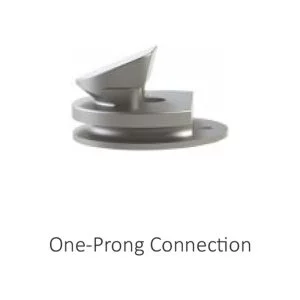

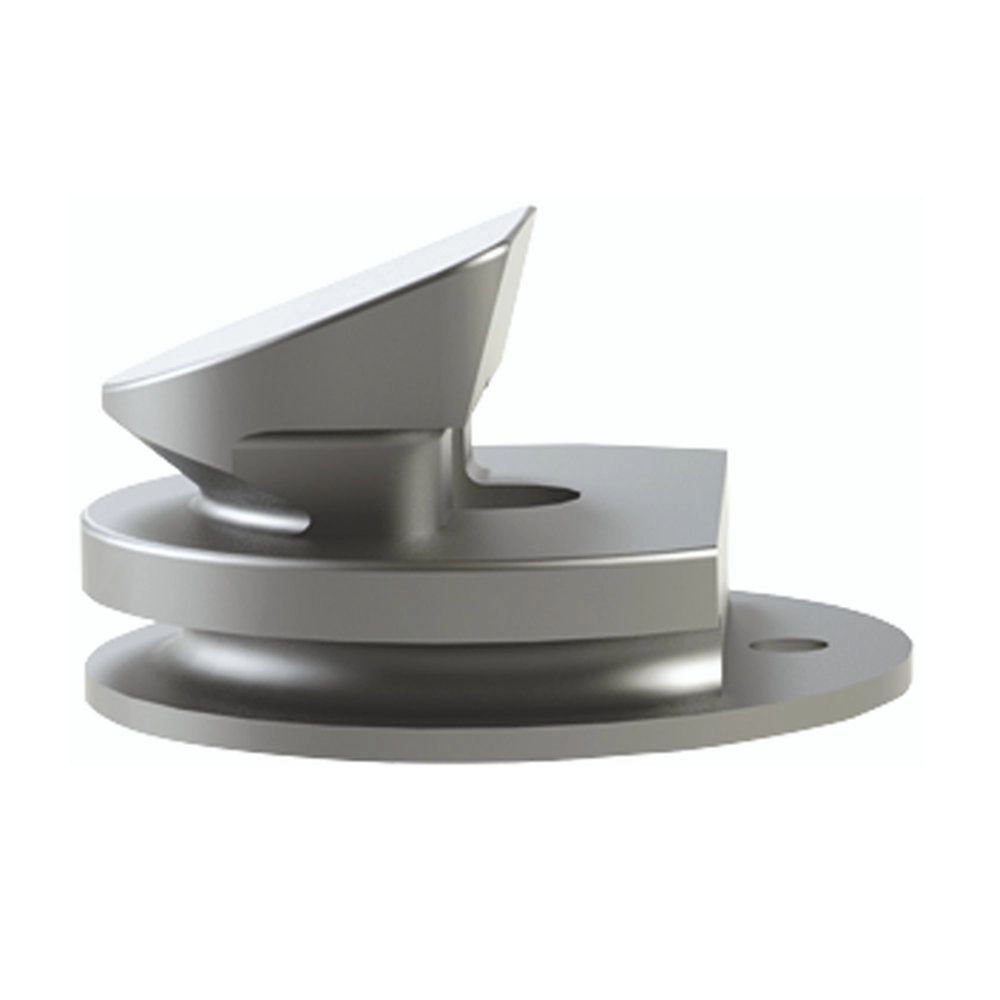

| Product Name (One-Prong) | E 44-C |
| Advised Activity Level | K1 – K2 |
| Material | Aluminum |
| Max User Weight | 125 Kg |
| Flexion Angle | 150° |
| Product Weight | 680 g |

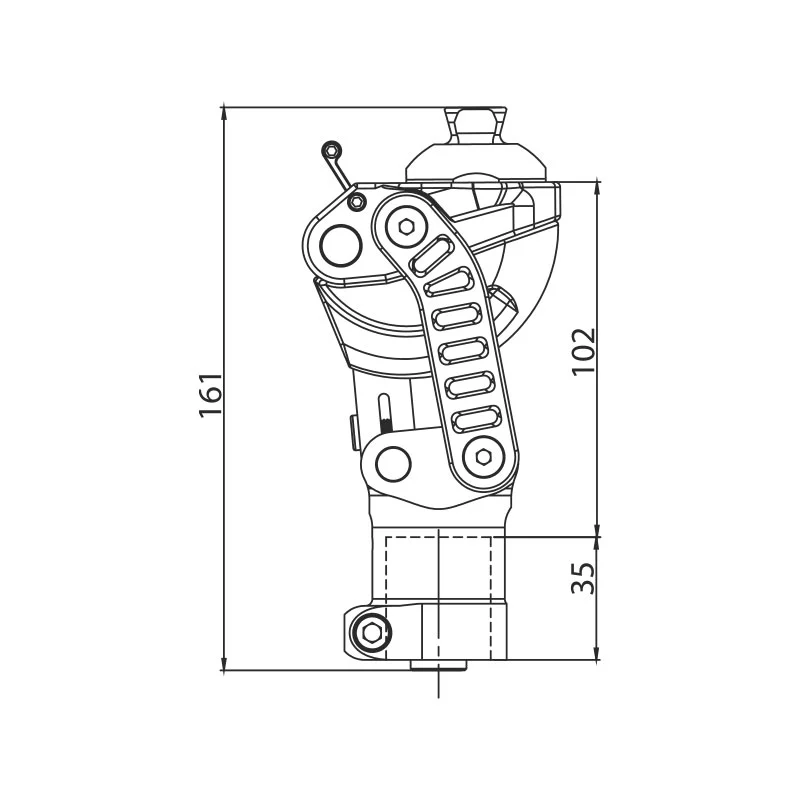

| Overall Length / Build Height | 161 mm / 102 mm |
