Modular Single Axis Foot Adapter
Modular Single Axis Foot Adapter - Image 2
Modular Single Axis Foot Adapter - Image 3

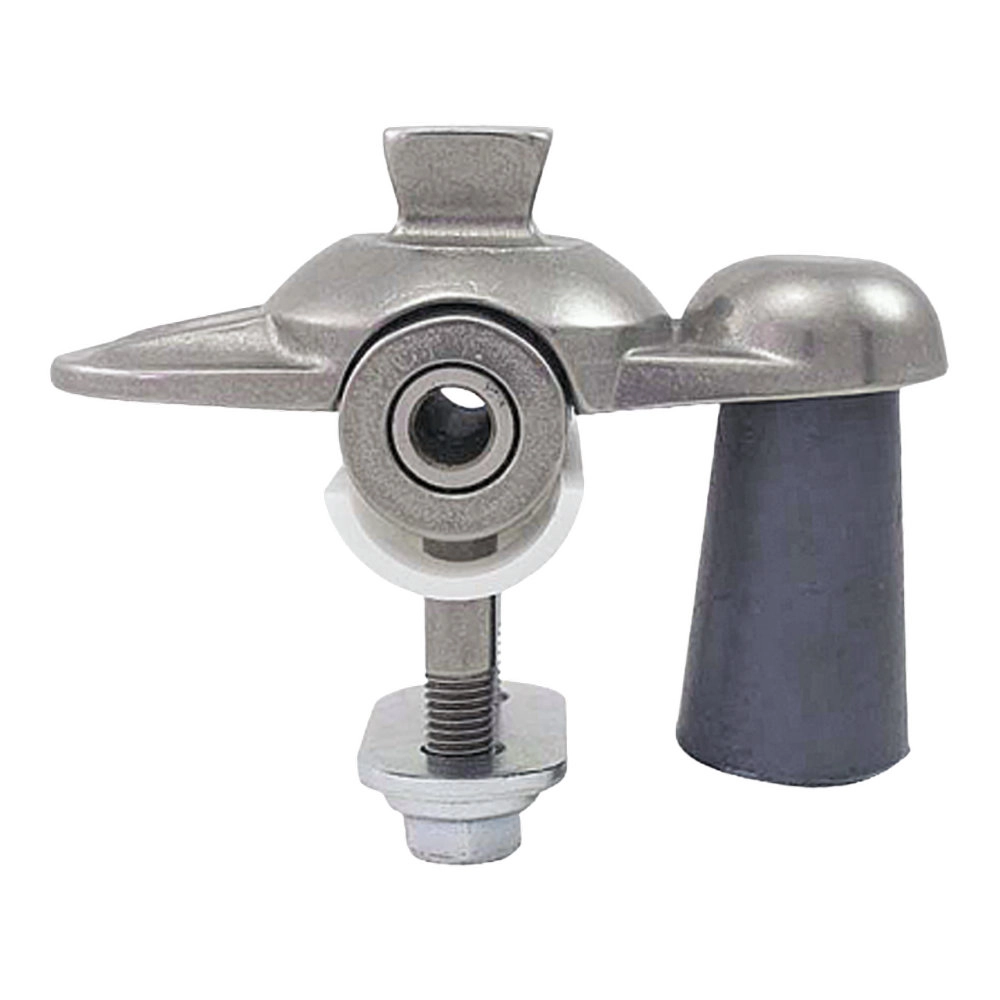

The Modular Single Axis Foot Adapter is a high-quality prosthetic foot adapter specifically engineered to provide a secure and stable connection between single-axis feet and modular pyramid receivers.

Modular Single Axis Foot Adapter


✔ CE
🛡️ Medical Grade
☀️ ISO 10328 Tested

Product Highlights


Secure Connection

Specially designed to connect Single-Axis Feet with an adapter pyramid receiver securely, ensuring the Modular Single Axis Foot Adapter provides long-term structural integrity.

Material Options

Available in Stainless Steel, Titanium, and Aluminum to suit patient needs.

High Durability

Engineered to support user weights up to 125 kg (Steel & Titanium versions).

Technical Specifications

CodeSizeMaterialWeightWeight Limit

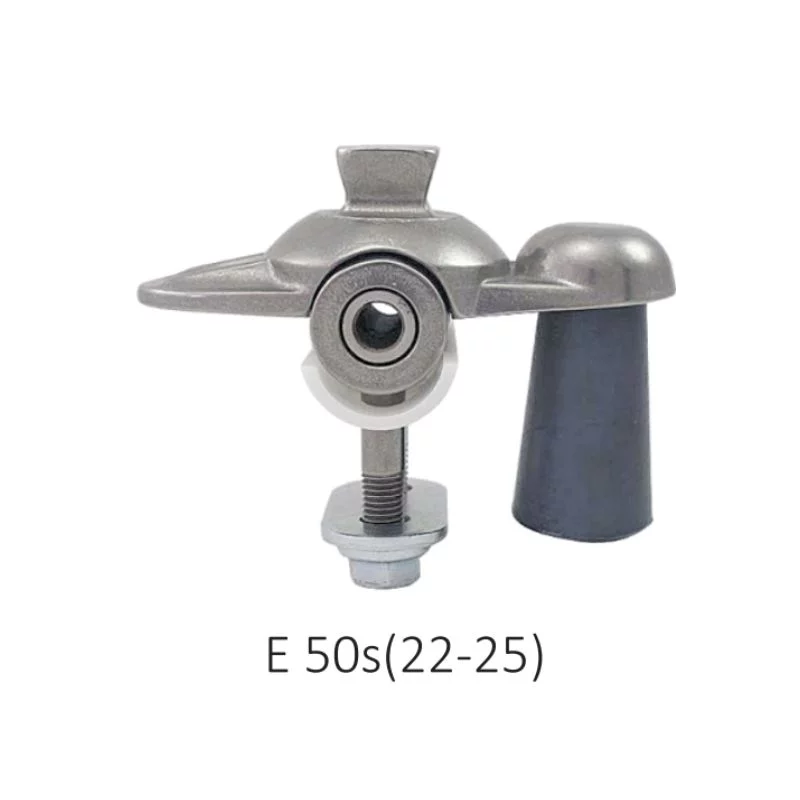

E 50s (22-25)22-25Stainless Steel311 gr125 kg
E 50s (26-30)26-30Stainless Steel326 gr125 kg
E 50T (22-25)22-25Titanium221 gr125 kg
E 50T (26-30)26-30Titanium230 gr125 kg

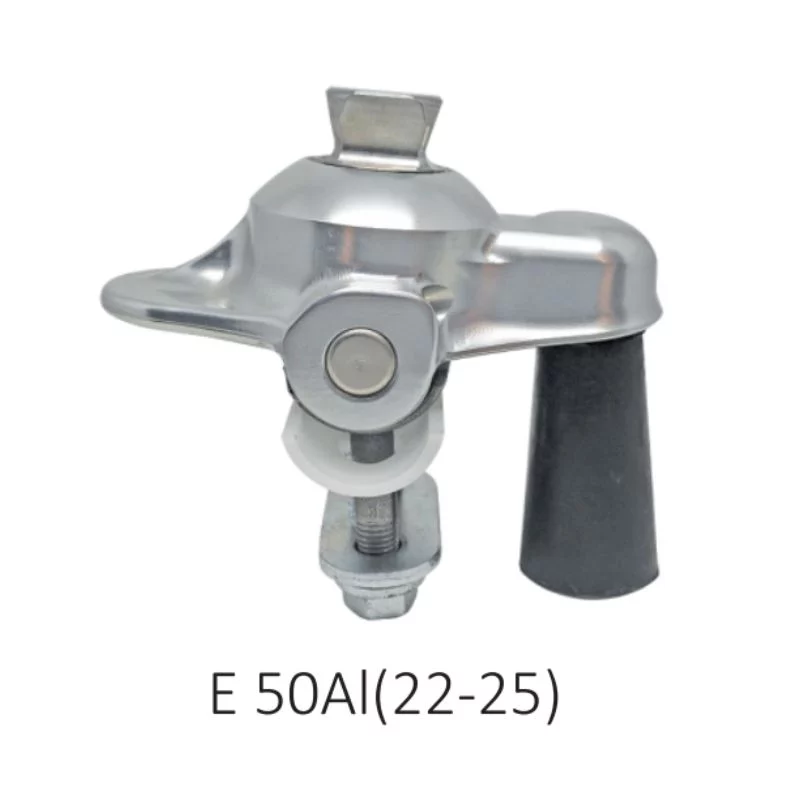

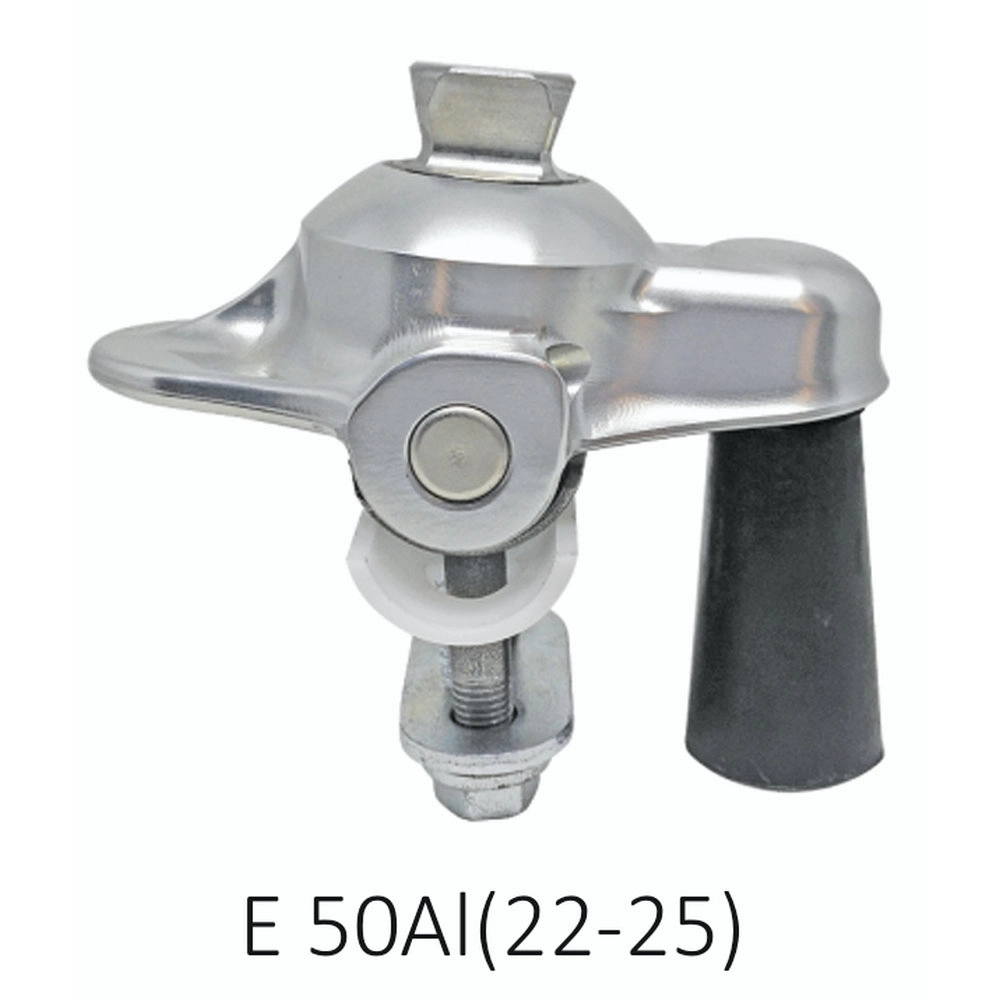

E 50Al (22-25)22-25Aluminum215 gr100 kg



PDF

Instructions For Use
