Polyform

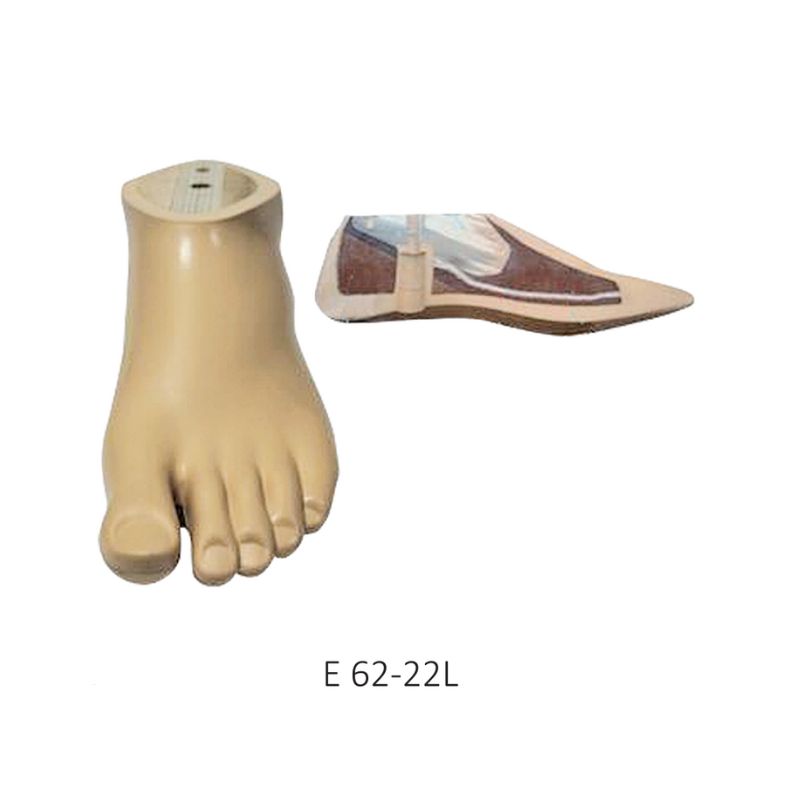

Dynamic Foot

  • Manufactured with soft heel material and belt inside
  • Update: Waterproof
  • The foot comes together with the Adapter
  • Waterproofing is only valid if its adapter is not replaced
  • All sizes come as separate toe

Order Example

Compare
Add to wishlist
SKU: SKU-110-2-1-2 Category: Prosthetic Foot & Modular Adapters
Share:
  • Description
  • Shipping & Delivery
Description
Code Foot Size Load Weight Heel Height Side
E 62-22L/R 22 100 kg 10 mm L/R
 E 62-23L/R 23 100 kg 10 mm L/R
 E 62-24L/R 24 100 kg 10 mm L/R
 E 62-25L/R 25 100 kg 10 mm L/R
 E 62-26L/R 26 100 kg 10 mm L/R
 E 62-27L/R 27 100 kg 10 mm L/R
 E 62-28L/R 28 100 kg 10 mm L/R
 E 62-29L/R 29 100 kg 10 mm L/R
