Home Prosthetic Foot & Modular Adapters 8 Screw Double Adapter
Double Adapter Pyramid/Pyramid $29.00
Back to products
Angled Tube Clamp Adapter for Children $29.00

8 Screw Double Adapter

$29.00

  • The double adapters are used to connect two pyramid adapters. The pyramid receivers make it possible to make distal and proximal angle adjustments in the frontal and sagittal planes

Dual adapter is available in different sizes

Compare
Add to wishlist
SKU: SKU-110-2-1-1-1-2-4-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1 Category: Prosthetic Foot & Modular Adapters
Share:
  • Description
  • Shipping & Delivery
Description

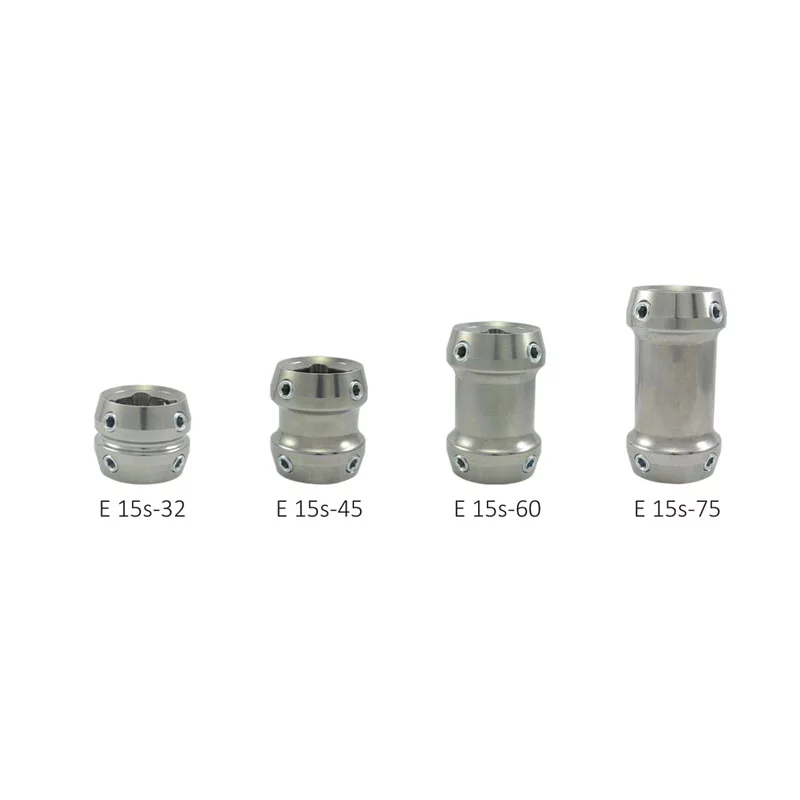

 Code Height  Material Weight Weight Limit
E 15s-32 32 mm Stainless Steel 130 gr 125 kg
E 15s-45 45 mm Stainless Steel 148 gr 125 kg
E 15s-60 60 mm Stainless Steel 167 gr 125 kg
E 15s-75 70 mm Stainless Steel 185 gr 125 kg
 Code Height  Material Weight Weight Limit
E 15T-32 32 mm Titanium 86 gr 125 kg
E 15T-45 45 mm Titanium 98 gr 125 kg
E 15T-60 60 mm Titanium 110 gr 125 kg
E 15T-75 70 mm Titanium 120 gr 125 kg
 Code Height  Material Weight Weight Limit
E 15Al-32 32 mm Aluminum 85 gr 100 kg
E 15Al-45 45 mm Aluminum 102 gr 100 kg
E 15Al-60 60 mm Aluminum 112 gr 100 kg
E 15Al-75 70 mm Aluminum 120 gr 100 kg
