Long Rotatable Pyramids and Receivers

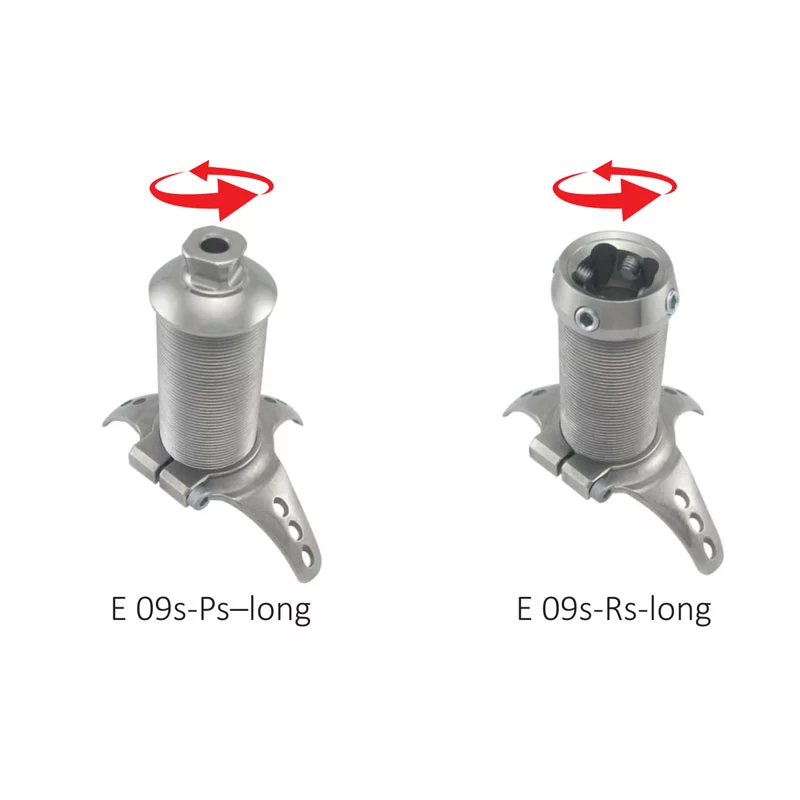

3 Prong Socket Adapter W/Rotating Pyramid and Receiver

Compare
Add to wishlist
SKU: SKU-110-2-1-1-1-2-4-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1 Category:
Description
 Code  Material Weight Weight Limit
E 09s-Ps-Long Stainless Steel / Stainless Steel 285 gr 125 kg
E 09s-PT-Long Stainless Steel / Titanium 212 gr 125 kg
E 09s-Rs-long Stainless Steel / Stainless Steel 295 gr 125 kg
E 09s-RT-long Stainless Steel / Titanium 215 gr 125 kg
Shipping & Delivery
