Home Prosthetic Foot & Modular Adapters Double Adapters with Adjustment Screws
Double Adapter Pyramid/Pyramid
Back to products
Pyramid Adapter with M36 Inner Thread

Double Adapters with Adjustment Screws

  • Double adapters have pyramid adjustment cores on both sides.
  • M8 adjustment screws are zinc-coated.
  • Under the certain demand, titanium versions can be converted to the Waterproof product with water discharge channels and A2 Stainless Steel set screws.
Compare
Add to wishlist
SKU: SKU-110-2-1-1-1-2-4-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-2 Category: Prosthetic Foot & Modular Adapters
Share:
  • Description
  • Shipping & Delivery
Description
 Code  Height  Material Weight Weight Limit

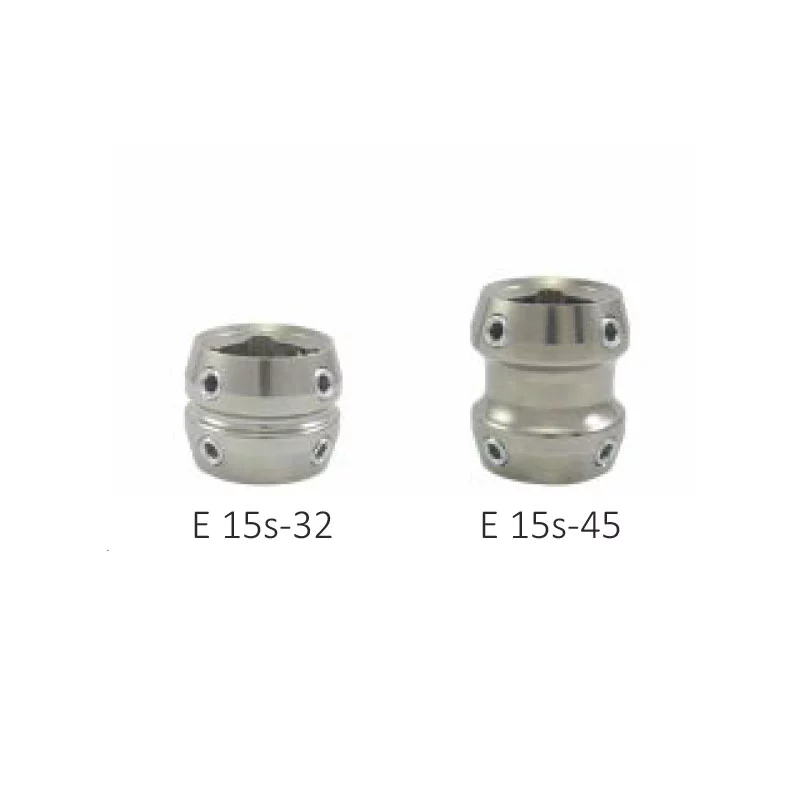

E 15s-32  32 mm Stainless Steel 130 gr 125 kg
E 15s-45  45 mm Stainless Steel 148 gr 125 kg

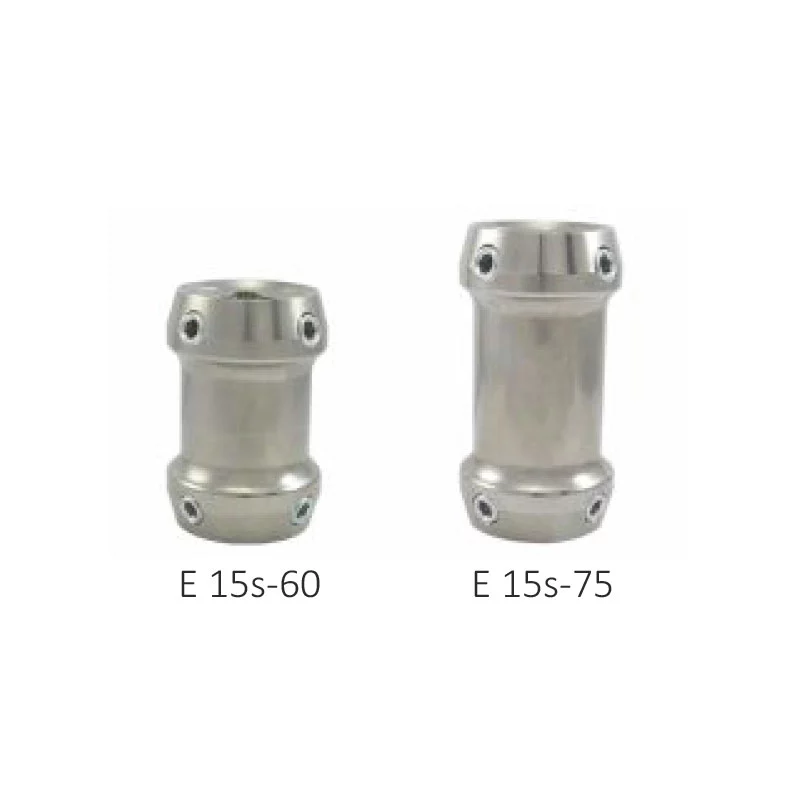

E 15s-60  60 mm Stainless Steel 167 gr 125 kg
E 15s-75  75 mm Stainless Steel 185 gr 125 kg
 Code  Height  Material Weight Weight Limit

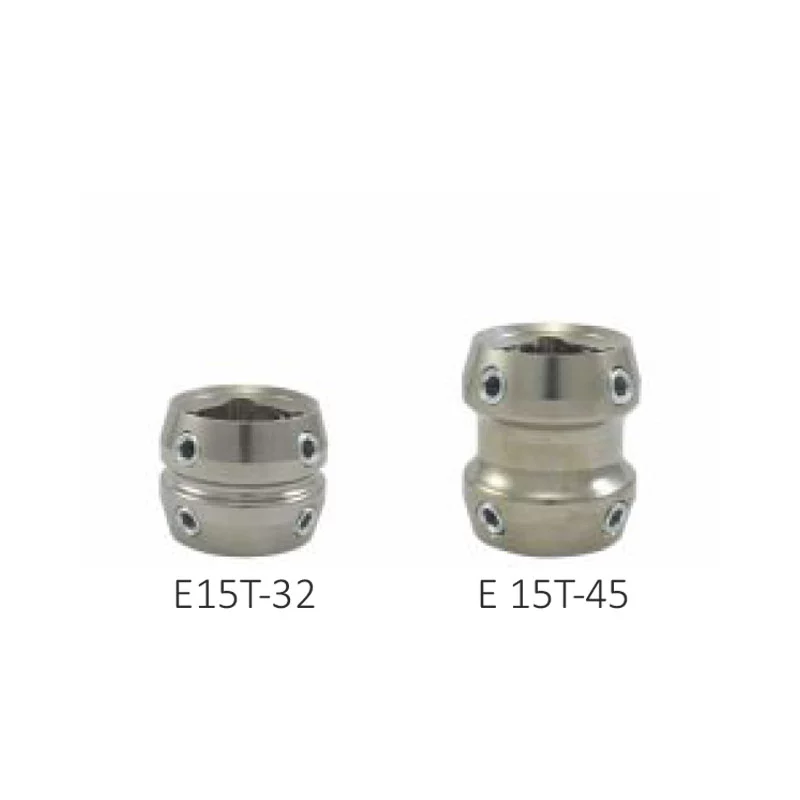

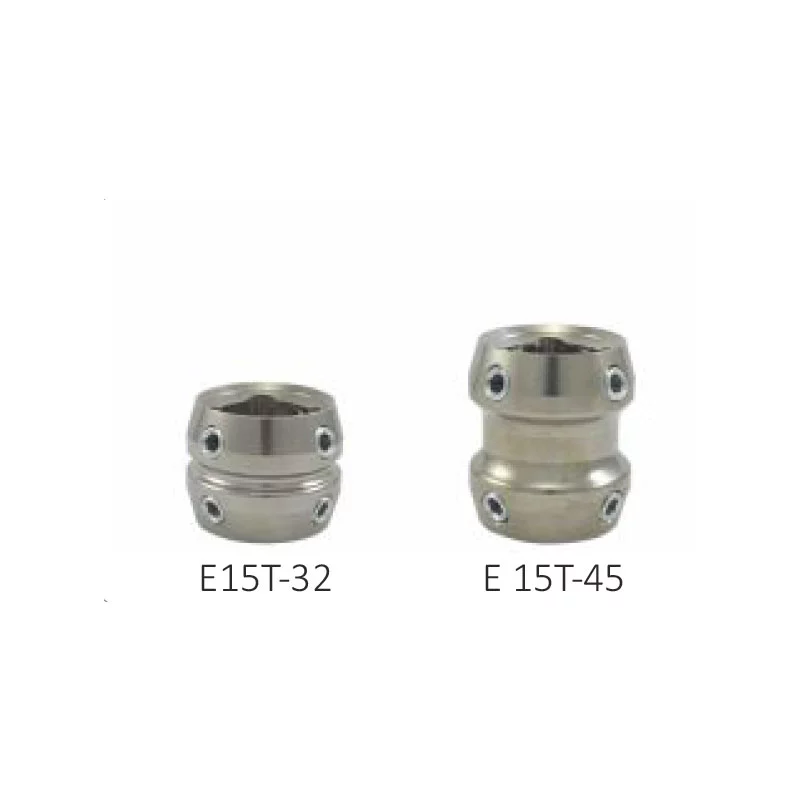

E 15T-32  32 mm Titanium 86 gr 125 kg
E 15T-45  45 mm Titanium 98 gr 125 kg

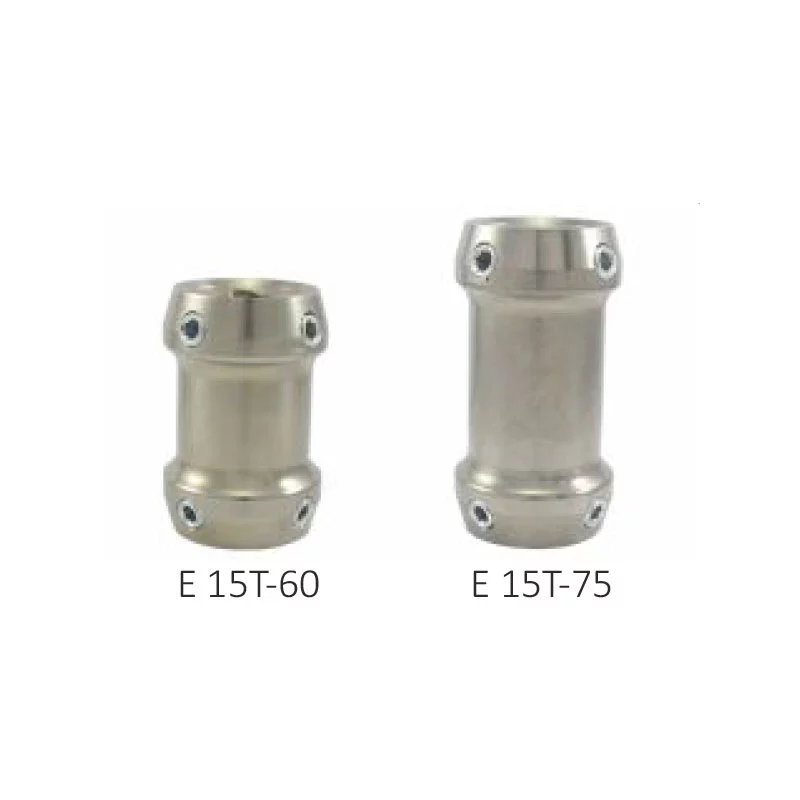

E 15T-60  60 mm Titanium 110 gr 125 kg
E 15T-75  75 mm Titanium 120 gr 125 kg
 Code  Height  Material Weight Weight Limit
E 15Al-32  32 mm Aluminum 85 gr 100 kg
E 15Al-45  45 mm Aluminum 102 gr 100 kg
E 15Al-60  60 mm Aluminum 112 gr 100 kg
E 15Al-75  75 mm Aluminum 120 gr 100 kg
Shipping & Delivery
