Type-30 | Ankle Joint

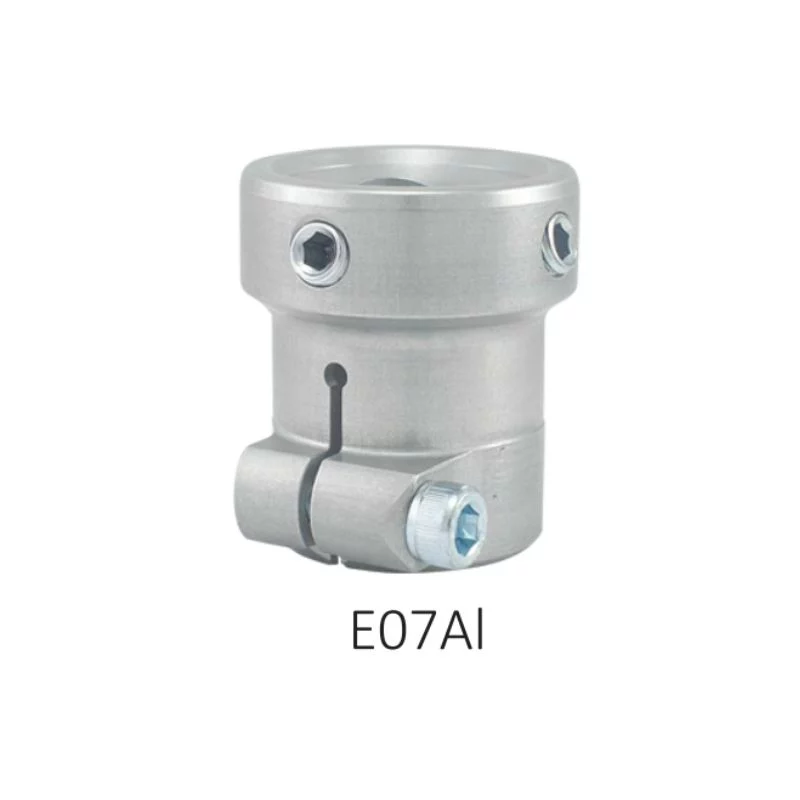

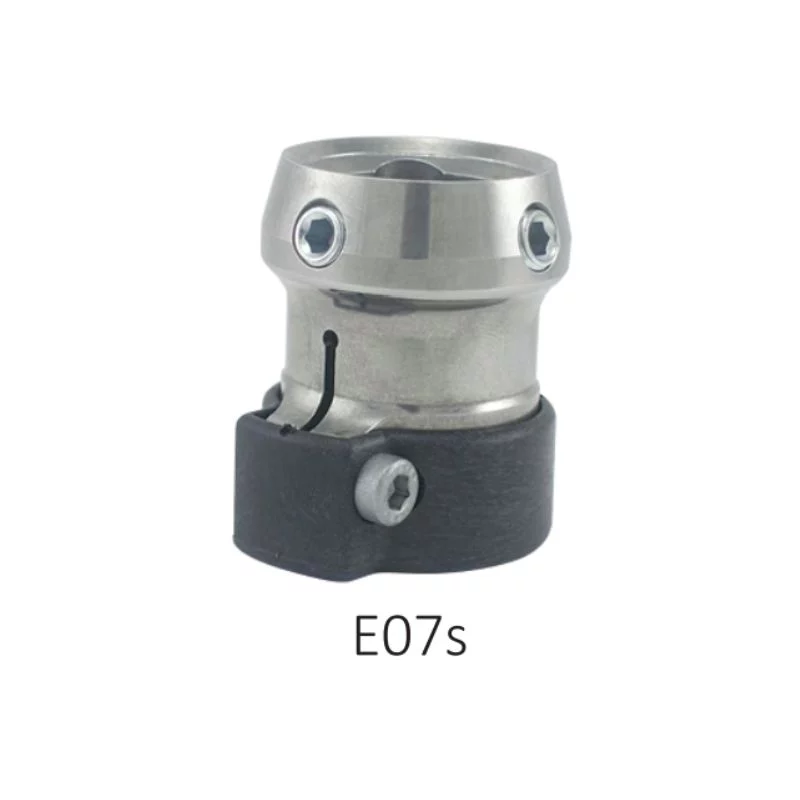

Tube Clamp Adapters

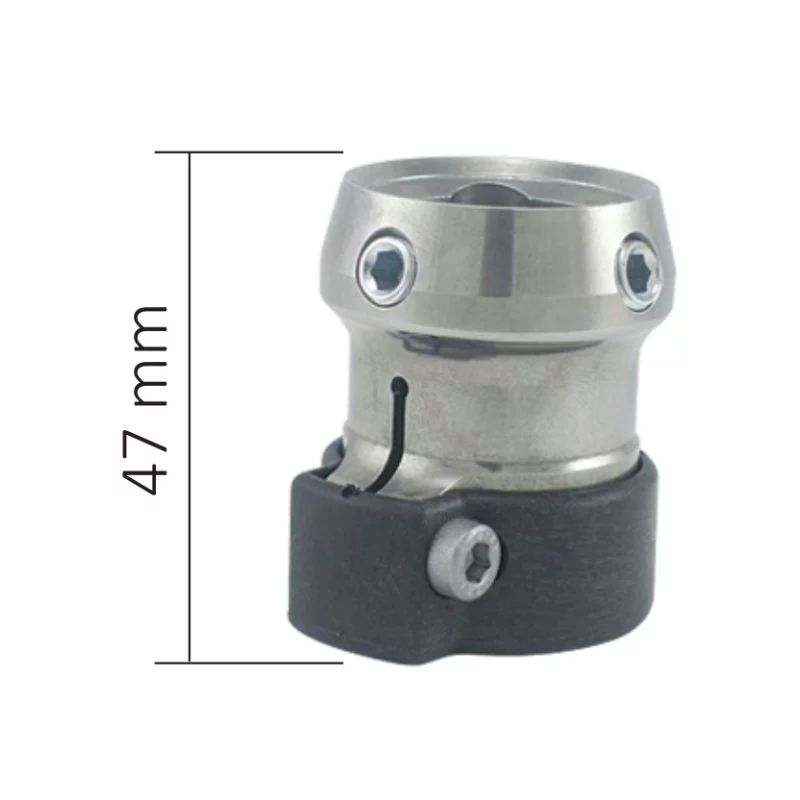

  • Standard tube clamp adapters with the height of 47 mm.
  • For the tubes of Dia. 30 mm.
  • M8 Set-Screws are zinc-coated
  • Titanium versions have special “Water Channels” for proper water discharge and contains A2 Stainless Steel Set-Screws
Compare
Add to wishlist
SKU: SKU-110-2-1-1-1-2-4-1-1-1-1-1-1-1-1-1-1-1-1 Category: Prosthetic Foot & Modular Adapters
