Type-10 | Ankle Joint
Back to products
Ankle Joint: Parts

Diameter 34 Tube Assembly

  • Outer diameter is 34 mm.
  • Limit weight is 134 kg.
Compare
Add to wishlist
SKU: SKU-110-2-1-1-1-2-4-1-1-1-1-1-1-1-1-1 Category:
Description
 Code Lentgh  Material Weight Weight Limit

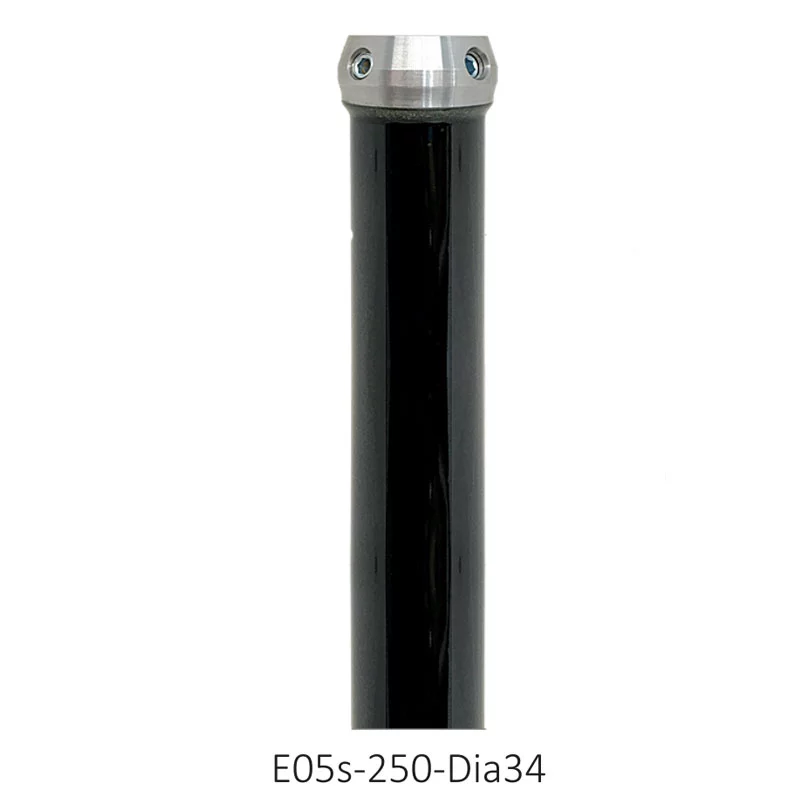

E05s-250-Dia34 250 Stainless Steel 270 gr 134 kg
E05s-400-Dia34 400 Stainless Steel 350 gr 134 kg
E05T-250-Dia34 250 Titanium 215 gr 134 kg
E05T-400-Dia34 400 Titanium 300 gr 134 kg
