Home Prosthetic Foot & Modular Adapters Tube Assembly
Diameter 34 Tube Assembly $29.00
Back to products
Rotating 4 Hole Adapter W/Fixed Receiver $29.00

Tube Assembly

$29.00

  • Tube adapters are used as components for modular lower limb prostheses. They connect the prosthetic foot to the proximal components. Adapter combinations allow for controlled angle and length adaptation in the sagittal and frontal plane as well as adjustment of inward and outward rotation
  • Available lengths 250mm-400mm
Compare
Add to wishlist
SKU: SKU-110-2-1-1-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-2 Category: Prosthetic Foot & Modular Adapters
Share:
  • Description
  • Reviews (0)
  • Shipping & Delivery
Description
 Code Lentgh  Material Weight Weight Limit

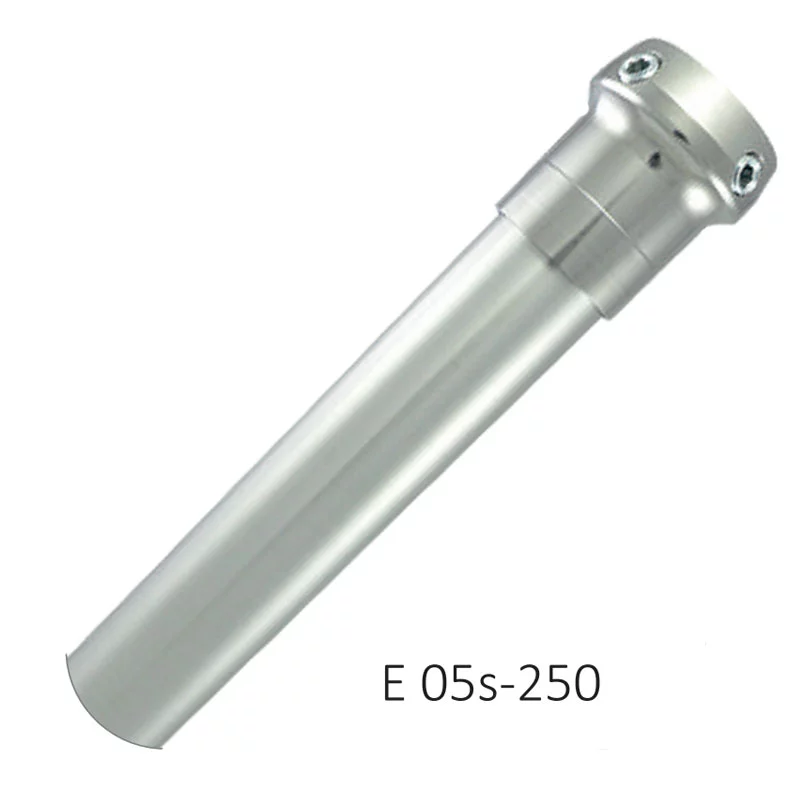

E 05s-250 250 Stainless Steel 207 gr 100 kg
E 05s-400 400 Stainless Steel 272 gr 100 kg
E 05s-400-134 kg 400 Stainless Steel 285 gr 134 kg
E 05s-250-134 kg 250 Stainless Steel 236 gr 134 kg
 Code Lentgh  Material Weight Weight Limit
E 05T-250 250 Titanium 167 gr 100 kg
E 05T-400 400 Titanium 230 gr 100 kg
E 05T-400-134 kg 400 Titanium 245 gr 134 kg
E 05T-250-134 kg 250 Titanium 197 gr 134 kg
 Code Lentgh  Material Weight Weight Limit

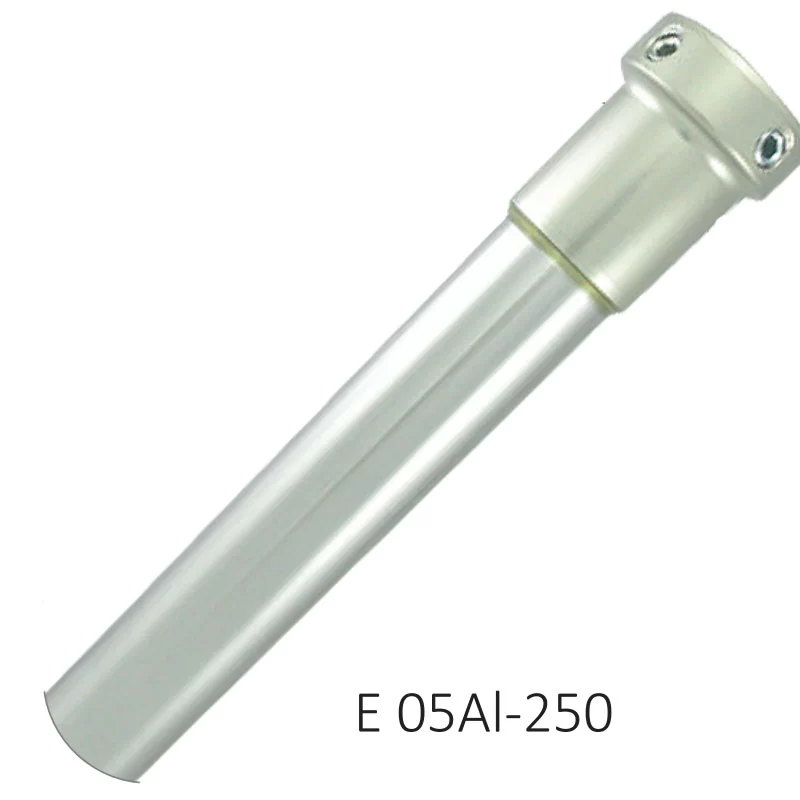

E 05Al-250 250 Aluminum 188 gr 100 kg
E 05Al-400 400 Aluminum 270 gr 100 kg
