10d – 20d Angled Tube Assembly

  • 10 ° – 20 ° tilted pyramid receiver adapter
  • Available in Stainles steel and Titanium
  • Available lengths 250mm-400mm
Compare
Add to wishlist
SKU: SKU-110-2-1-1-1-2-4-1-1-1-1-1-1-1-1-1-1 Category:
Description

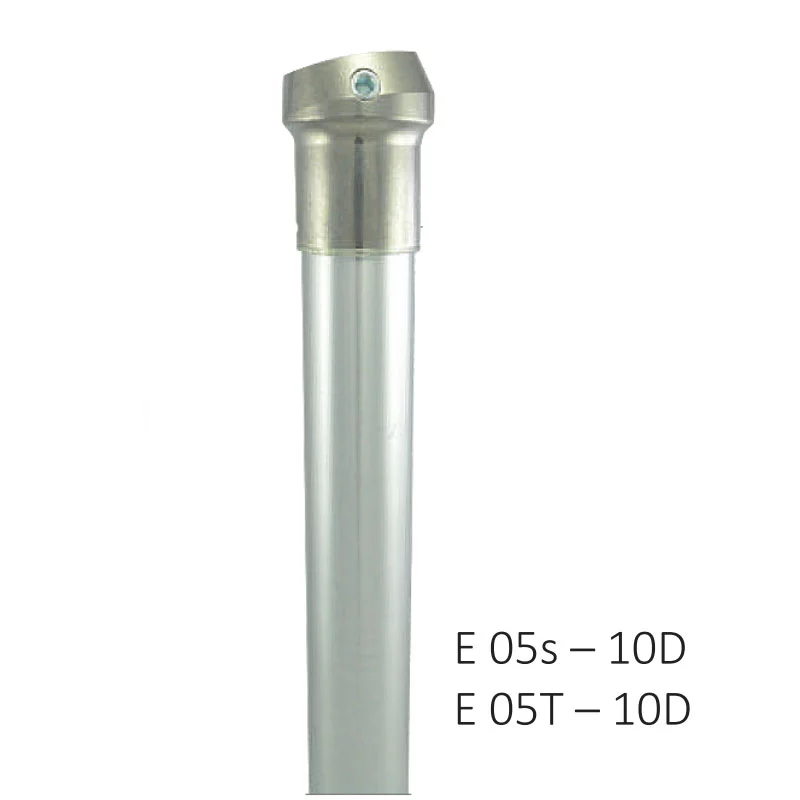

10° Tilted

 Code Lentgh  Material Weight Weight Limit
E05s-10D-250 250 Stainless Steel 212 gr 125 kg
E05s-10D-400 400 Stainless Steel 276 gr 125 kg
E05T-10D-250 250 Titanium 170 gr 125 kg
E05T-10D-400 400 Titanium 233 gr 125 kg

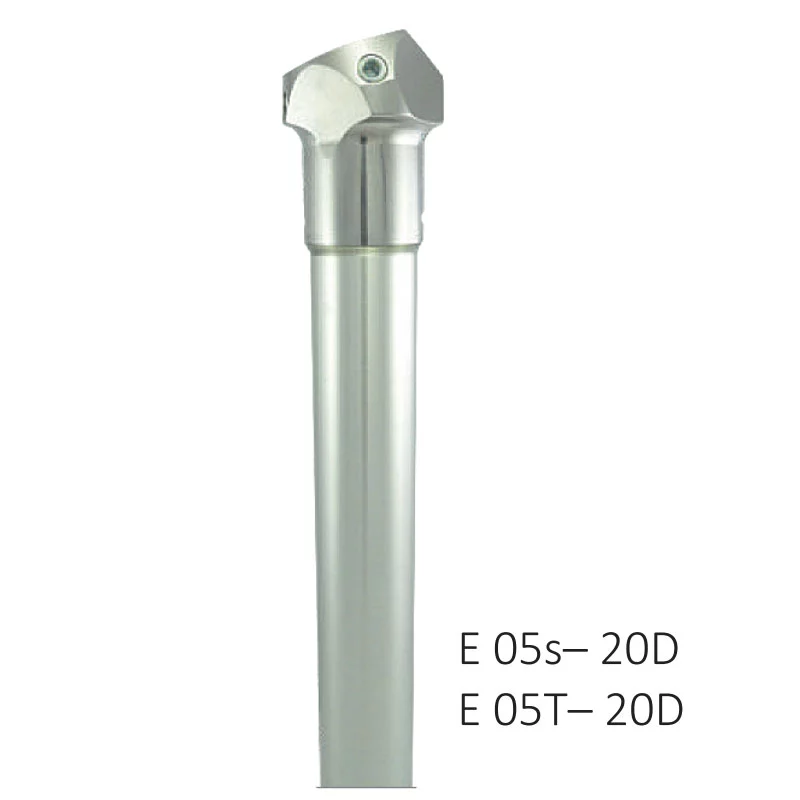

20° Tilted

 Code Lentgh  Material Weight Weight Limit
E05s-20D-250 250 Stainless Steel 241 gr 125 kg
E05s-20D-400 400 Stainless Steel 306 gr 125 kg
E05T-20D-250 250 Titanium 186 gr 125 kg
E05T-20D-400 400 Titanium 251 gr 125 kg
