| Code | Material | Weight | Weight Limit |
| E 40 | Aluminum | 360 gr | 100 kg |

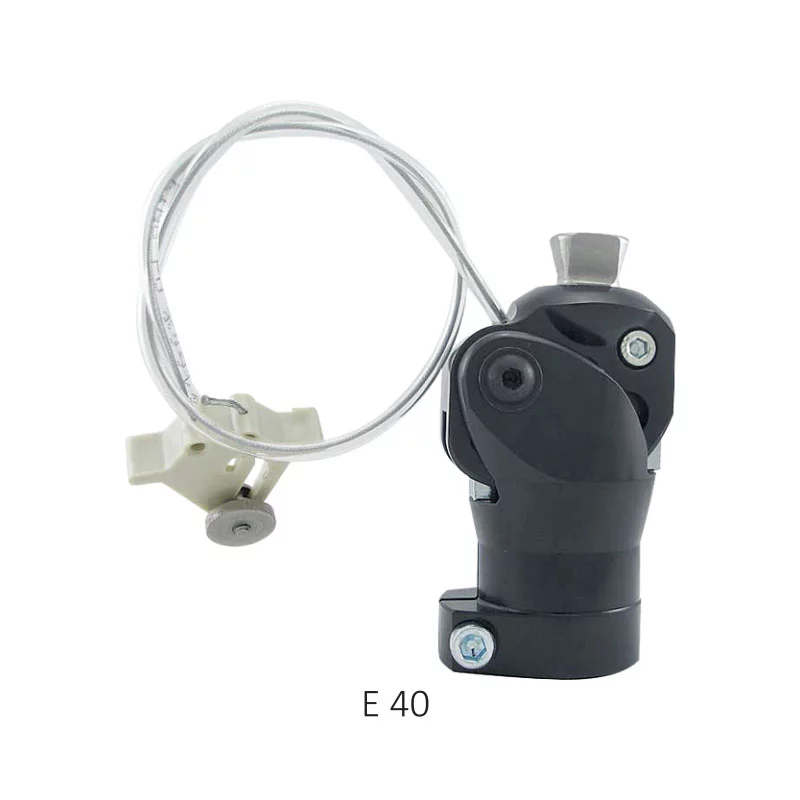

Single Axis Knee W/Lock Rotating Pyramid
- Uniaxial monocentric locked knee joint
- Made of aluminum material
- Provides 175 degrees of flexion
- Rotation pyramid
- Wire at front of the knee joint
Description
Shipping & Delivery
Related products
E 44 Polycentric Knee Joint with Extension Mechanism
- Mechanical 4-Bar polycentric knee Joint, can be used as locked or unlocked
- Locking function for a high degree of safety; ideal for first standing and walking exercises, afterwards locking function is cancel-able.
- More ground clearance for a safer and more confident gait
- Rates of flexion and extension can be adapted to the user. Flexion range is up to 150°
- Integrated shift adjustment by adapter up to 5mm.
Data Table
| Product Name with Pyramid Connection | E 44-A |
| Product Name with M36 Connection | E 44-B |
| Product Name with One-Prong Connection | E 44-C |
| Advised Activity Level | K1-K2 |
| Material | Aluminum |
| Max. User Weight | 125 Kg |
| Flexion Angle | 150° |
| Product Weight | 680 gr |
| Overall Length / Build Height | 161 mm / 102 mm |
Connection Adapter Types
PN-100 Pneumatic Knee Joint
- Flexion and Extension individual adjustments
- Pneumatic Swing Phase Control
- Internal Extension Assist
- Stability Adjustment
- All-day-use, stabile and reliable functionality
Data Table
| Product Name | PN-100 |
| Advised Activity Level | K2-K3 |
| Material | Aluminum |
| Max User Weight | 100 Kg |
| Flexion Angle | 145° |
| Product Weight | 750 Gr |
| Overall Length / Build Height | 200 mm / 146 mm |
E 86 Polycentric Knee Joint with Extension Mechanism
- Mechanical 4-Bar Polycentric Knee Joint
- Provides adjustable extension assist
- Friction control mechanism
- High knee flexion angle up to 160°
Data Table
| Product Name | E 86 |
| Advised Activity Level | K1-K2 |
| Material | Aluminum |
| Max. User Weight | 125 Kg |
| Flexion Angle | 160° |
| Product Weight | 450 gr |
| Overall Length / Build Height | 130 mm / 75 mm |
