IB-ER | PROSTHETICS
IB-ER | PROSTHETICS
Click to enlarge
Home Knee Joints Single Axis Knee W/Manuel Lock Aluminum
4 Hole Adapter W/Fixed Pyramid
Back to products
One-way Valve (VAC-300)

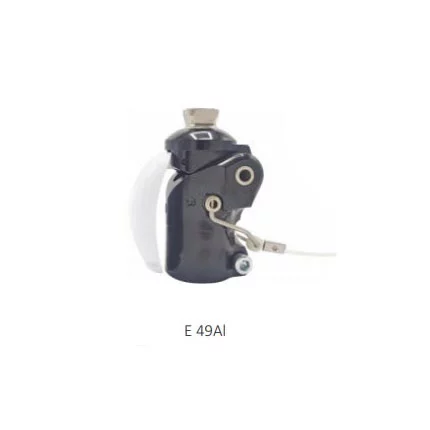

Single Axis Knee W/Manuel Lock Aluminum

  • For trans-femoral amputees
  • Low functional level
  • High stance phase stability
  • No swing phase control
  • Not recommended for patients with a medium and higher activity level
Compare
Add to wishlist
SKU: SKU-110-2-1-1-1-2-4-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1 Category: Knee Joints
Share:
  • Description
  • Shipping & Delivery
Description
 Code  Material Weight Weight Limit
E 49Al Aluminum 350 gr 100 kg
Shipping & Delivery

Related products

Compare

Single Axis Knee W/Manuel Lock

Knee Joints
  • Monocentric knee joint with manual lock
  • Up to 100 Kg body weight
  • High Stance Phase stability
  • Unlocking cable is included
  • Feature: Can be unlocked with hand click, without need of cable.
  • Feature: Waterproof! (Fresh and sea water included)
  • Pyramid, M36 and One-Prong Lamination Anchor types are available.
Add to wishlist
Quick view
Compare

E 44 Polycentric Knee Joint with Extension Mechanism

Knee Joints
  • Mechanical 4-Bar polycentric knee Joint, can be used as locked or unlocked
  • Locking function for a high degree of safety; ideal for first standing and walking exercises, afterwards locking function is cancel-able.
  • More ground clearance for a safer and more confident gait
  • Rates of flexion and extension can be adapted to the user. Flexion range is up to 150°
  • Integrated shift adjustment by adapter up to 5mm.

Data Table

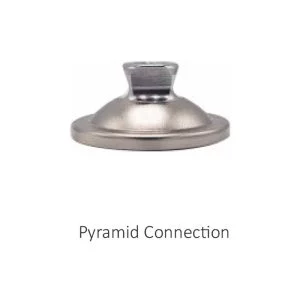

Product Name with Pyramid Connection E 44-A
Product Name with M36 Connection E 44-B
Product Name with One-Prong Connection E 44-C
Advised Activity Level K1-K2
Material Aluminum
Max. User Weight 125 Kg
Flexion Angle 150°
Product Weight 680 gr
Overall Length / Build Height 161 mm / 102 mm

Connection Adapter Types

Add to wishlist
Quick view
Compare

Single Axis Knee W/Lock Rotating Pyramid

Knee Joints
  • Uniaxial monocentric locked knee joint
  • Made of aluminum material
  • Provides 175 degrees of flexion
  • Rotation pyramid
  • Wire at front of the knee joint
Add to wishlist
Quick view
Compare

E 84 Single Axis Knee Joint with Friction and Extension Mechanism

Knee Joints
  • Monocentric and lightweight knee joint, which can be used with weight-activated friction mechanism and also comes with a lock feature
  • The knee automatically locks when extended
  • Lock feature is cancel-able anytime desired, depending on the patient's progress
  • Integrated extension assist spring is adjustable to suit individual requirements

Data Table

Product Name E 84
Advised Activity Level K1-K2
Material Aluminum
Max. User Weight 125 Kg
Flexion Angle 145°
Product Weight 490 gr
Overall Length / Build Height 115 mm / 62 mm
Add to wishlist
Quick view
Compare

Single Axis Knee

Knee Joints
  • High stance phase stability
  • Monocentric
  • With lock and spring extension assist
  • No swing phase control
Add to wishlist
Quick view
Compare

Disarticulation Knee W/Manuel Lock

Knee Joints
  • For knee disarticulation amputees
  • High stance phase stability
  • No swing phase control
Add to wishlist
Quick view
Compare

Polycentric Knee for Disarticulation

Knee Joints
  • Swing phase adjustable
  • Medium functional level
  • Medium stance phase stability
  • With self socket adapter, easy to apply on socket
Add to wishlist
Quick view
Compare

Polycentric Knee Joint

Knee Joints
  • For trans-femoral amputees
  • Medium functional level
  • Medium stance phase stability
  • Medium swing phase control
  • Can be used also for hip disarticulation
  • Not recommended for patients with a higher activity level
Add to wishlist
Quick view
