Home Lock Systems & Valves Shuttle Lock – E76
E 84 Single Axis Knee Joint with Friction and Extension Mechanism
Back to products
Modular Elbow Component Kit

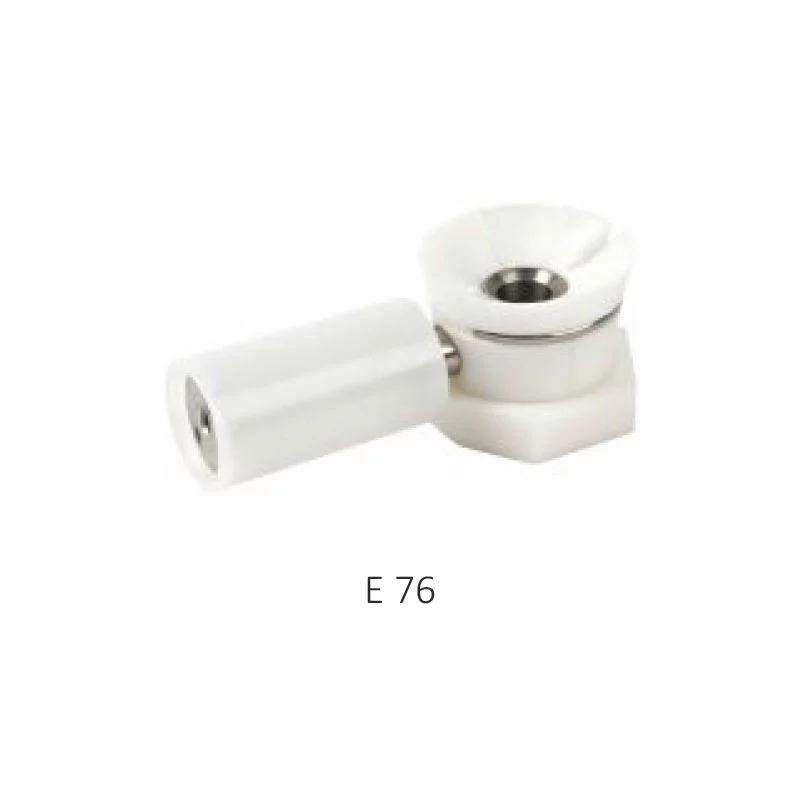

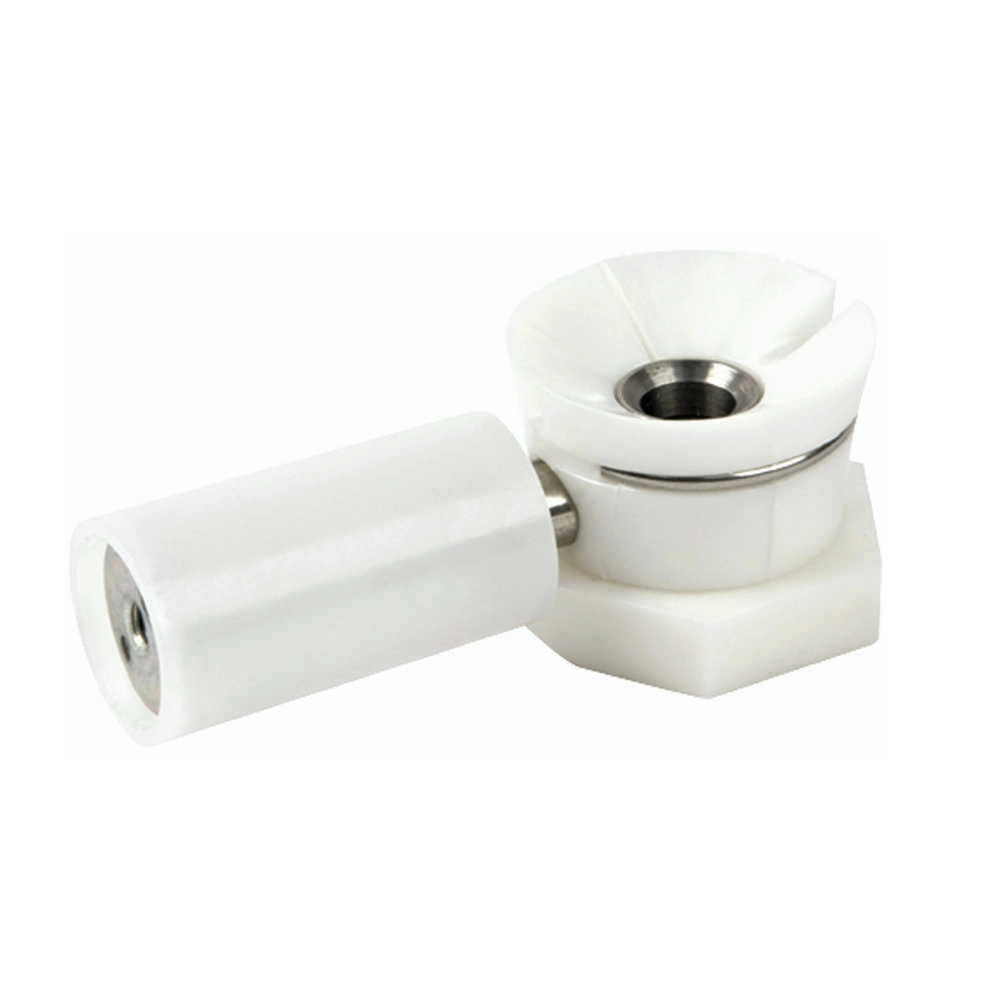

Shuttle Lock – E76

  • Basic socket in-built Shuttle lock with hexagon base
  • There is no weight limit because the lock is not a weight bearing component
  • Simple and reliable design
  • Build Height: 32 mm
Compare
Add to wishlist
SKU: SKU-110-2-1-1-1-2-4-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1 Category: Lock Systems & Valves
Share:
  • Description
  • Shipping & Delivery
Description
Code Material Weight Weight Limit
E-76 Delrin 70 gr No weight limit
Shipping & Delivery

Related products

Compare

Cylindrical Shuttle Lock – E75

Lock Systems & Valves
  • E75 is a cylindrical type of lock, made of high-strength Nylon
  • Designed for direct mounting with a 4-hole adapter
  • Very light-weight structure
  • Includes two pins in package
Add to wishlist
Quick view
Compare

AKS-Valve

Lock Systems & Valves
  • Auto-expulsion valve with push button for suction release.
  • The valve expels air under positive pressure when the stump entering into the socket
  • Designed to be used with all suction suspension systems.
  • Recommended for TF (Transfemoral) Users.
  • Product package includes the dummy kit.

Accessories (Included in package)

Add to wishlist
Quick view
Compare

Shuttle Lock W/ Receiver

Lock Systems & Valves
  • Available diameters for E72; Ø= 36mm , 50mm
  • The shuttle lock serves to secure a suitable liner in the prosthetic socket. The shuttle lock is laminated distally into the prosthetic socket.
  • Delrin lightweight body, suitable for bath prosthesis.
  • Dummy kit is not included in the package and should be ordered separately.
  • Dummy kit is only available for E72-50
Add to wishlist
Quick view
Compare

Clutch Lock – E73

Lock Systems & Valves
  • Light and durable aluminum bodies
  • Pin design has worm thread which makes smooth connection.
  • Rotation-secured lamination disk
  • 4-hole connection to the lamination disk allows to change the complete locking unit in case of need of replacement.
  • Dummies are included in the package
Add to wishlist
Quick view
Compare

EPS-VALVE

Lock Systems & Valves
  • Expulsion valve with a button, provides one-way air discharge.
  • Recommended for both TT and TF users.
  • Designed to be used with all suction suspension systems.
  • Body is made by anodized aluminum.
Add to wishlist
Quick view
Compare

Active Vacuum Unit & Valves

Lock Systems & Valves

Active Vacuum Unit

The vacuum unit is designed to generate an elevated vacuum between user's liner and the socket to prevent pistoning movement and grip the stump firmly. To do this, there should be a sealed environment between user's liner and the socket. Once the environment is sealed, which is compressed and released during normal walking, the vacuum unit draws air from the socket through one-way valves and evacuates it through the pump. So vacuum unit, discharges the air in this sealed environment on every step of user. After multiple steps of the user, 15 in.Hg ( around 0.5 bar ) is created in the sealed socket environment.

Features

Discharging the air between the socket and the liner on every step of user Prevents pistoning and keeps the prosthesis firmly on user. Absorbs high reaction forces of the ground ( Absorbs impact forces ) Increases comfort of the user Has free rotating connector to easily adjust air suction hose
Add to wishlist
Quick view
Compare

One-way Valve (VAC-300)

Lock Systems & Valves
  • This valve enables the expulsion of excessive air out of the socket during stance phase and effectively prevents air from flowing in during swing phase
  • Consisting of: Valve body of anodized aluminum Exchangeable sealing lip valve Counter nut with o-ring Foam filter insert
Add to wishlist
Quick view
Compare

E-70 Gear

Lock Systems & Valves
Add to wishlist
Quick view
