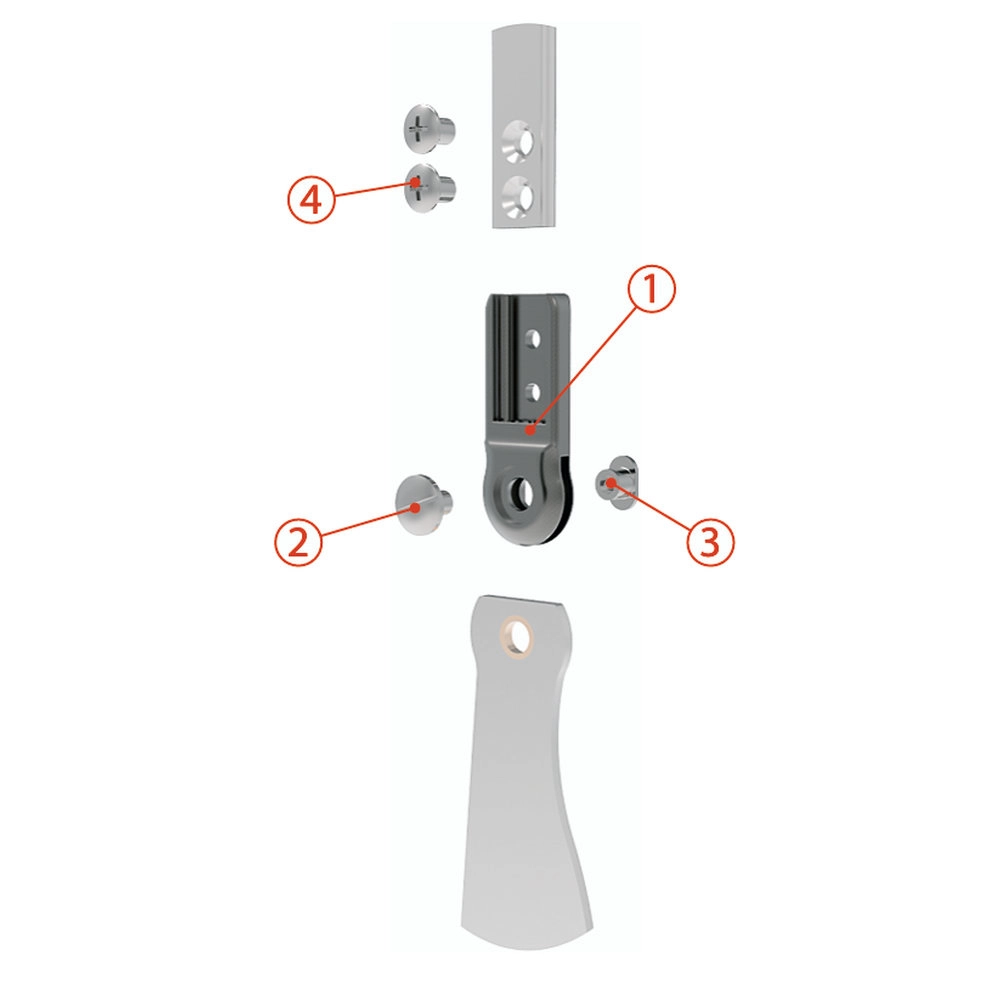

Orthotic Ankle Joint Spare Parts Kit - Image 1
Click to enlarge

The ankle joint spare parts kit is a high-precision medical assembly manufactured from premium stainless steel, specifically engineered to ensure the structural integrity and reliable maintenance of lower extremity orthotic systems.

Orthotic Ankle Joint Spare Parts Kit


CE

NoPart NameFeature / MaterialQty
1JointStainless Steel1 Piece
2Slotted Truss Head ScrewM5 Thread x 6.50 mm x Ø12 mm (for 16mm)
M6 Thread x 7.30 mm x Ø14 mm (for 20mm)		1 Piece
3Bearing NutM5 Thread x 6.50 mm, Hardened (for 16mm)
M6 Thread x 7.30 mm, Hardened (for 20mm)		1 Piece
4Phillips Oval Countersunk Head ScrewM5 Thread x 4 mm x Ø8 mm1 Piece
