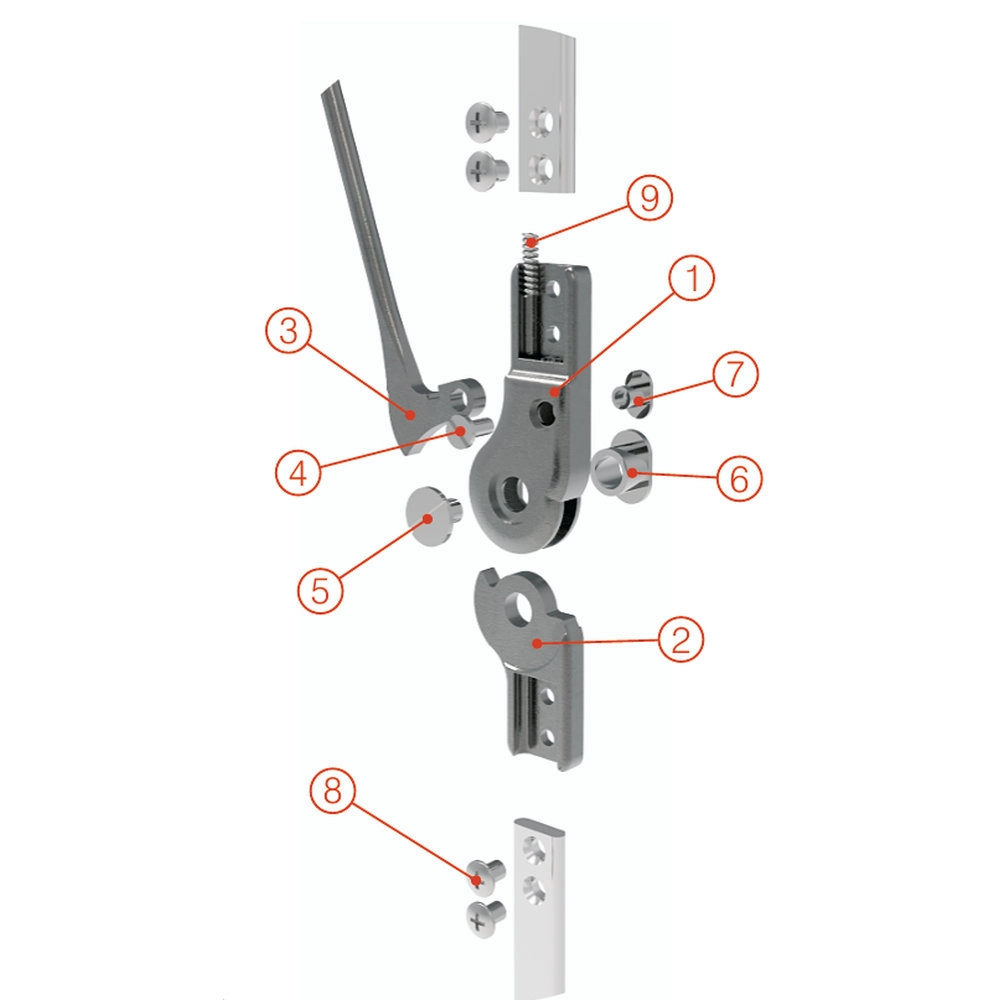

Knee Joint with Bale Lock (Springy): Parts OKJ110 - Image 1
Click to enlarge

The Knee Joint with Bale Lock (Springy) OKJ110 is a high-precision stainless steel orthotic component engineered to provide exceptional structural integrity and a secure locking mechanism for specialized patient requirements.

Knee Joint with Bale Lock (Springy): Parts OKJ110


CE

NoPart NameFeature / MaterialQty
1Upper SectionStainless Steel1 Piece
2Lower SectionStainless Steel1 Piece
3Lock LeverStainless Steel1 Piece
4Slotted Truss Head ScrewM6 Thread x 8.70mm x Ø14mm1 Piece
5Slotted Truss Head ScrewM4 Thread x 8.70mm x Ø8mm1 Piece
6Bearing NutM6 Thread x 8,70mm, Hardened1 Piece
7Bearing NutM4 Thread x 8,70mm, Hardened1 Piece
8Phillips Oval Countersunk Head ScrewM5 Thread x 4mm, Ø8mm1 Piece
9Compression Spring0,5 X 4 X 15 mm1 Piece
