| Code | Material | Weight | Weight Limit |
| E 46s | Stainless Steel | 900 gr | 100 kg |

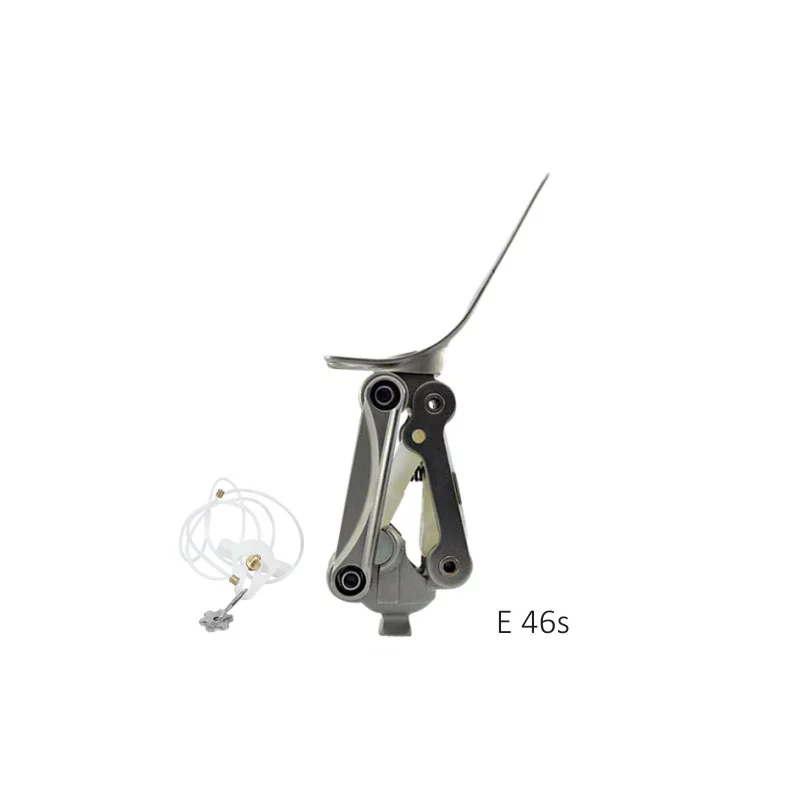

Disarticulation Knee W/Manuel Lock
- For knee disarticulation amputees
- High stance phase stability
- No swing phase control
Description
Shipping & Delivery
Related products
PN-200 Pneumatic Knee Joint
- Flexion and Extension individual adjustments
- Pneumatic Swing Phase Control
- Internal Extension Assist
- Long 4-Bar Polycentric Design
- Pyramid and M36 connection adapter options
- Anterior – Posterior and Medial – Lateral shifts of 5 mm
Data Table
| Product Name with Pyramid Connection | PN-200A |
| Product Name with M36 Connection | PN-200B |
| Advised Activity Leve | K2-K3 |
| Material | Aluminum |
| Max. User Weight | 100 Kg |
| Flexion Angle | 155° |
| Product Weight | 944 gr |
| Overall Length / Build Height | 214 mm / 158 mm |
Connection Adapter Types
Single Axis Knee W/Manuel Lock
- Monocentric knee joint with manual lock
- Up to 100 Kg body weight
- High Stance Phase stability
- Unlocking cable is included
- Feature: Can be unlocked with hand click, without need of cable.
- Feature: Waterproof! (Fresh and sea water included)
- Pyramid, M36 and One-Prong Lamination Anchor types are available.
E 44 Polycentric Knee Joint with Extension Mechanism
- Mechanical 4-Bar polycentric knee Joint, can be used as locked or unlocked
- Locking function for a high degree of safety; ideal for first standing and walking exercises, afterwards locking function is cancel-able.
- More ground clearance for a safer and more confident gait
- Rates of flexion and extension can be adapted to the user. Flexion range is up to 150°
- Integrated shift adjustment by adapter up to 5mm.
Data Table
| Product Name with Pyramid Connection | E 44-A |
| Product Name with M36 Connection | E 44-B |
| Product Name with One-Prong Connection | E 44-C |
| Advised Activity Level | K1-K2 |
| Material | Aluminum |
| Max. User Weight | 125 Kg |
| Flexion Angle | 150° |
| Product Weight | 680 gr |
| Overall Length / Build Height | 161 mm / 102 mm |
Connection Adapter Types
