4 Hole Adapter W/Fixed Pyramid

  • Used to connect different modular parts and socket attachment blocks
  • With pyramid and hole trough pyramid
Compare
Add to wishlist
SKU: SKU-110-2-1-1-2-1-1-1-1-1-1-1-1-1-1 Category: Prosthetic Foot & Modular Adapters
Share:
  • Description
  • Shipping & Delivery
Description
 Code  Material Weight Weight Limit

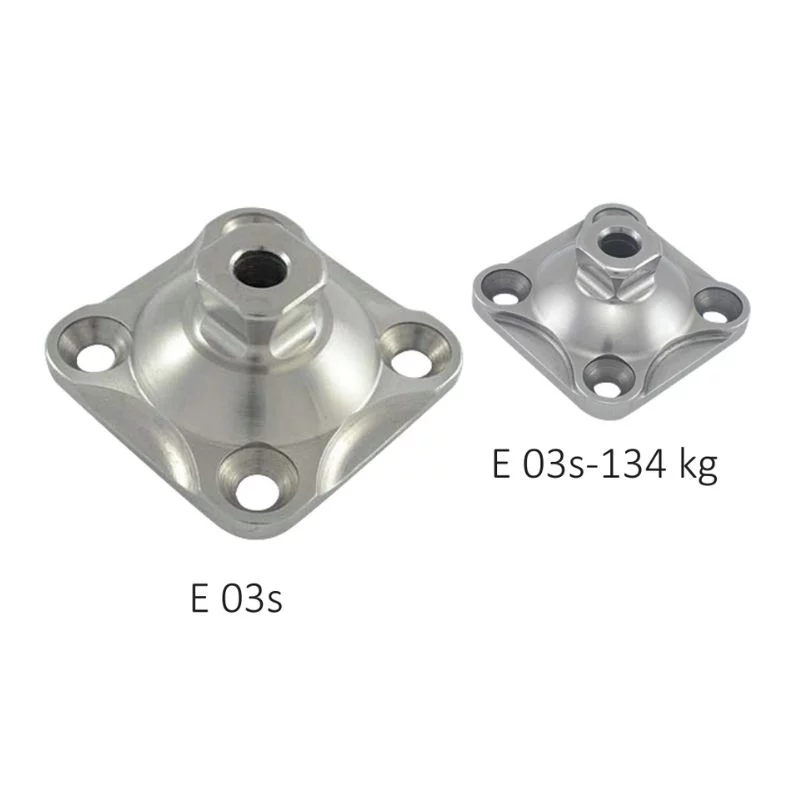

E 03s  Stainless Steel 93 gr 100 kg
E 03s-134 kg  Stainless Steel 118 gr 134 kg

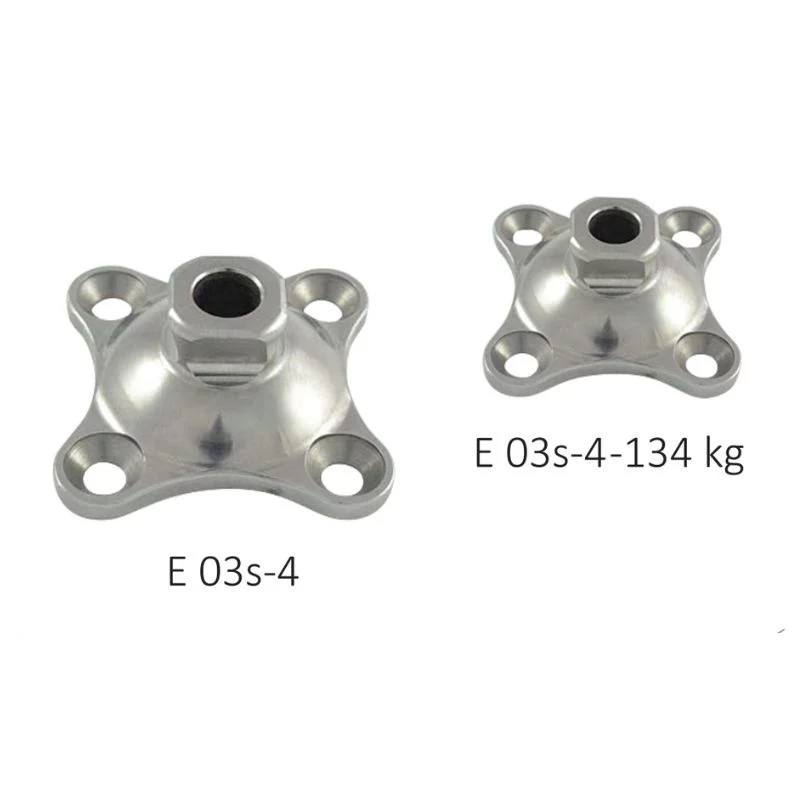

E 03s-4  Stainless Steel 74 gr 100 kg
E 03s-4-134 kg  Stainless Steel 84 gr 134 kg
 Code  Material Weight Weight Limit

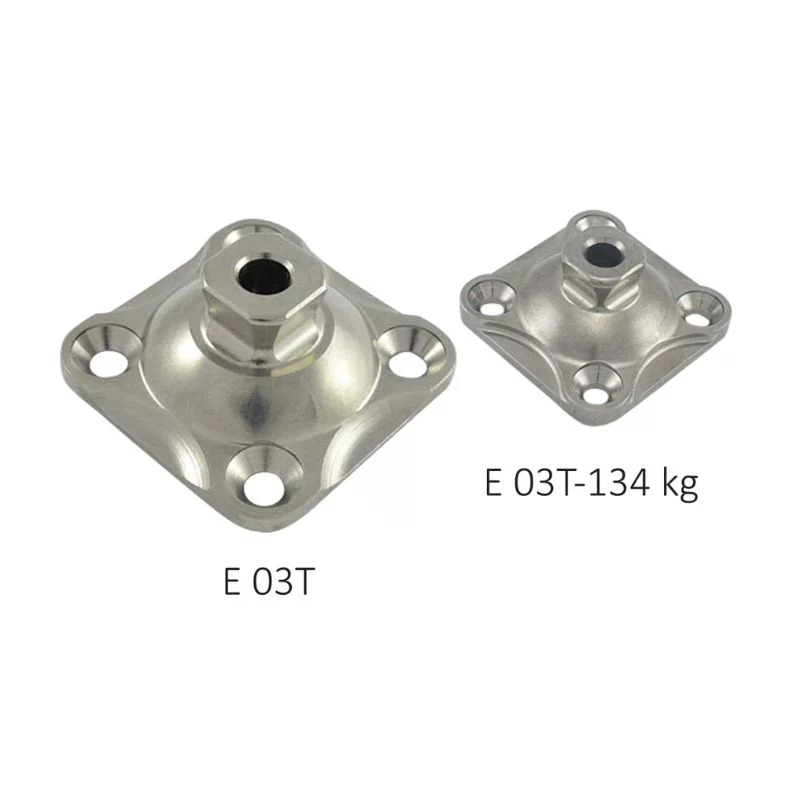

E 03T Titanium 56 gr 100 kg
E 03T-134 kg Titanium 70 gr 134 kg

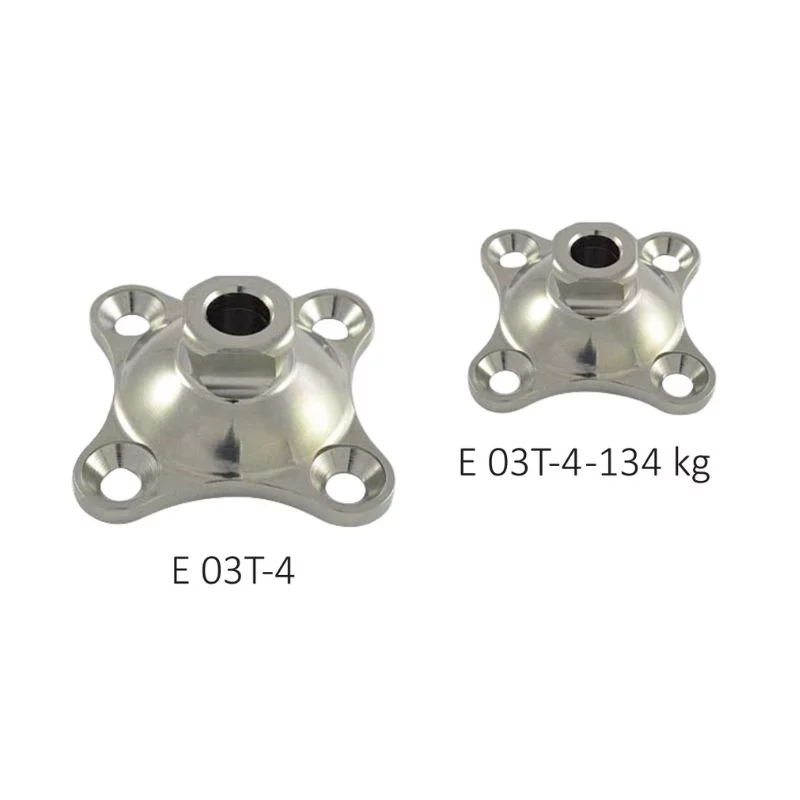

E 03T-4 Titanium 46 gr 100 kg
E 03T-4-134 kg Titanium 60 gr 134 kg
 Code  Material Weight Weight Limit
E 03Al Aluminum 63 gr 100 kg

This Product has Aluminum body along with Titanium Pyramid
