Sliding & Rotating Socket Adapter
Sliding & Rotating Socket Adapter - Image 2
Sliding & Rotating Socket Adapter - Image 3
Sliding & Rotating Socket Adapter - Image 4
Engineered for ultimate clinical precision, this sliding rotating socket adapter provides a unique dual-adjustment mechanism. It features a full 360° rotation combined with an 11 mm sliding range, allowing for perfect post-lamination alignment. Available in 3-prong and 4-prong configurations with high-strength titanium cores.

Sliding & Rotating Socket Adapter


✔ CE
☀️ ISO 10328 Tested

Product Highlights


Dual Adjustment

Allows easy alignment by rotating and sliding at the same time for perfect prosthetic positioning.

360° Rotation & Sliding

Capable of 360° rotation and up to 11 mm sliding range for maximum flexibility.

Space-Saving

Short length design saves extra space and allows for easy alignment in compact builds.

Technical Specifications

CodeMaterial (Core / Prong)WeightWeight Limit

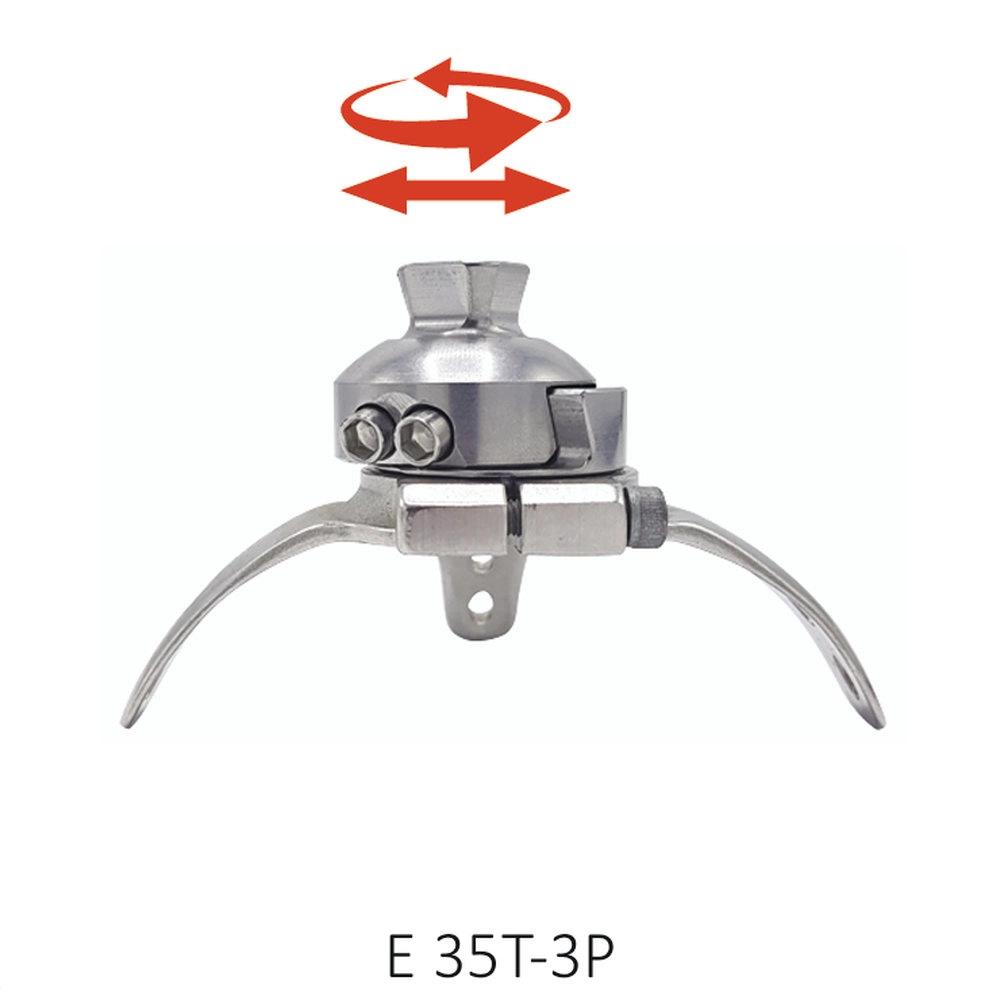

E 35T-3PTitanium / S. Steel220 gr100 kg

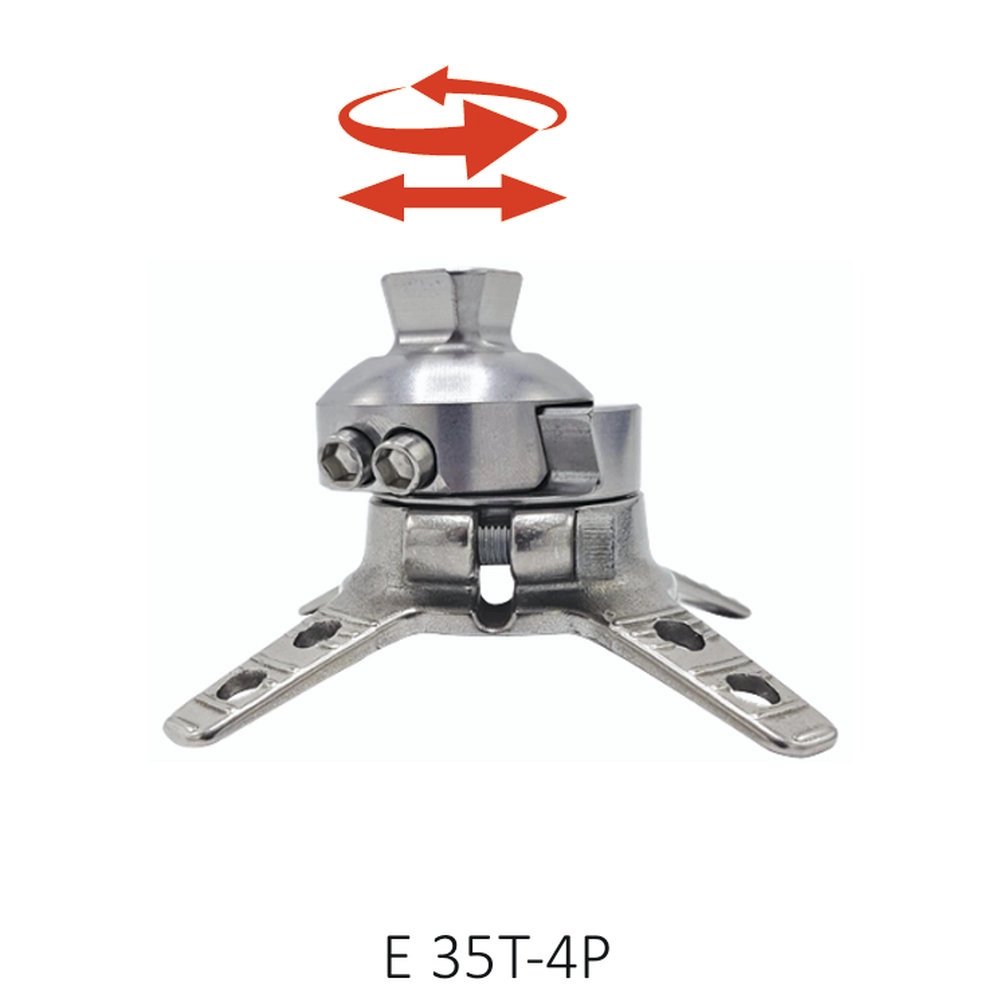

E 35T-4PTitanium / S. Steel190 gr100 kg

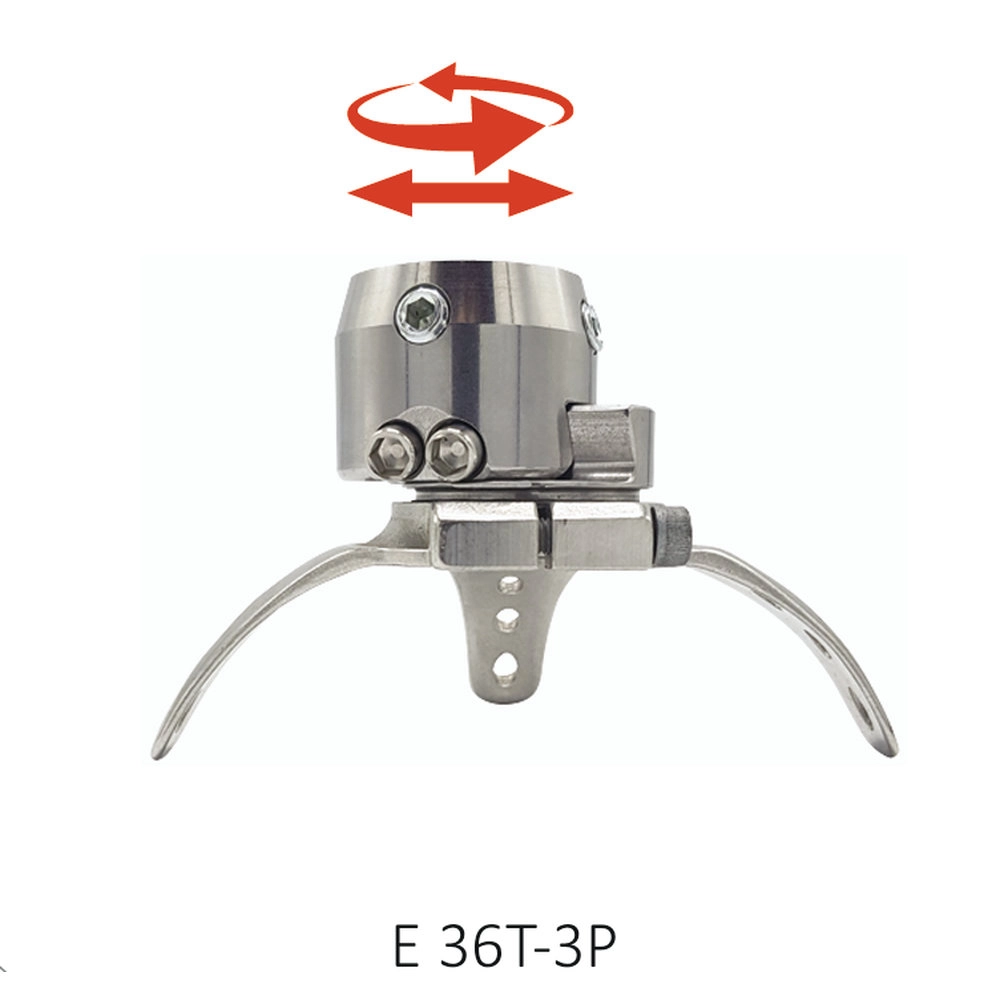

E 36T-3PTitanium / S. Steel250 gr100 kg

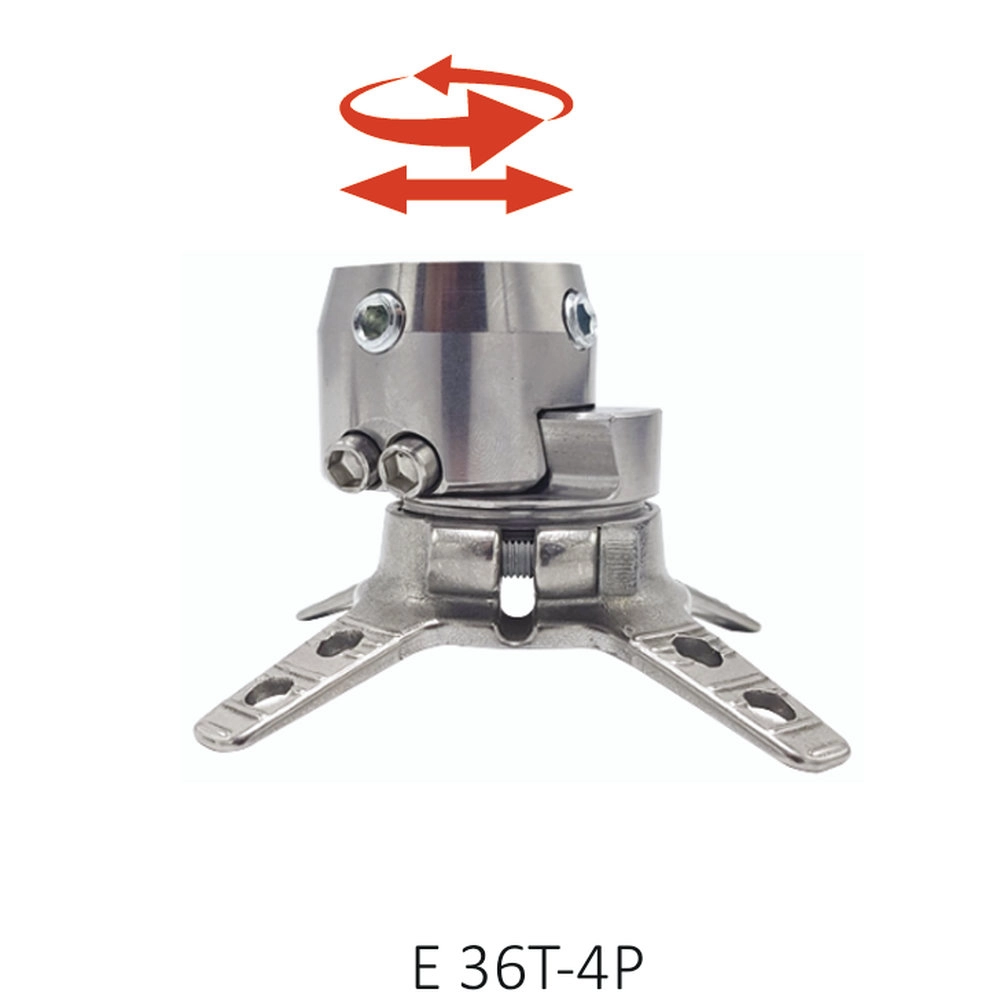

E 36T-4PTitanium / S. Steel220 gr100 kg
E 35s-3PS. Steel / S. Steel295 gr100 kg
E 35s-4PS. Steel / S. Steel265 gr100 kg
E 36s-3PS. Steel / S. Steel340 gr100 kg
E 36s-4PS. Steel / S. Steel310 gr100 kg



PDF

Instructions For Use
