Manual Lock
Waterproof
CE
ISO 10328 Tested
Product Highlights
Stance Stability: Exceptional safety for K1-K2.
Waterproof: Safe for fresh and sea water.
Dual Release: Unlock by cable or hand click.
Versatile: Multiple connection options available.

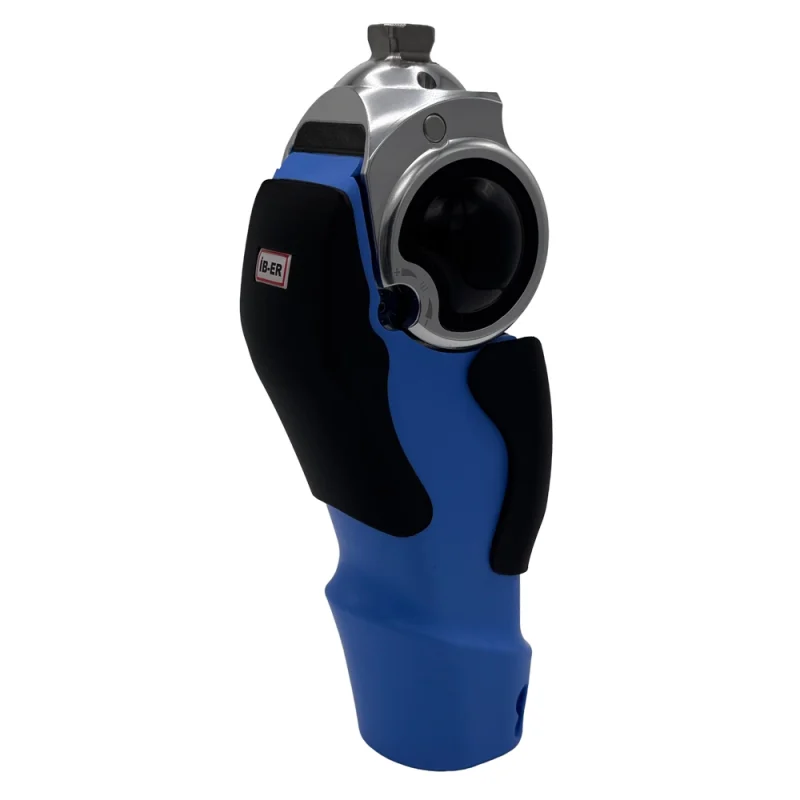

The Single Axis Knee With Manual Lock E 41 is a monocentric knee joint featuring a high-security manual lock, specifically engineered for aquatic environments and rehabilitation. Being waterproof, it allows users to move confidently in both fresh and sea water. A unique feature of this joint is its dual unlocking mechanism: it can be operated either via the included cable or by a direct hand click, providing flexibility depending on the prosthesis setup.
Main Configurations
| Code 💧 | Connection Type | Material | Weight | Weight Limit |
|---|---|---|---|---|

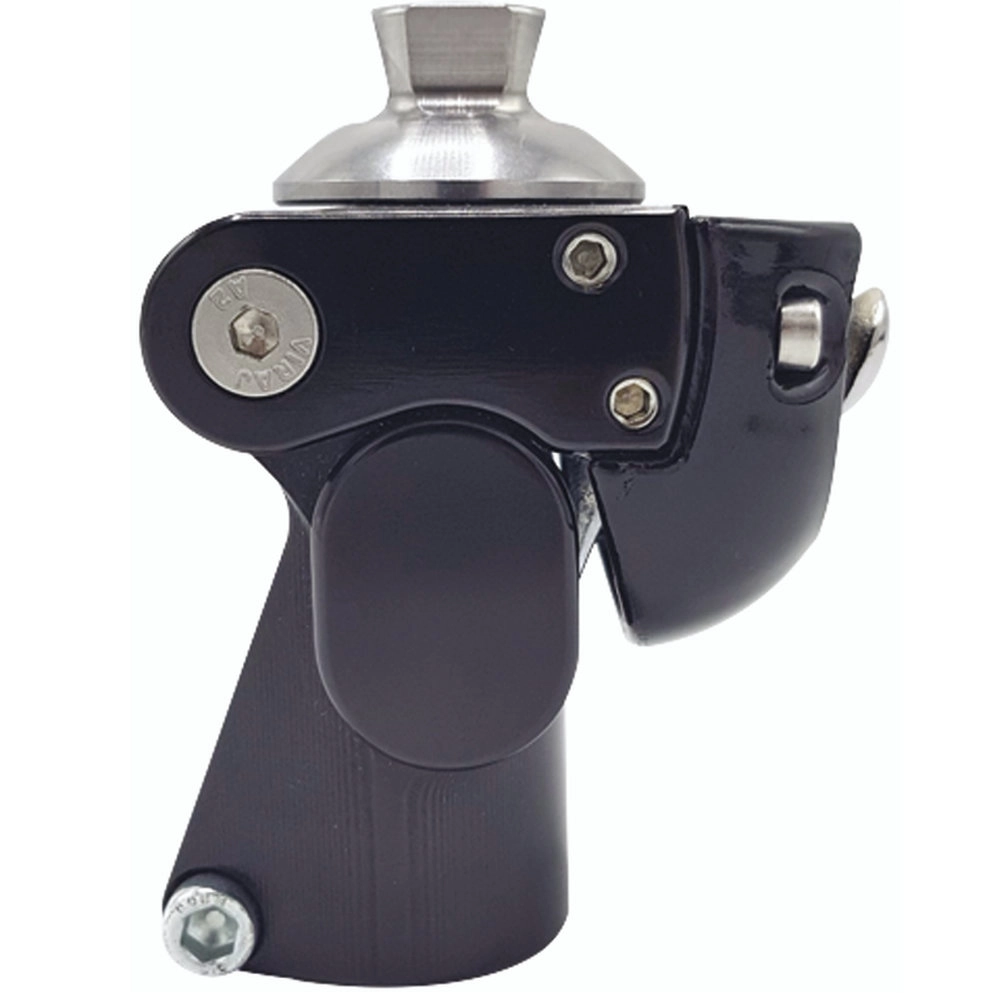

| E 41 💧 | Pyramid Connection | Aluminum | 433 g | 100 Kg |

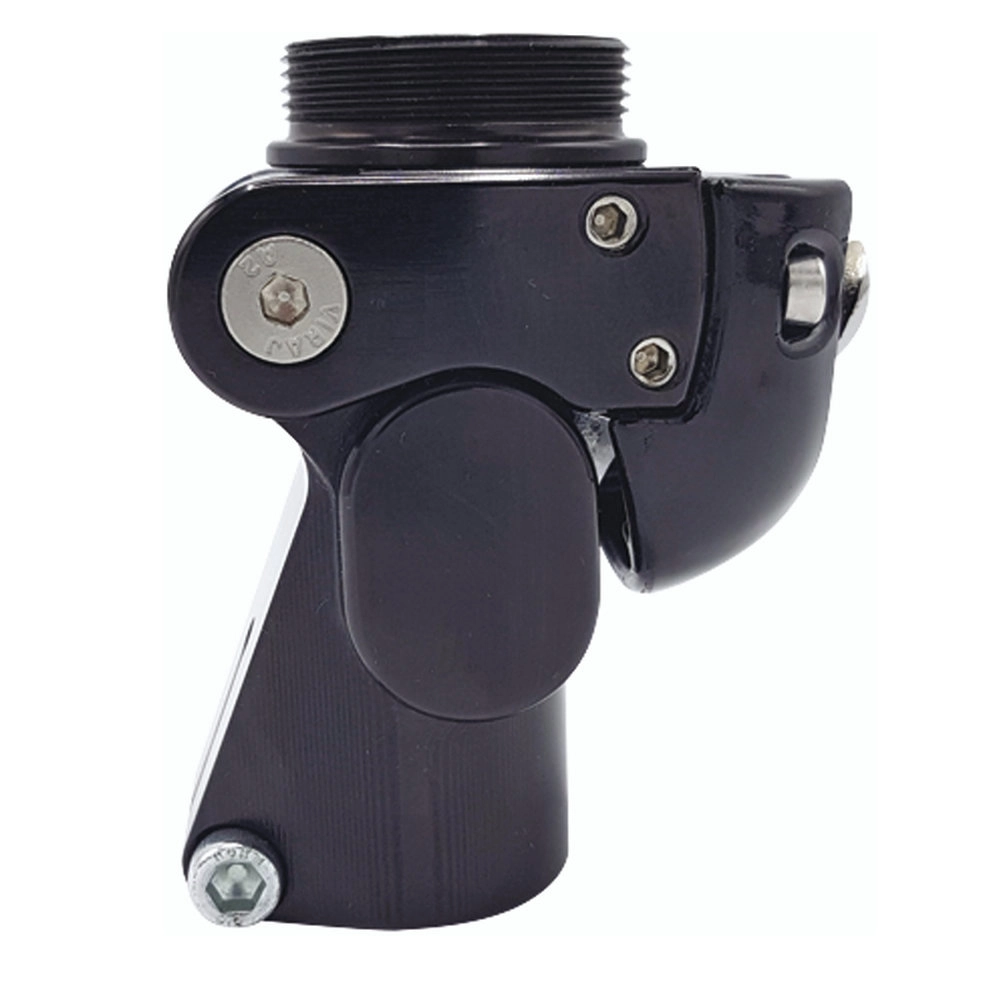

| E 41-A 💧 | M36 Threaded Connection | Aluminum | 400 g | 100 Kg |

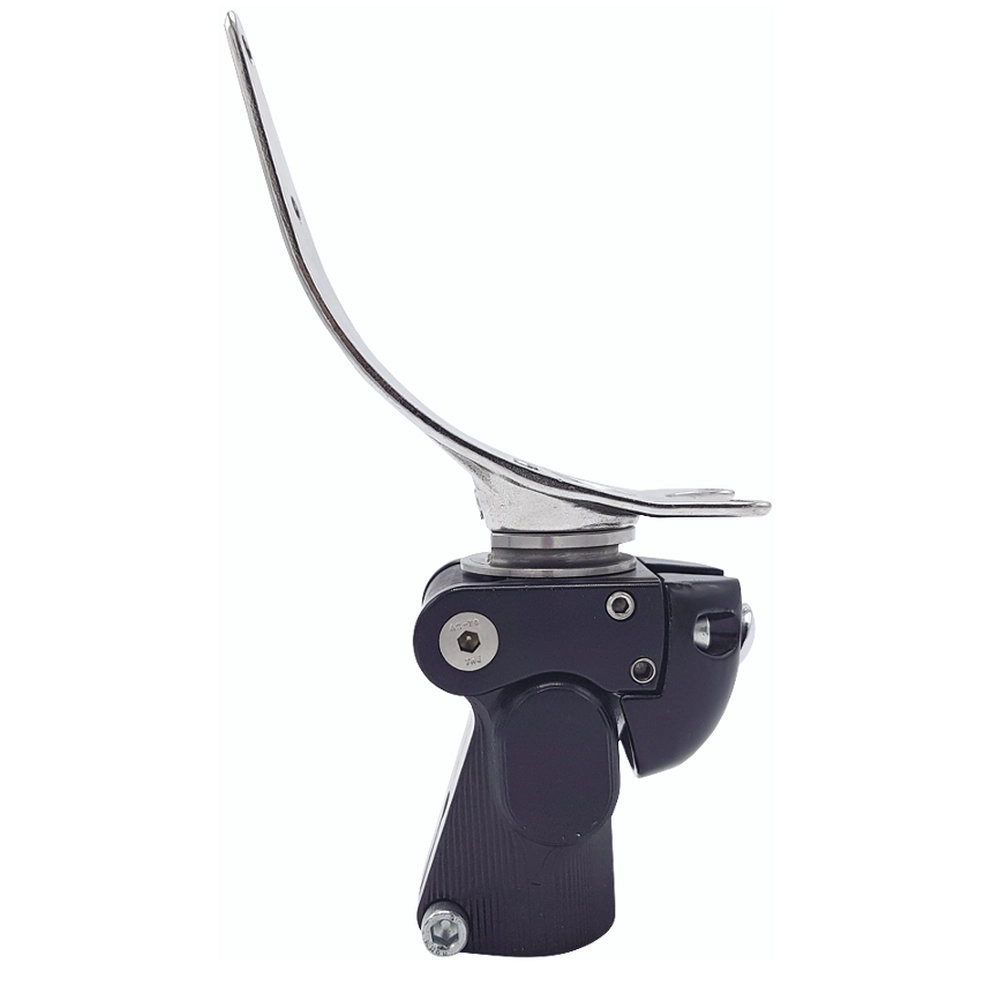

| E 41-B 💧 | One-Prong Lamination Anchor | Aluminum | 570 g | 100 Kg |
Accessories & Components
| Part Code | Material | Weight | Weight Limit |
|---|---|---|---|
| E 41-Body 💧 | Aluminum | 350 g | 100 Kg |

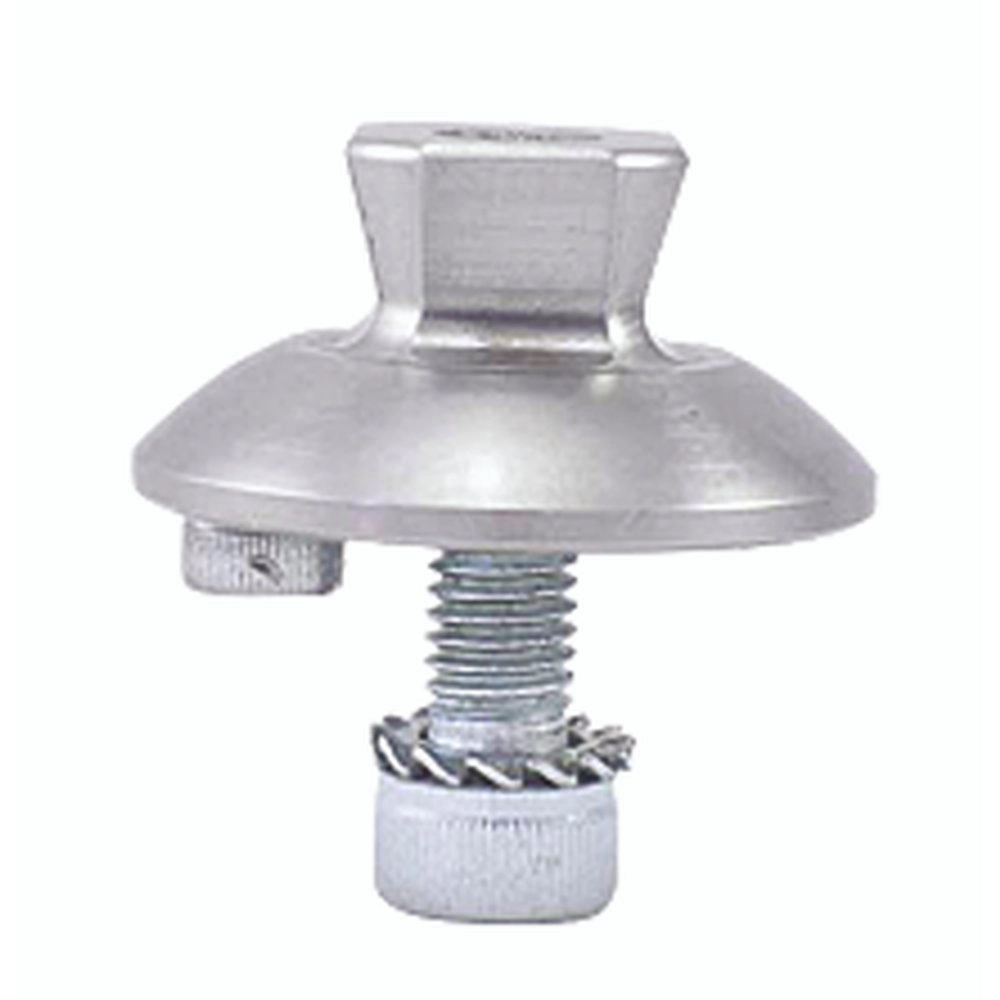

| E 41-Pyramid | Stainless Steel | 84 g | 100 Kg |

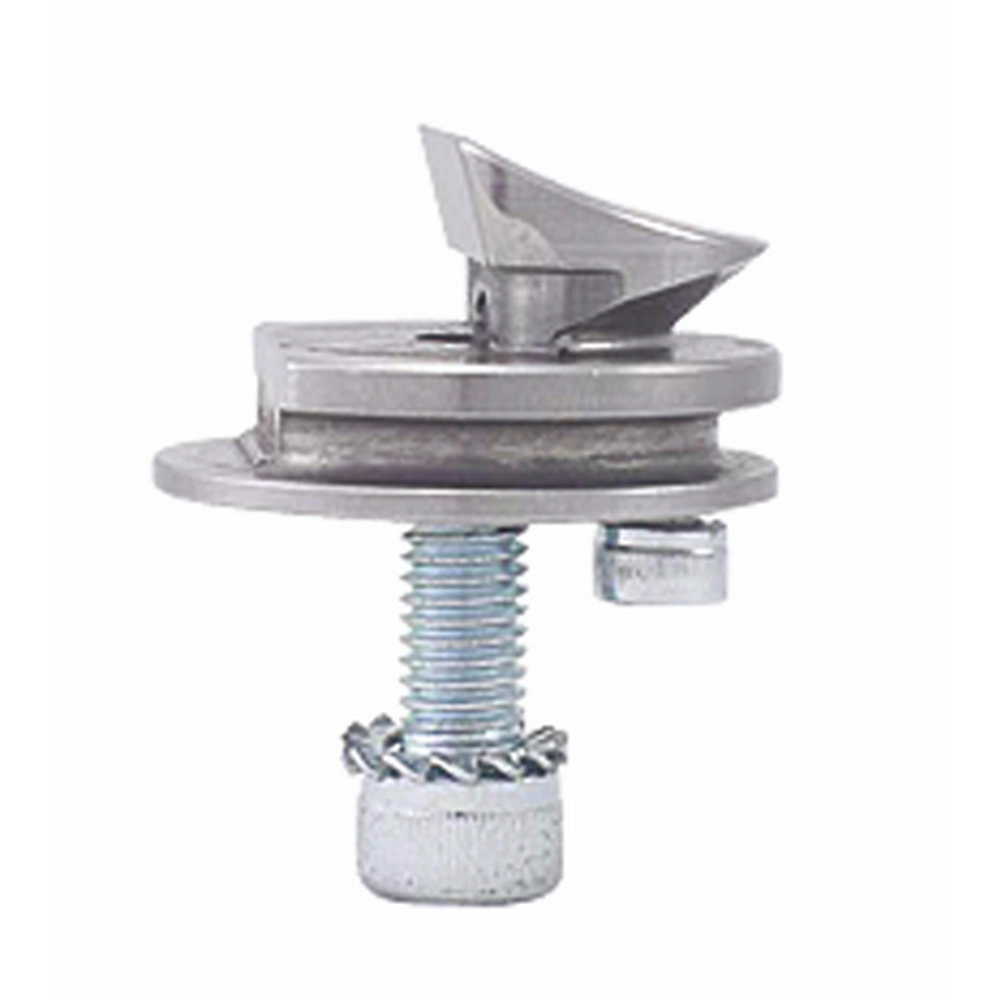

| E 41-Prong Con. | Stainless Steel | 95 g | 100 Kg |

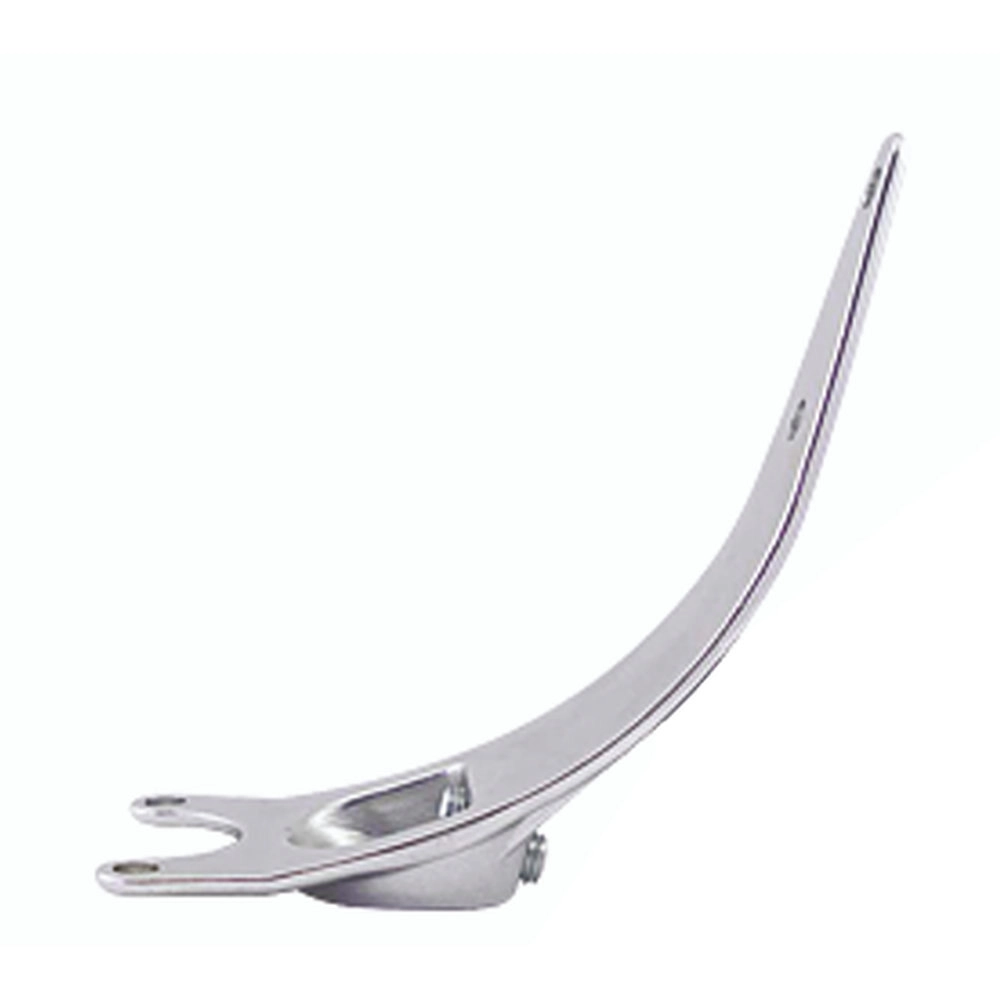

| E 41-One Prong | Stainless Steel | 140 g | 100 Kg |

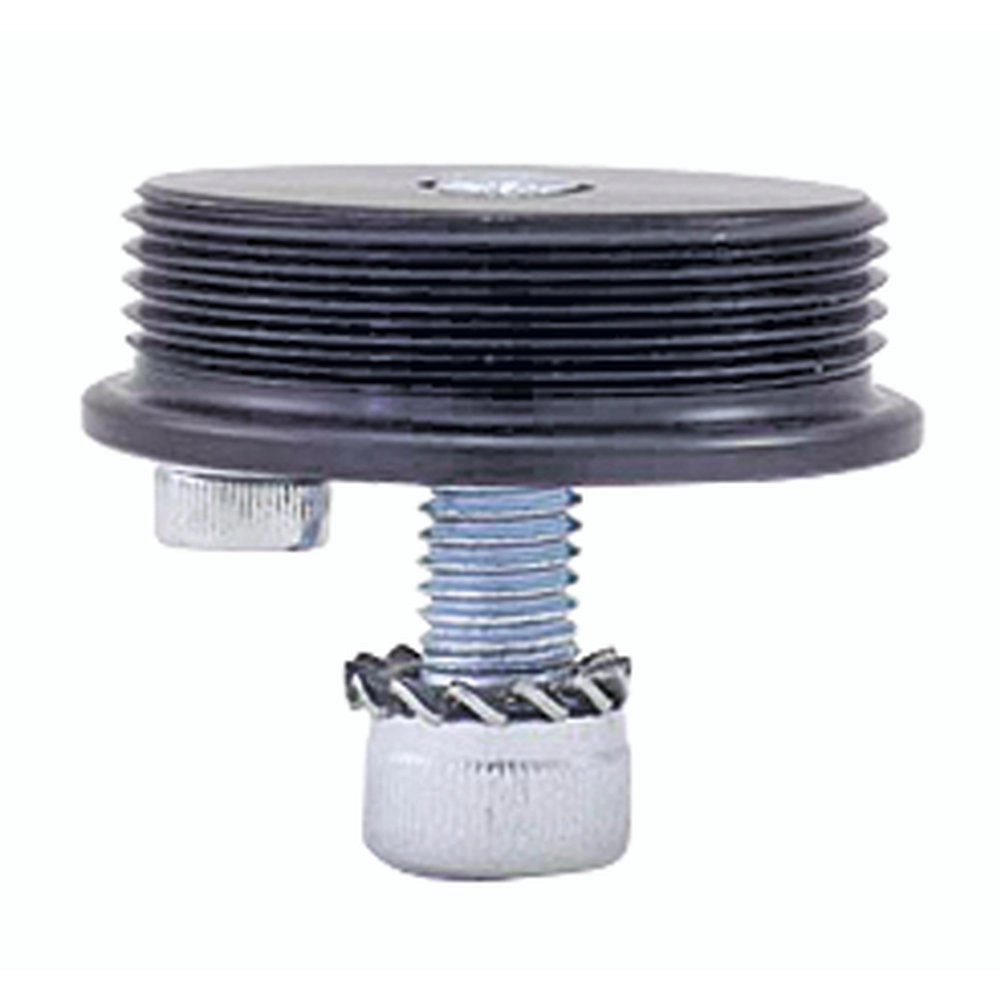

| E 41-Adapter | Aluminum | 45 g | 100 Kg |

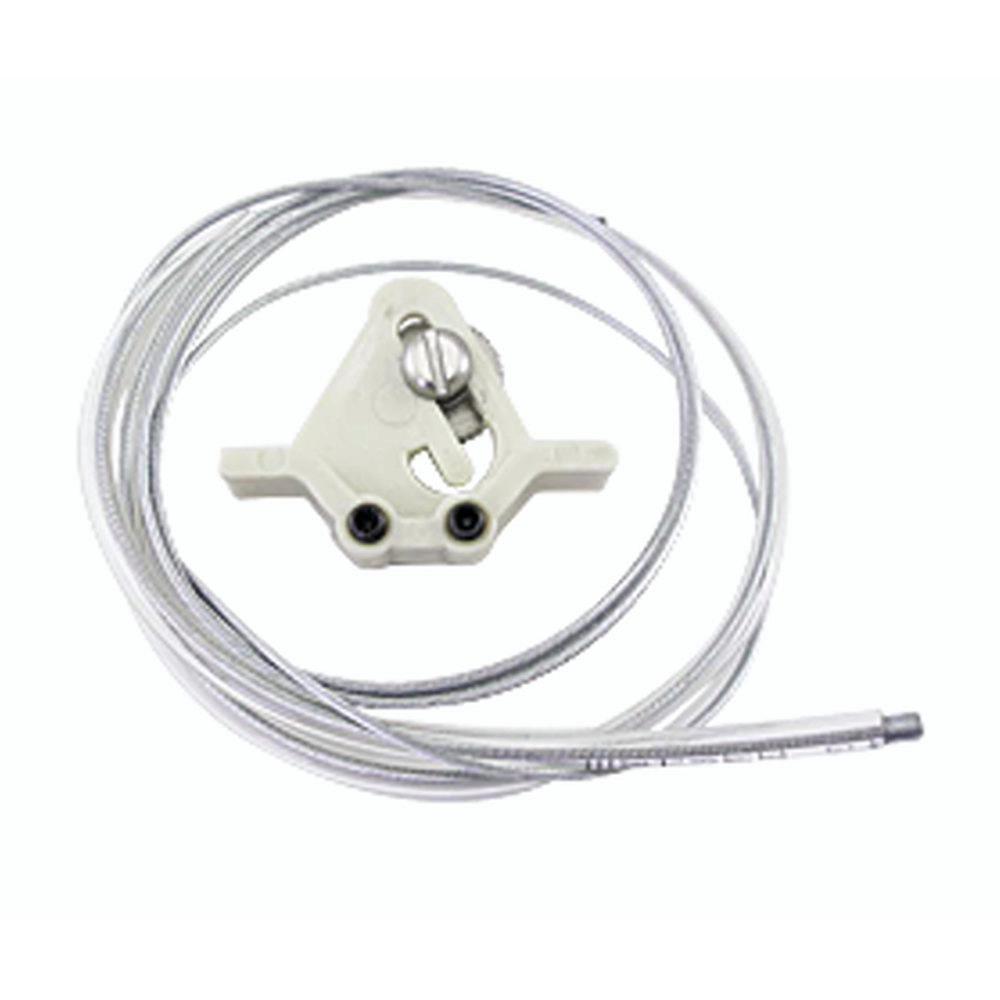

| E 41-Wire | Stainless Steel | 95 g | 100 KG |
