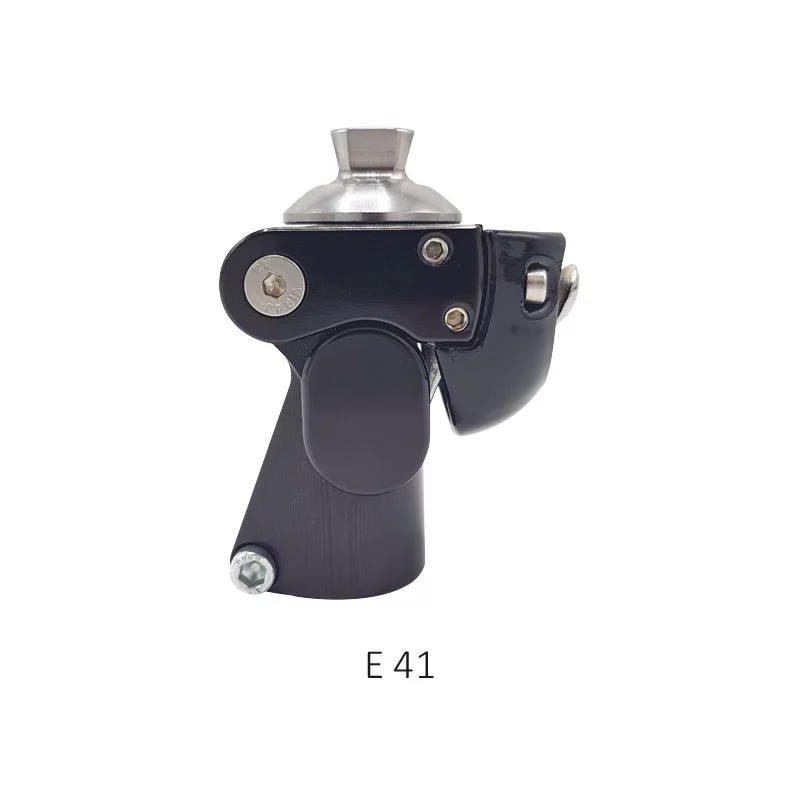

Single Axis Knee W/Manuel Lock
$29.00
- Monocentric knee joint with manual lock
- Up to 100 Kg body weight
- High Stance Phase stability
- Unlocking cable is included
- Feature: Can be unlocked with hand click, without need of cable.
- Feature: Waterproof! (Fresh and sea water included)

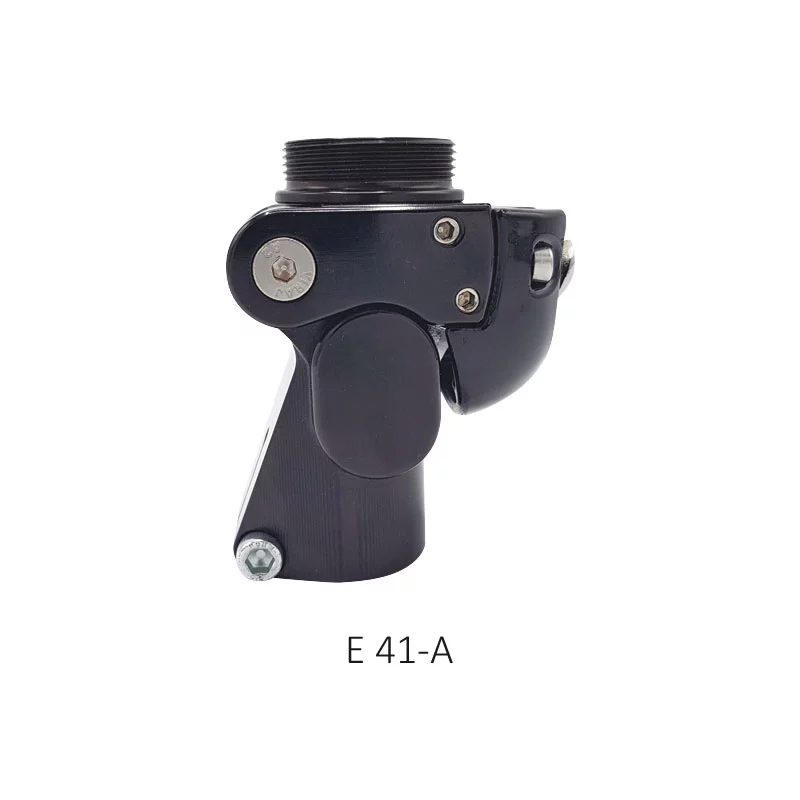

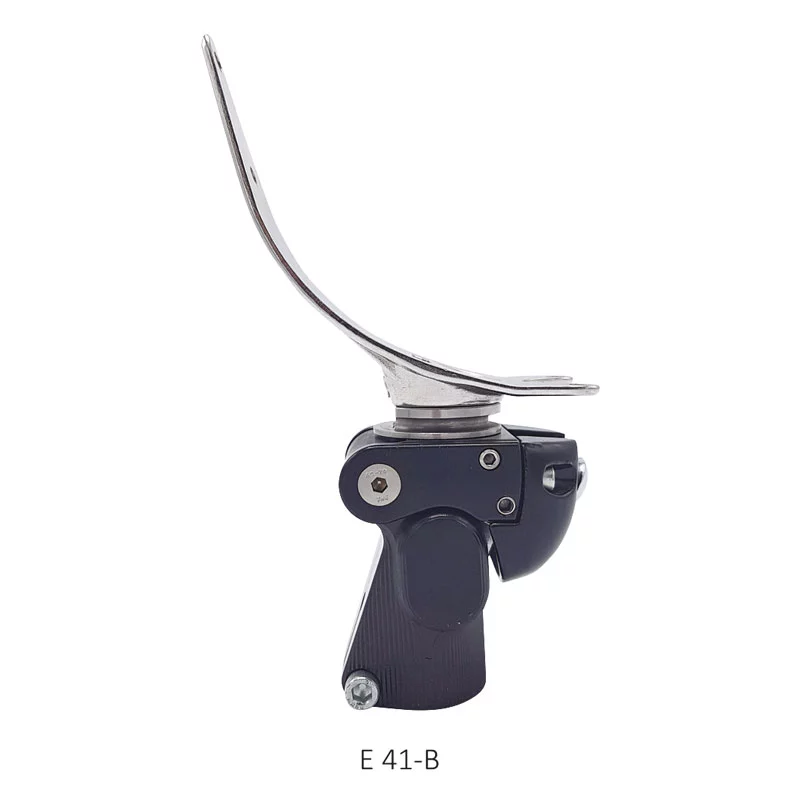

- Pyramid, M36 and One-Prong Lamination Anchor types are available.
