Rotation Adapter

Rotatable & Sliding Adjustment Adapter

  • Allows easy adjustment by rotating and sliding at the same time
  • Capable to rotate 360° and slide 11 mm at maximum range
  • Thanks to its short length, allows the easy allignment and saves extra places

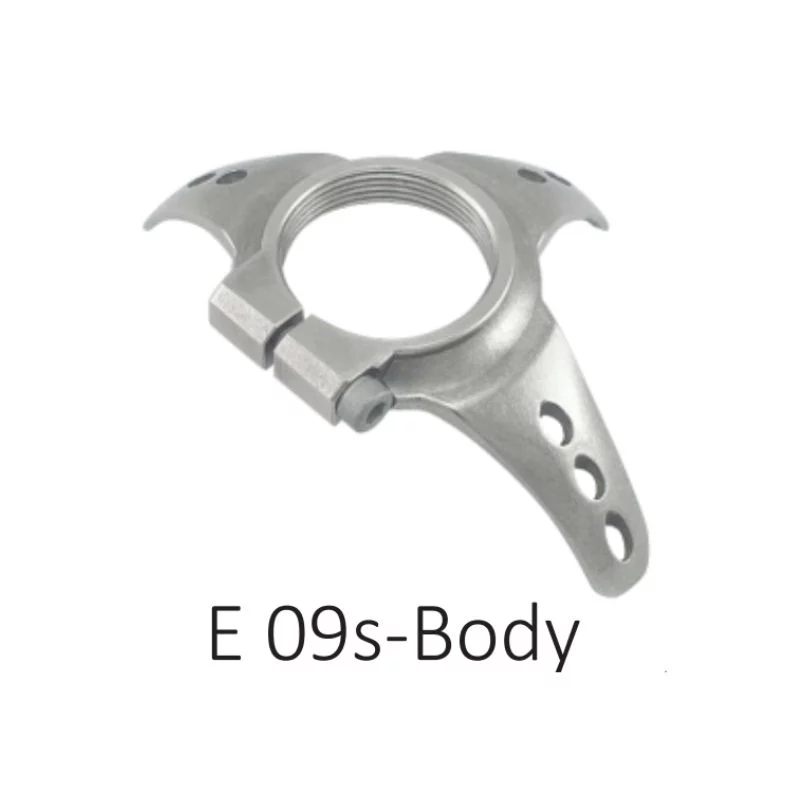

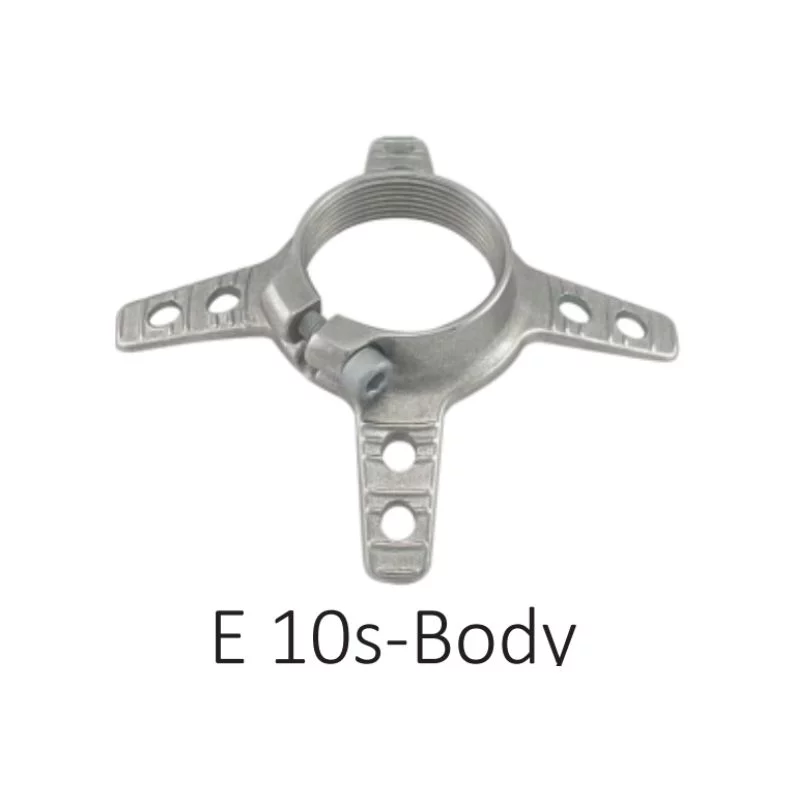

  • Can be attached directly to the following socket adapters:

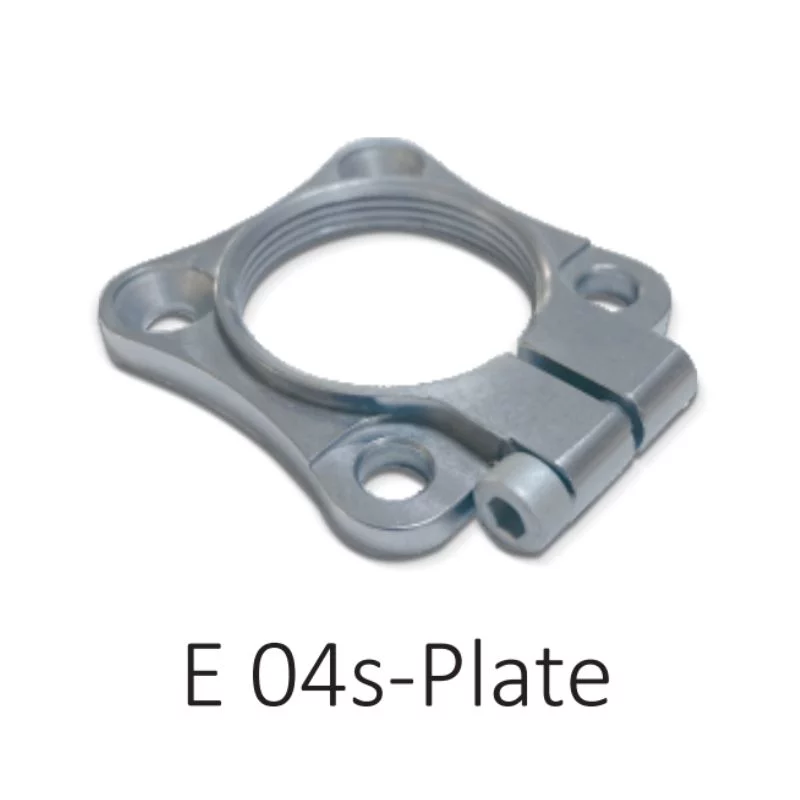

  • Ready-made combinations with E04 series Plate:
Compare
Add to wishlist
SKU: SKU-110-2-1-1-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1 Category: Prosthetic Foot & Modular Adapters
Share:
  • Description
  • Shipping & Delivery
Description
 Code  Material Weight Weight Limit

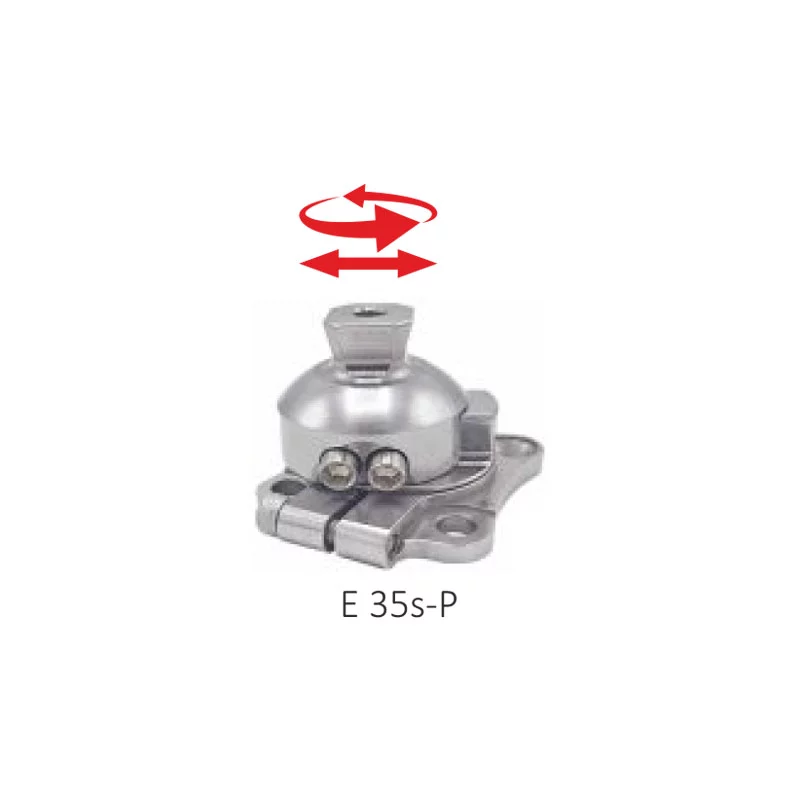

E 35s Stainless Steel 190 gr 100 kg

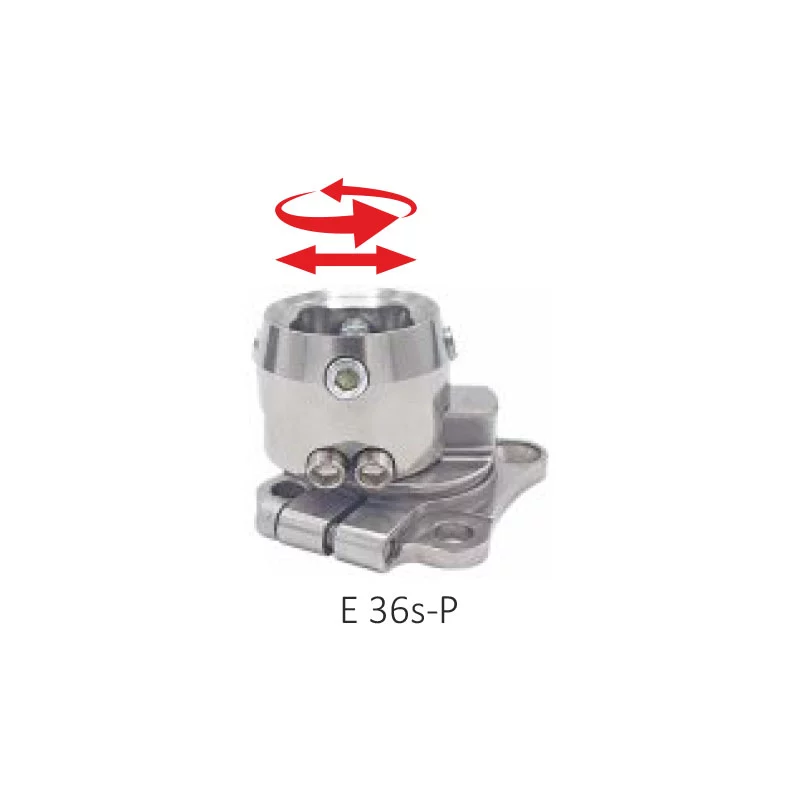

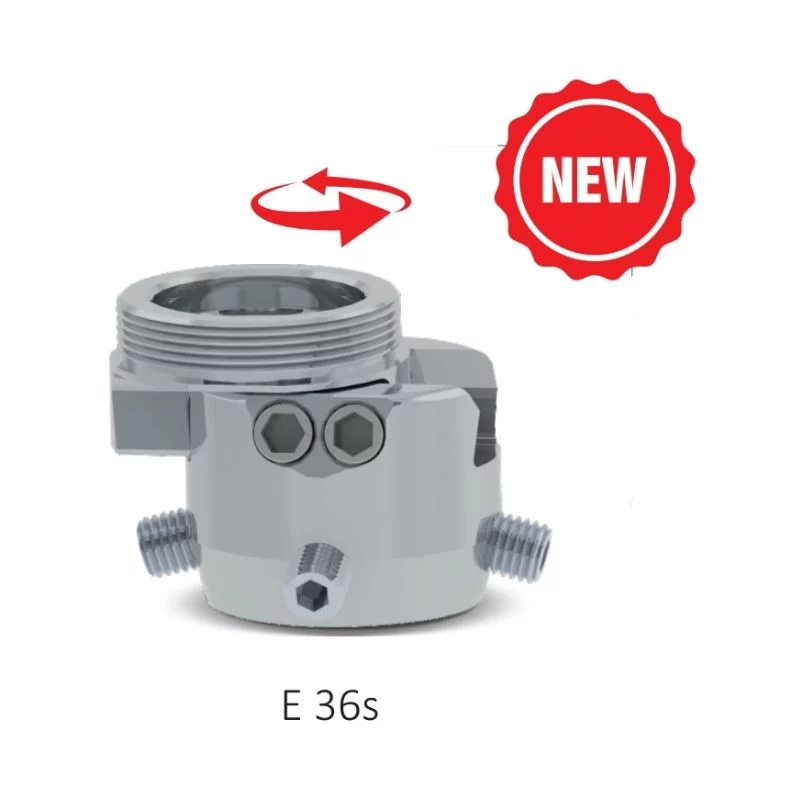

E 36s Stainless Steel 235 gr 100 kg
E 35T Titanium 115 gr 100 kg
E 36T Titanium 144 gr 100 kg
