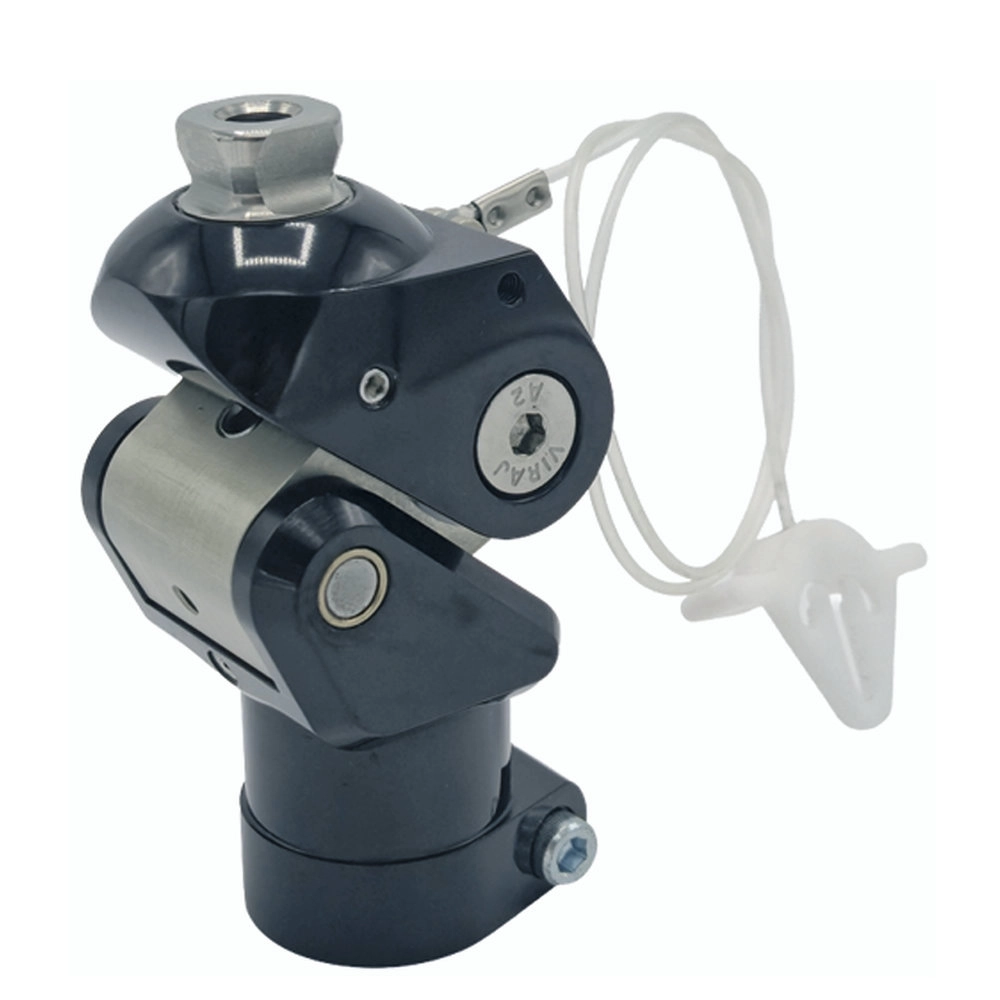

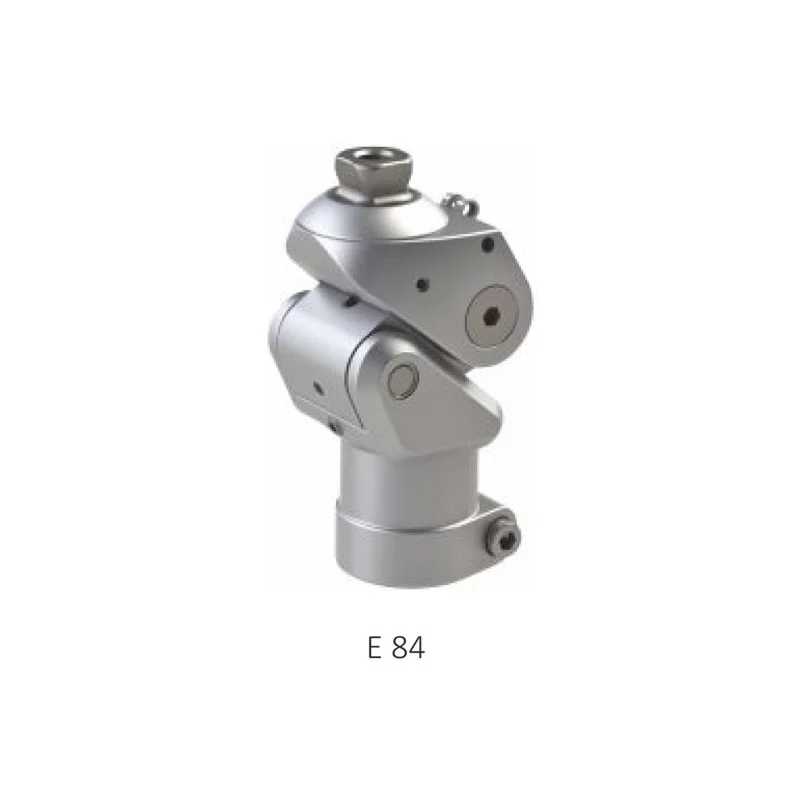

E 84 Single Axis Knee Joint with Friction and Extension Mechanism

  • Monocentric and lightweight knee joint, which can be used with weight-activated friction mechanism and also comes with a lock feature
  • The knee automatically locks when extended
  • Lock feature is cancel-able anytime desired, depending on the patient’s progress
  • Integrated extension assist spring is adjustable to suit individual requirements

Data Table

Product Name E 84
Advised Activity Level K1-K2
Material Aluminum
Max. User Weight 125 Kg
Flexion Angle 145°
Product Weight 490 gr

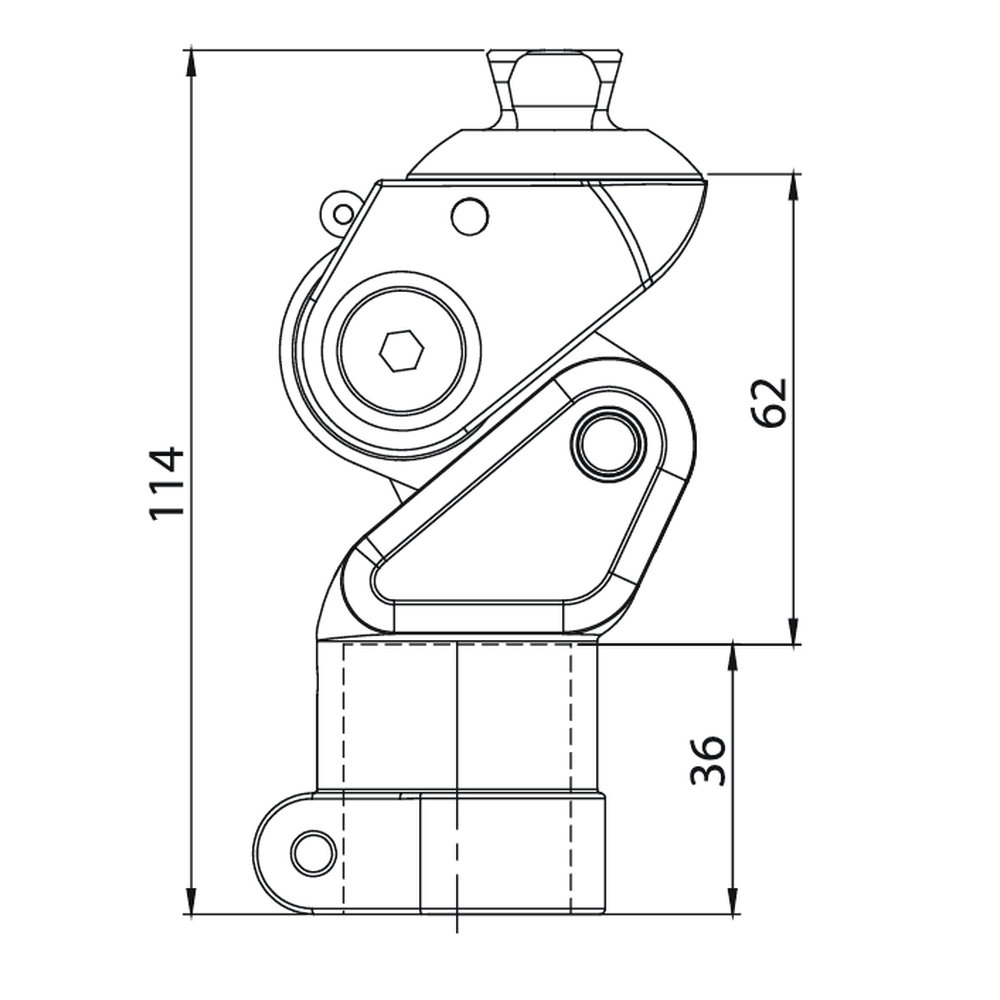

Overall Length / Build Height 115 mm / 62 mm
Compare
Add to wishlist
SKU: SKU-110-2-1-1-1-2-4-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-2-1-1-1-1 Category:
Description
 Code  Material Weight Weight Limit
E 40 Aluminum 360 gr 100 kg
