Technical Highlights
Body: High-Grade Aluminum.
Connector: M12 x 1.5 Thread.
Ring: Integrated Rubber Ring.
Compatibility: Mechanical Hands.

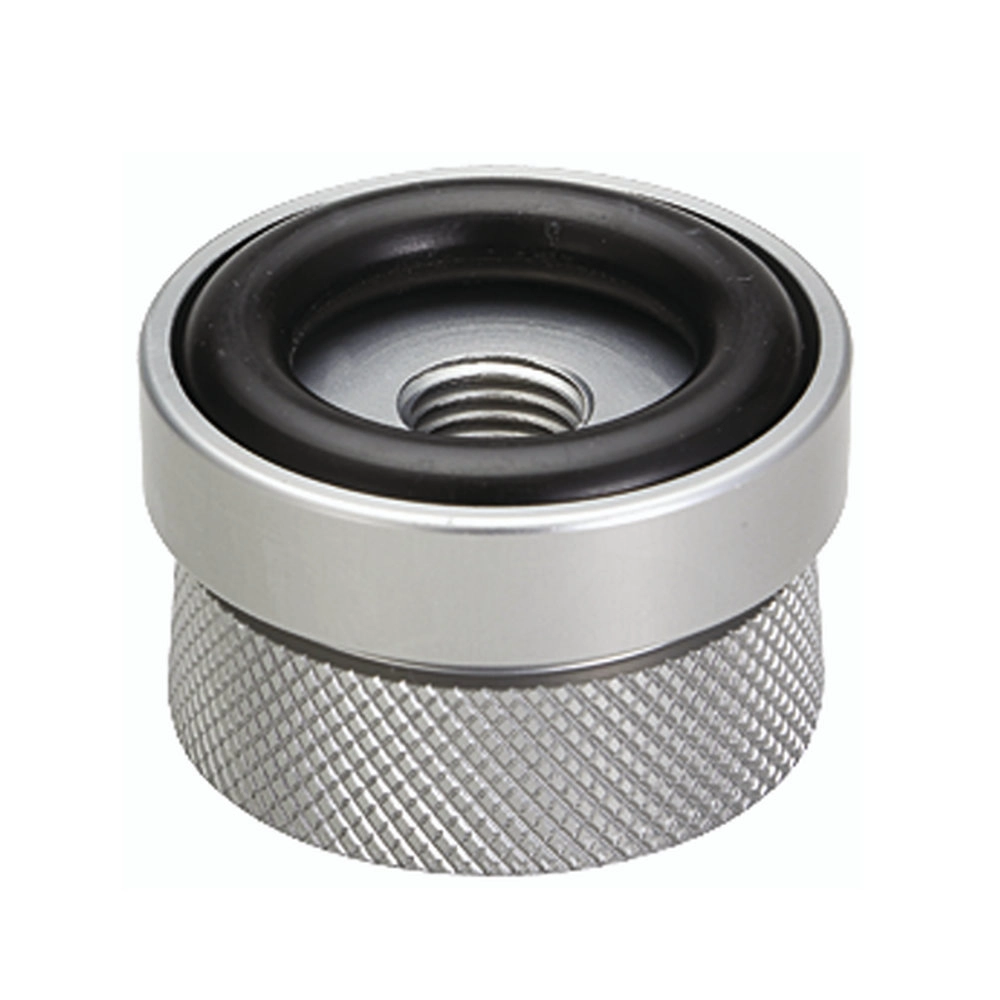

The HD3 Mechanical Wrist is a high-strength prosthetic wrist connector featuring a lightweight aluminum body paired with an integrated rubber ring for optimized performance. Designed specifically to be compatible with mechanical hands, it serves as a critical interface that balances structural rigidity with essential movement control. Utilizing a standard M12 x 1.5 connector thread, it ensures a secure and stable connection between the hand and the prosthetic forearm.
Structural Performance
Lightweight Strength
The aluminum construction provides a high strength-to-weight ratio (weighing only 45-50 gr), significantly reducing the overall distal weight of the prosthesis.
Rubber Friction Control
The rubber ring integrated into the wrist body helps manage friction and provides a secure seat for the prosthetic hand, enhancing rotational stability during use.
Technical Specifications
| Code | Material | Outer Dimension | Weight |
|---|---|---|---|
| HD3-42 | Aluminum | 42 mm | 45 gr |
| HD3-50 | Aluminum | 50 mm | 50 gr |
