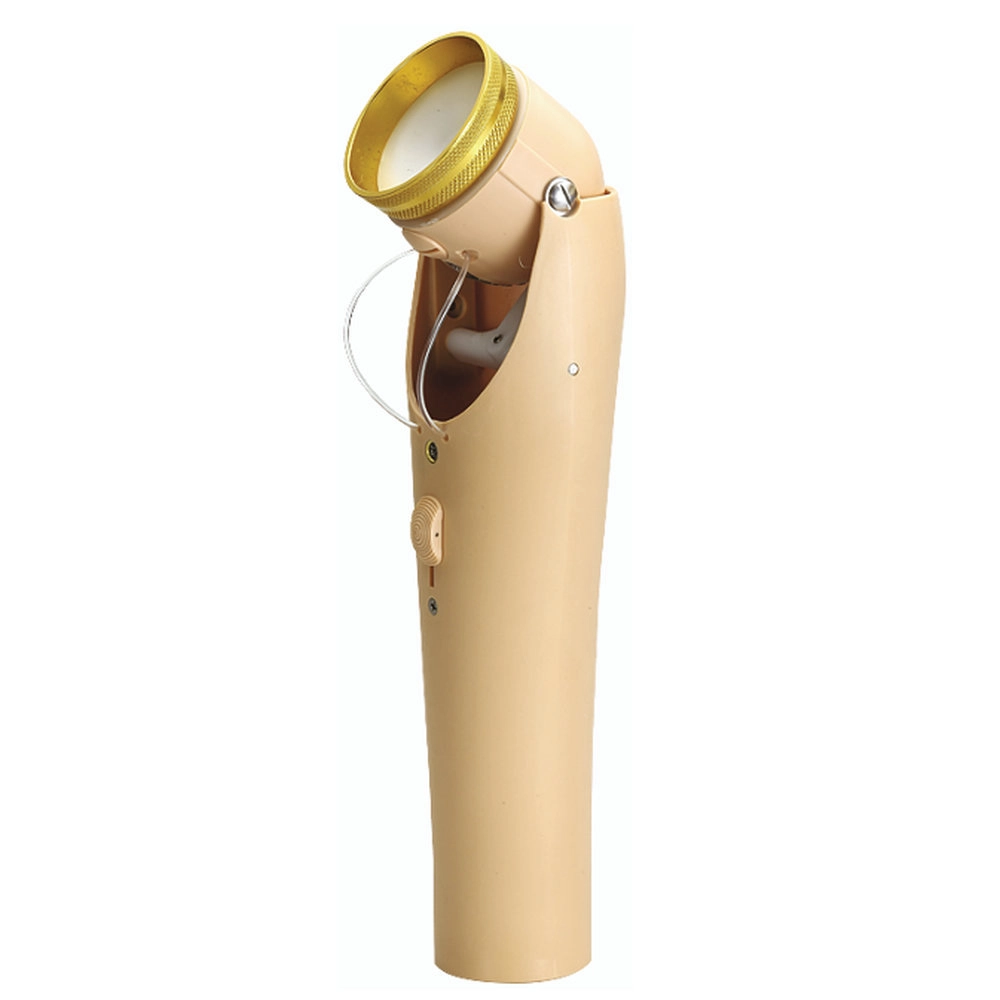

Mechanical Elbow Joint HD6 - Image 1
Click to enlarge

The HD6 Mechanical Elbow Joint is an advanced engineering solution designed for transhumeral prosthetic users who require a high degree of functional precision and anatomical mobility. This prosthetic elbow with rotation incorporates an integrated locking mechanism and a specialized rotation joint, allowing for natural movement patterns and significantly reduced mechanical load on the shoulder girdle. Engineered for versatility, the HD6 serves as a core component in complex modular upper limb components setups.

Mechanical Elbow Joint HD6


CE

Technical Highlights


  • Locking: Up to 13 Positions.

  • Joint: Upper Arm Rotation Joint.

  • Mechanism: Integrated Locking.

  • Weight: 355 gr.

The Mechanical Elbow Joint HD6 represents an advanced engineering solution for prosthetic users requiring enhanced range of motion and stability. This joint features an integrated locking mechanism offering up to 13 different positions, providing unparalleled precision in arm placement for various complex tasks. Additionally, the inclusion of an upper arm rotation joint allows for natural rotational movement, significantly reducing the mechanical strain on the shoulder and improving the overall ergonomics of the prosthesis.

Advanced Mobility Features


13-Position Control

The high-density locking system provides 13 distinct stages, ensuring the user can find the exact angle needed for both lightweight and moderate-load activities.


Hybrid Construction

By combining precision-machined aluminum internal parts with a durable plastic shell, the HD6 achieves a lightweight profile without compromising structural reliability.

Technical Specifications

CodeMaterialWeightDistal Diameters (ID/OD)
HD6Aluminum Parts / Plastic Shell355 gr50.2 mm / 55 mm
