Home Prosthetic Foot & Modular Adapters 4 Hole Adapter W/Rotating Pyramid
Eccentric 4 Hole Adapter Axial /Diagonal $29.00
Back to products
4 Prong Socket Adapter Large $29.00

4 Hole Adapter W/Rotating Pyramid

$29.00

  • For direct lamination onto BK socket
  • With pyramid hole trough pyramid and lamination anchor
  • Adapter diameter is 72 mm.
Compare
Add to wishlist
SKU: SKU-110-2-1-1-2-1-1-1-1-1-1-1-1-1-1-1-1-1-1 Category: Prosthetic Foot & Modular Adapters
Share:
  • Description
  • Reviews (0)
  • Shipping & Delivery
Description
 Code  Material Weight Weight Limit

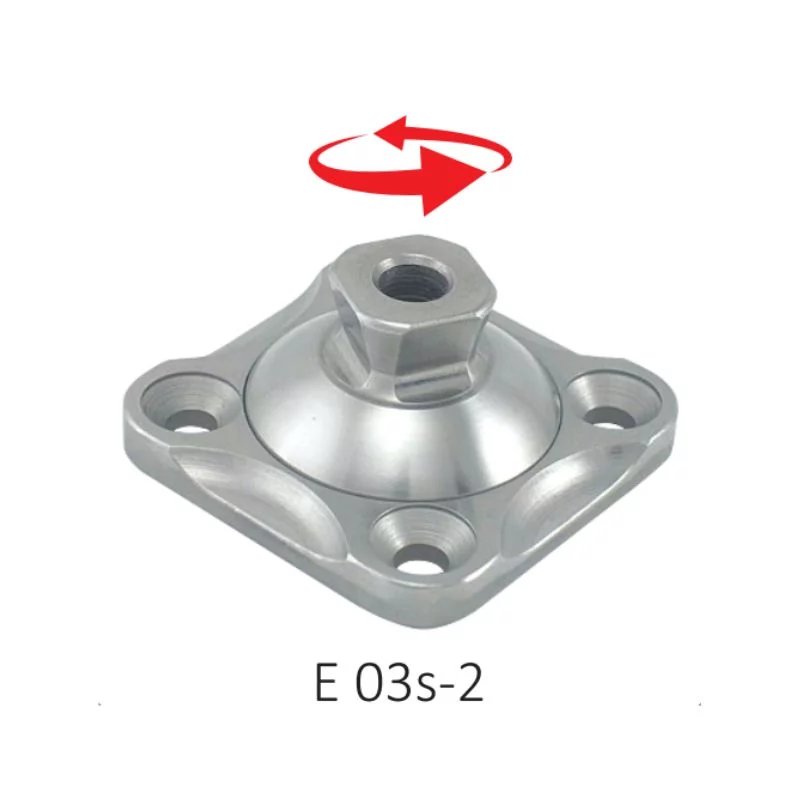

E 03s-2 Stainless Steel 120 gr 125 kg
 Code  Material Weight Weight Limit

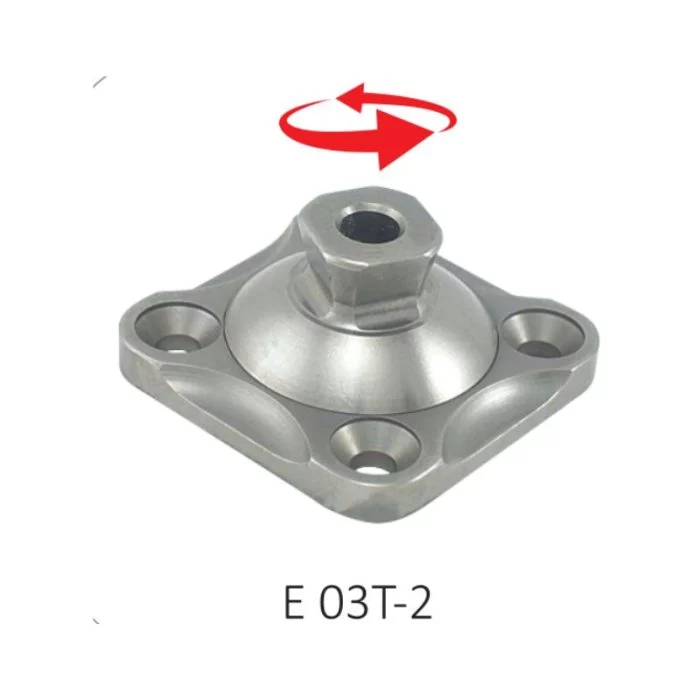

E 03T-2 Titanium 74 gr 125 kg
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “4 Hole Adapter W/Rotating Pyramid” Cancel reply

Your email address will not be published. Required fields are marked *

Shipping & Delivery
