3 And 4 Prong Socket Adapter W/Rotating Receivers

3 and 4 Prong Socket Adapters with Sliding and Rotating Combined

  • These products are the combinations of E35 and E36 series, together with the prong adapters
  • Allows easy adjustment by rotating and sliding at the same time
  • Capable to rotate 360° and slide 11 mm at maximum range
  • Thanks to its short length, allows easy alignment and saves extra space
Compare
Add to wishlist
SKU: SKU-110-2-1-1-1-2-4-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-1-2 Category: Prosthetic Foot & Modular Adapters
Share:
  • Description
  • Shipping & Delivery
Description
 Code  Material Weight Weight Limit
E 35T-3P Titanium / S. Steel 220 gr 100 kg

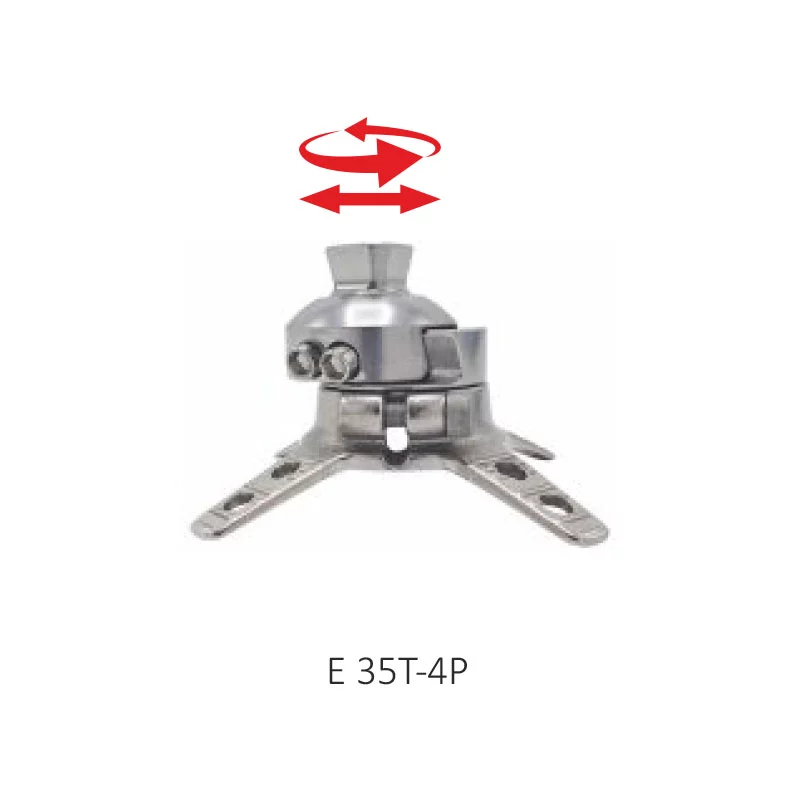

E 35T-4P Titanium / S. Steel 190 gr 100 kg

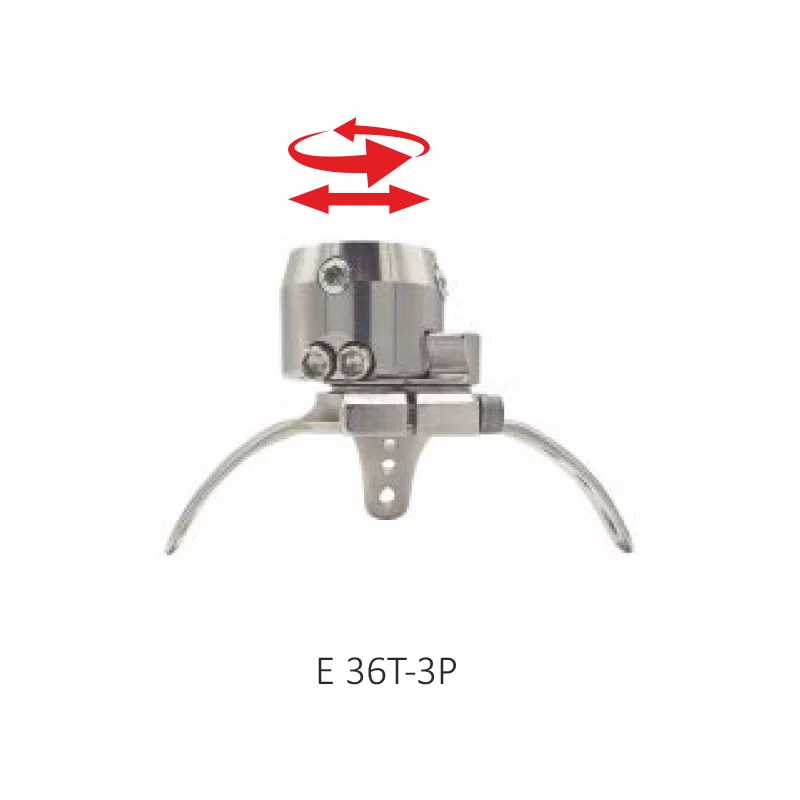

E 36T-3P Titanium / S. Steel 250 gr 100 kg
E 36T-4P Titanium / S. Steel 220 gr 100 kg



 Code  Material Weight Weight Limit
E 35s-3P S. Steel / S. Steel 295 gr 100 Kg
E 35s-4P S. Steel / S. Steel 265 gr 100 Kg
E 36s-3P S. Steel / S. Steel 340 gr 100 Kg
E 36s-4P S. Steel / S. Steel 310 gr 100 Kg
Shipping & Delivery

Related products

Compare

Socket Attachment Blocks

Prosthetic Foot & Modular Adapters
  • The socket aO achment blocks are bonded to the distal end of the prosthetic socket and then laminated together with it. They serve to connect the prosthetic socket to a socket adapter.
  • E 20 Socket AB achment blocks contains “Laminaon Dummy” in the package.
Add to wishlist
Quick view
Compare

Plastic Attachment Blocks

Prosthetic Foot & Modular Adapters
  • Available diameters for Product; 75-80-85-90
  • The socket attachment blocks are bonded to the distal end of the prosthetic socket and then laminated together with it. They serve to connect the prosthetic socket to a socket adapter.
Add to wishlist
Quick view
Compare

Tube Clamp Adapters

Prosthetic Foot & Modular Adapters
  • Standard tube clamp adapters with the height of 47 mm.
  • For the tubes of Dia. 30 mm.
  • M8 Set-Screws are zinc-coated
  • Titanium versions have special “Water Channels” for proper water discharge and contains A2 Stainless Steel Set-Screws
Add to wishlist
Quick view
Compare

Special Tube Clamp Adapters

Prosthetic Foot & Modular Adapters
  • Short type tube clamp adapters with the height of 40 mm.
  • Feature: Mounting height is 14 mm.
  • For the tubes of Dia. 30 mm.
  • M8 Set-Screws are zinc-coated
Add to wishlist
Quick view
Compare

8 Screw Double Adapter

Prosthetic Foot & Modular Adapters
  • Double adapters have pyramid adjustment cores on both sides.
  • M8 adjustment screws are zinc-coated.
  • Under the certain demand, titanium versions can be converted to the Waterproof product with water discharge channels and A2 Stainless Steel set screws.
  • Dual adapter is available in different sizes
Add to wishlist
Quick view
Compare

Diameter 34 Tube Clamp Adapters

Prosthetic Foot & Modular Adapters
  • Tube clamp adapters for Dia. 34 mm Tubes.
  • M8 Set-Screws are zinc-coated
  • Weight limits are 134 Kg.
Add to wishlist
Quick view
Compare

Socket Adapters

Prosthetic Foot & Modular Adapters
  • Lamination anchors are laminated into a prosthetic socket. They serve to connect the prosthetic socket to the distal prosthetic component.
Add to wishlist
Quick view
Compare

Rotatable Receivers

Prosthetic Foot & Modular Adapters
  • The pyramid receiver with threaded connector is avaible as an individual component of lamination anchor
